CRANKSHAFT, PISTON

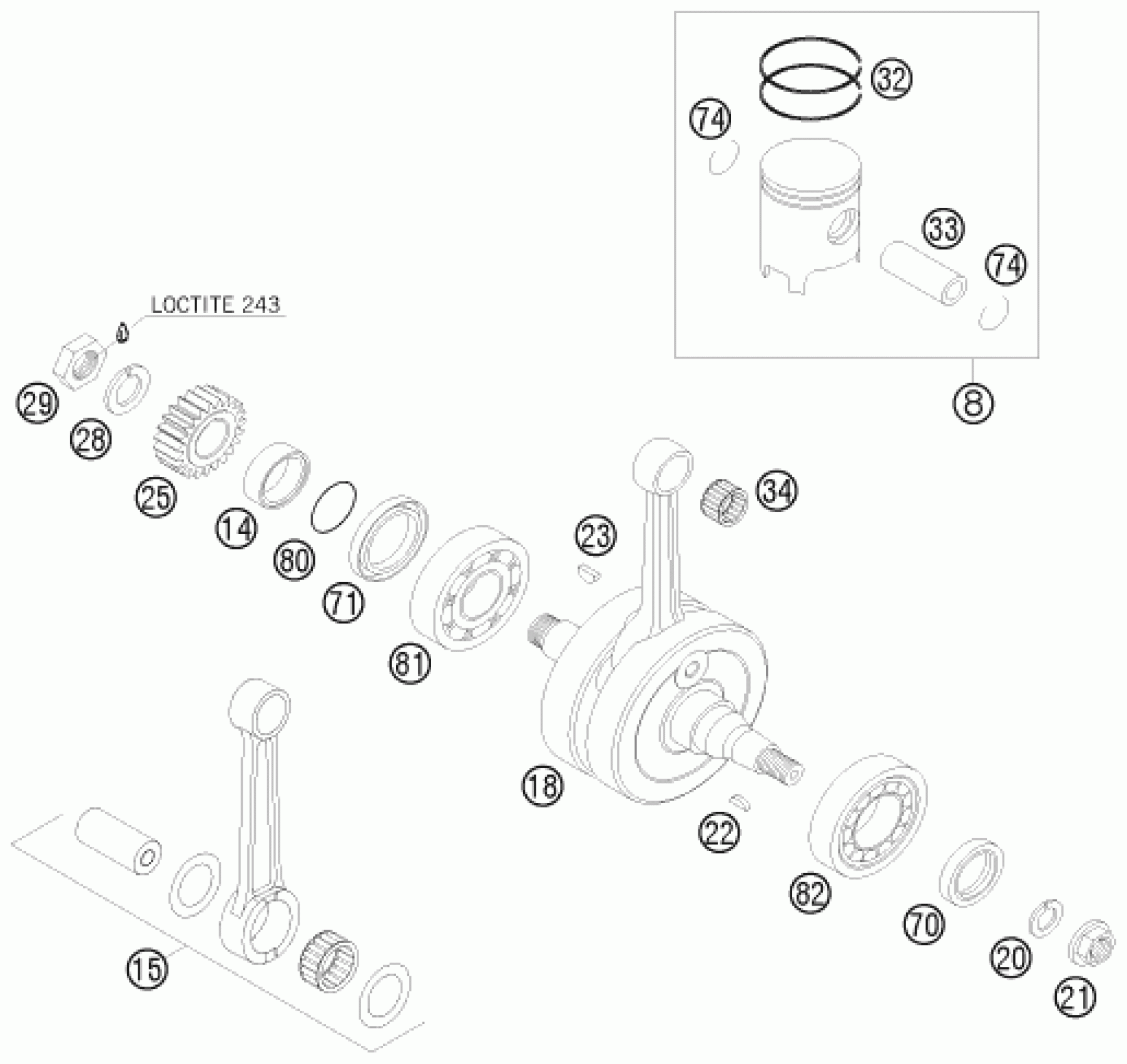

KTM 125 EXC 2010 CRANKSHAFT, PISTON Diagram
#
Description
Price
8
PISTON I CPL. 125 09
50330207000 I
$191.11
8
PISTON II CPL. 125 09
50330207000 II
$191.11
14
SPACER BUSHING 12MM
54633014100
$20.94
15
CON.ROD REPAIR KIT 125'07
50330015100
$368.01
18
CRANKSHAFT CPL. 125 EXC 2007
50330018300
Unavailable
20
LOCKING RING VSK 12
50230029012
$2.05
21
COLLAR NUT M12X1 R/S
49030021000
$2.05
22
WOODRUFF KEY DIN6888-3X5X13
0888030050
$2.05
23
WOODRUFF KEY 5X6,5 HARDED
6946005
$2.05
25
PRIMARY PINION 23-T 125/200 06
50332023123
$77.41
28
LOCKING RING VSK 16
50230029016
$2.05
29
HEXAGON NUT M 16 X 1,5 - L/S
50330029000
$10.00
32
TRAPEZOID RING 125 2008
50330032600
Unavailable
33
PISTON PIN 15X45,2 125 2001
50330033500
$18.78
34
NEEDLE BEARING KBK 15X19X20
51030034000
$25.05
70
SHAFT SEAL RING 25X35X7 BTSL
0760253570
$16.79
71
SHAFT SEAL RING 32X45X6,5 BT
0760324564
$12.33
74
WIRE LOCK RING 15X1
50330074500
$2.05
80
O-RING 25,00X2,00 NBR 70
0770250020
$3.08
81
BALL BEARING 6305 JR2 CS36
0625063055
$43.19
82
CYL.ROLLER BEAR.NJ206 ET2XCS46
50330082000
$83.21
