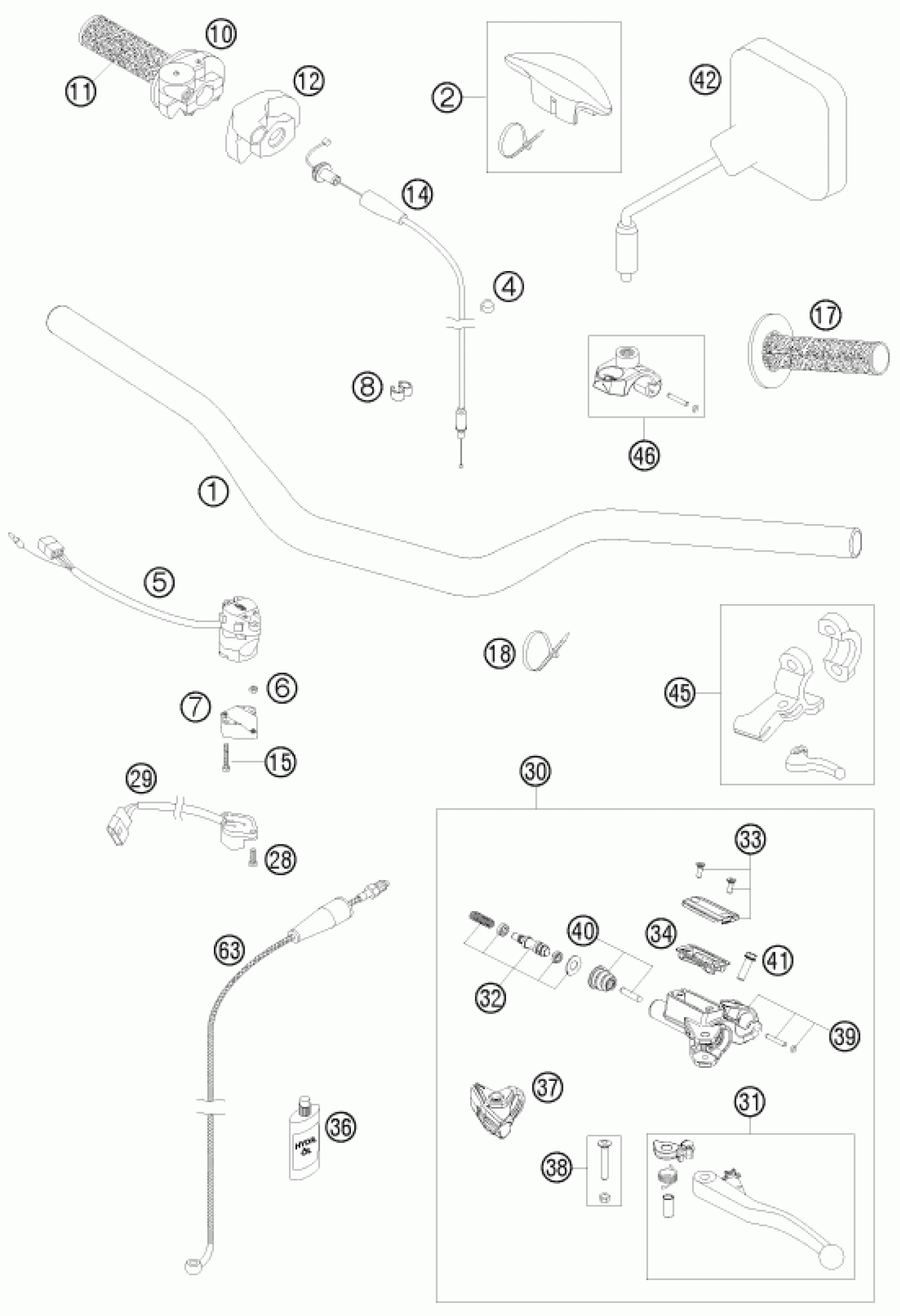

KTM 125 EXC 2009 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

$183.06

2

HANDLEBAR PAD 05

59002002000

Unavailable

4

WIRING HOLDER 12MM

57013072000

$4.11

5

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

6

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

7

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

8

CLIP 5/7 MM 06

60111094000

$3.08

10

TH.TWIST CRIP CPL. W.O.CA. 04

54802010000

$67.31

11

TWIST GRIP COVER RENTHAL 04

54802013000

$22.71

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

15

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

17

FIXED GRIP RENTHAL 04

54802039000

$22.71

18

Cable tie 200/4.6mm black

44011076200

$1.49

28

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

MASTER CYLINDER CPL. 9,5MM 09

50302030300

$350.95

31

CLUTCH LEVER CPL. 2009

50302031300

$45.15

32

REP.KIT PISTON 9,5MM 09

50302032100

$81.15

33

COVER HYDR. CLUTCH CPL. 09

50302033200

$28.14

34

RUBBER FOR RESERVOIR 09

50302034100

$19.16

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

37

MUD CAP 09

50302037100

$36.74

38

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

39

CLAMP + PIN + O-RING 09

50302030250

$53.85

40

PUSH ROD CPL. 09

50302046000

Unavailable

41

HH collar screw M6x16 TX30

0025060166

$3.08

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

45

LEVER F. COLD START ACT. 08

78002050000

Unavailable

63

CLUTCH PIPE L=970MM 04

50332063200

$101.44

46

CLAMP FOR MIRROR CPL. 09

50302044000

Unavailable
