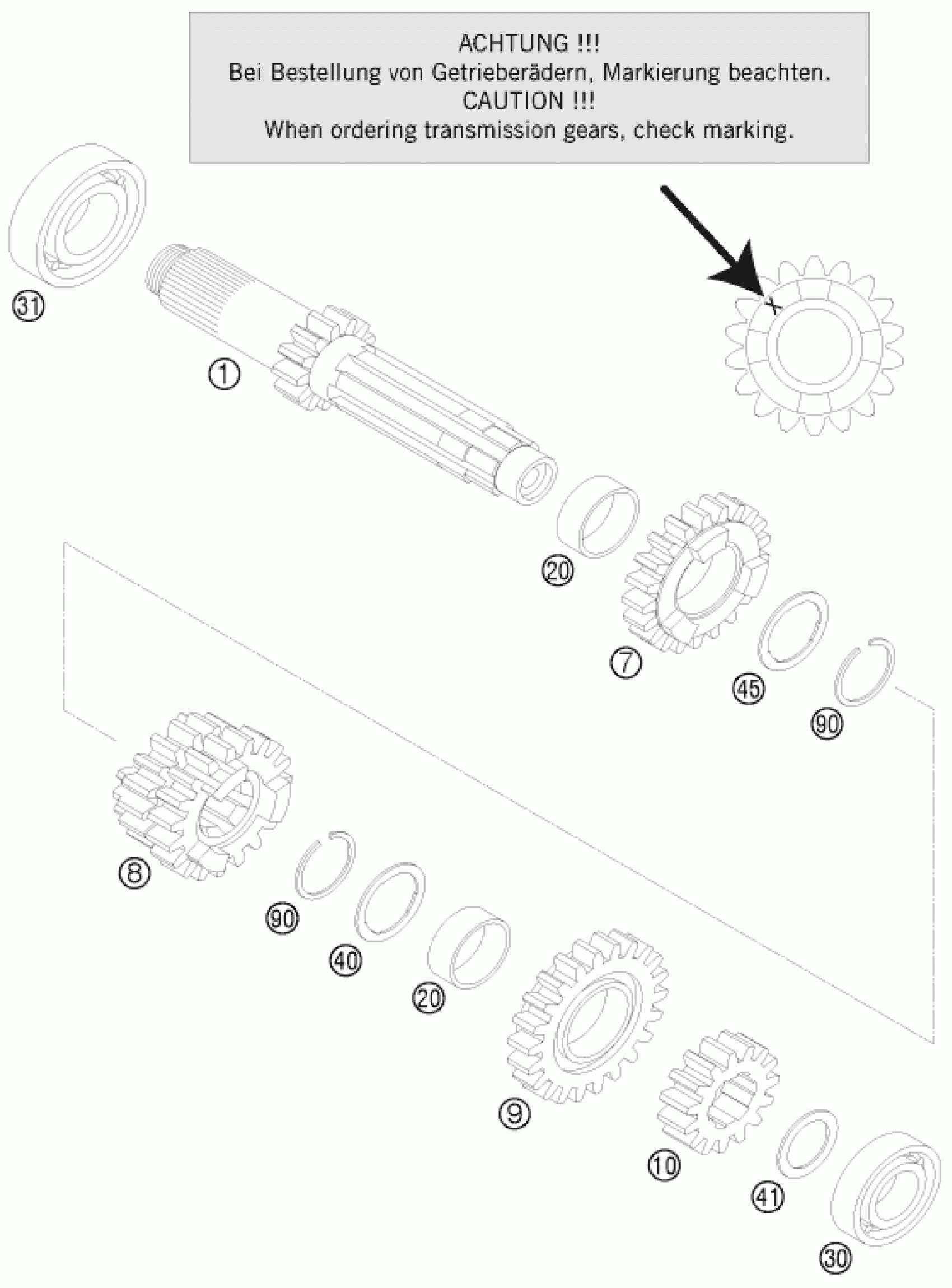

KTM 125 EXC 2008 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT CPL. 12-T '98

50333001144

$208.03

7

IDLER G.5TH G.21-T ''5S21'' '

50333007000

$98.90

8

SLIDING GEAR 3/4.G. 17/19-T 04

50333008100

$157.35

9

IDLER G.6TH G.20-T ''6G20'' '

50333009100

$108.89

10

SOLID GEAR 2ND G.15-T''2S15''

50333010100

$66.10

20

IDLER GEAR BUSH. 22X25X11,1 A

50333020000

$21.40

30

GROOVED BALL B. 16003 C4 J1

0625160031

$20.56

31

BALL BEARING 6004 TN9 C4

0625060042

$16.35

40

STOP DISC 22,2X27,8X1 A

50333040000

$5.23

41

STOP DISC 17,2X26X1 B

50333041000

$3.08

45

STOP DISK 22,2X27,8X1

50333045000

$5.23

90

LOCK RING 22X1,2

50133090000

$2.05
