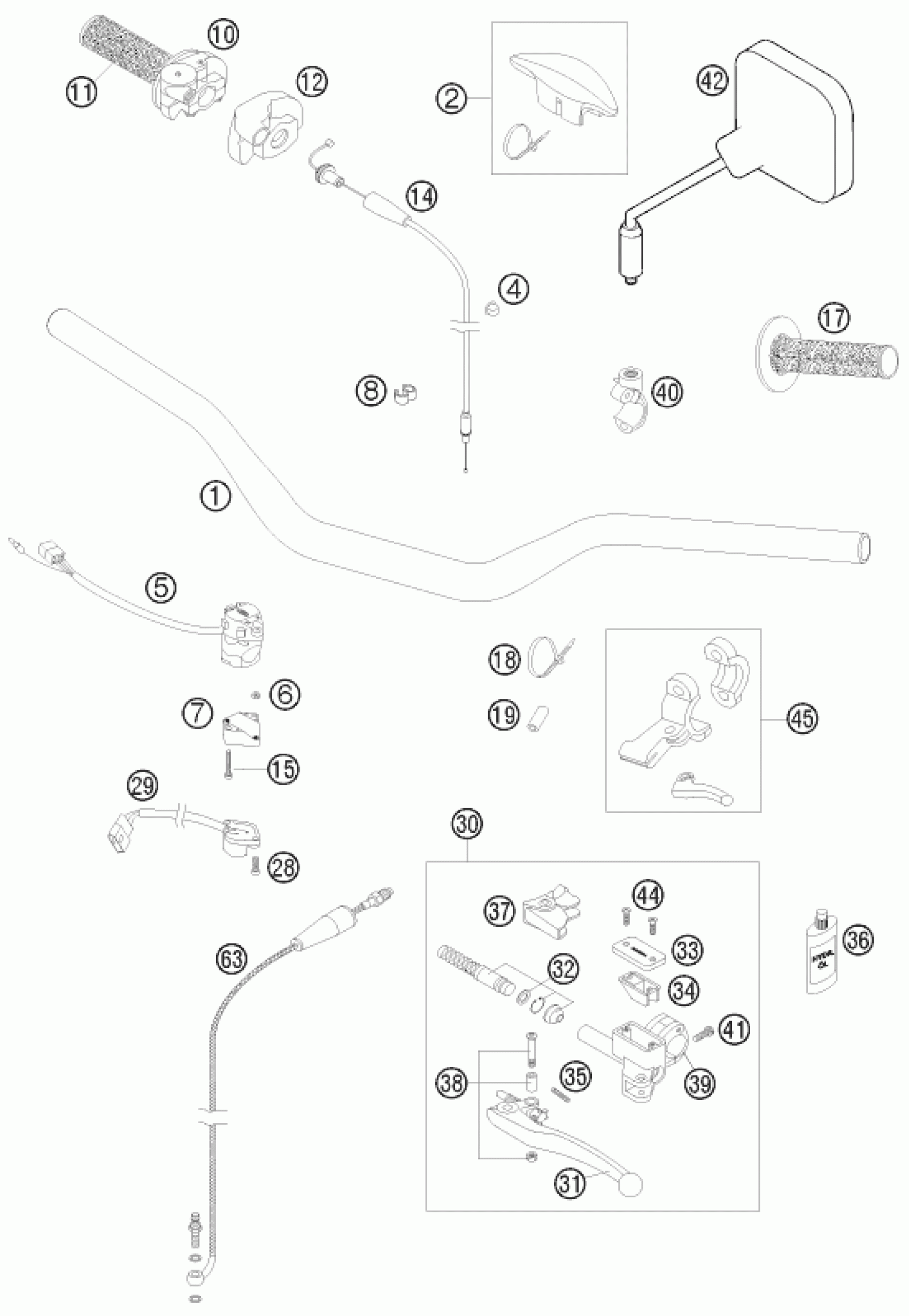

KTM 125 EXC 2008 HANDLEBAR, CONTROLS Diagram

HANDLEBAR PAD 05

59002002000

Unavailable

WIRING HOLDER 12MM

57013072000

$4.11

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

$183.06

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

TH.TWIST CRIP CPL. W.O.CA. 04

54802010000

$67.31

TWIST GRIP COVER RENTHAL 04

54802013000

$22.71

PROTECTION COVER '97

50302020000

$19.16

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

FIXED GRIP RENTHAL 04

54802039000

$22.71

Cable tie 200/4.6mm black

44011076200

$1.49

HOSE 7X11,5X15

78011016015

$3.48

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

FLASHER SWITCH CEV '98

50311029000

$51.98

MASTER CYLINDER CPL. 9,5MM 04

50302030200

$258.54

CLUTCH LEVER SHORT CPL. 2003

54602031000

$39.16

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

$62.71

COVER HYD.CLUTCH 2T 2000

50302033100

$27.76

RUBBER FOR RESERVOIR '98

50302034000

$18.97

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

CLAMP WITH PIN 2000

50302030150

$33.18

CLAMP MIRROR WITH PIN

59002044000

Unavailable

HH collar screw M6x20 TX30

0025060206

$3.08

Rear view mirror left

58012040000

Unavailable

Rear view mirror right

58012140000

Unavailable

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

CLUTCH PIPE L=970MM 04

50332063200

$101.44

CLIP 5/7 MM 06

60111094000

$3.08

LEVER F. COLD START ACT. 08

78002050000

Unavailable
