WIRING HARNESS

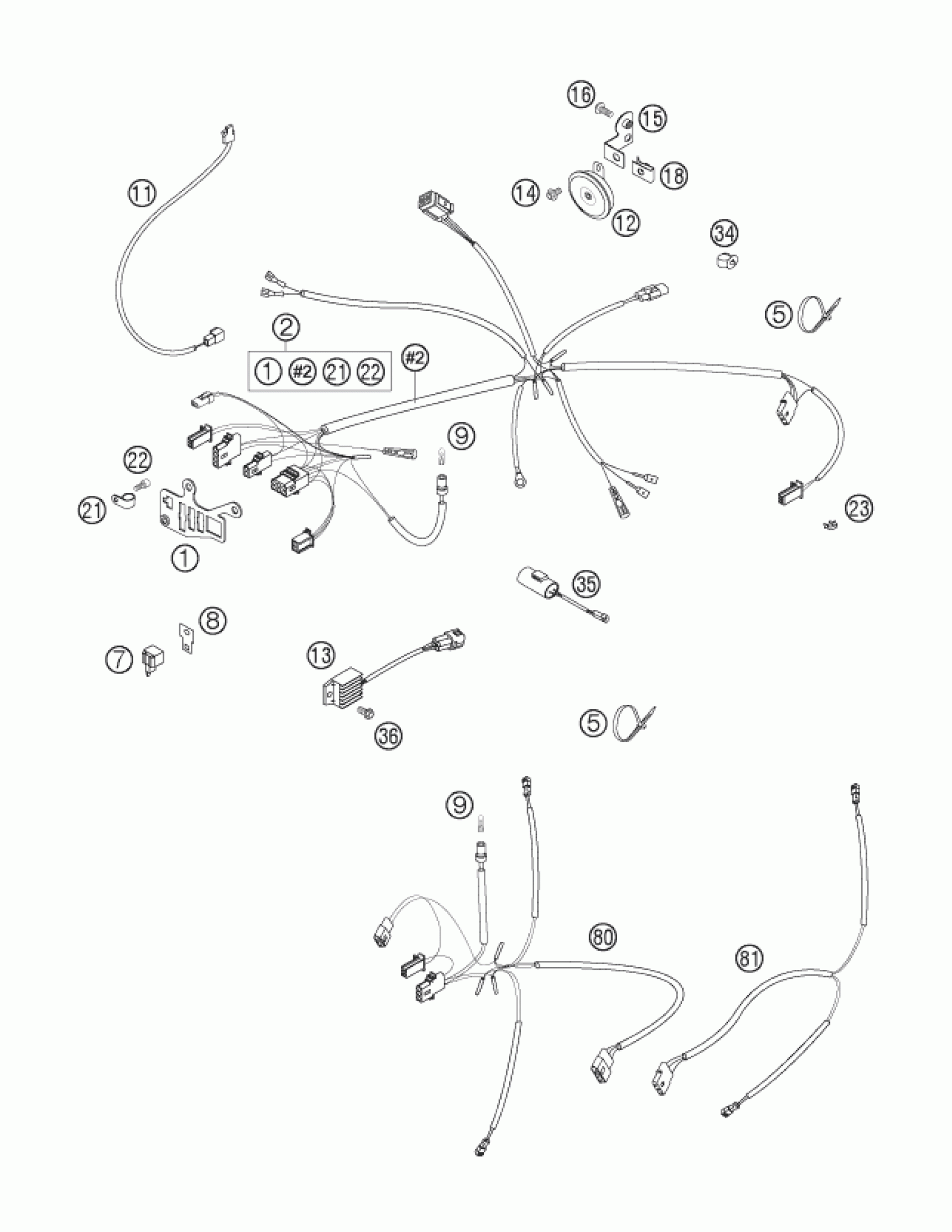

KTM 125 EXC 2007 WIRING HARNESS Diagram
#
Description
Price
5
Cable tie 200/4.6mm black
44011076200
Unavailable
5
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
1
SUPPORT BRACKET EXC 2005
54811083100
$16.82
2
WIRING HARNESS EXC-EU/AUS 06
54811075350
Unavailable
7
FLASHER UNIT 97
44611207200
$49.83
8
BRACKET FOR FLASHER RELAY
58211031100
$5.70
9
BULB 12V 1,2W (W2X4,6D)
49111425000
$2.05
11
BRAKE LIGHT SWITCH FRONT 2002
50311050100
$64.60
12
DC HORN 12V K80/L LEB
50311060000
$32.16
13
VOLTAGE REGULATOR 04
80011034000
$99.57
14
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
15
BRACKET 2001
59011061000
$8.59
16
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
18
clip nut M6
54603048100
$4.11
21
PVC-CLAMP 7/16'' HEYCO 3377
57013070000
$1.49
22
SHCS DIN 912 M5x8
0912050083
$1.49
23
WIRING HOLDER 12MM
57013072000
Unavailable
23
WIRING HOLDER 16MM
57013072100
Unavailable
34
CABLE SUPPORT KHS NR.150-47610
58111076000
$4.11
35
CONDENSATOR 2200MF ADP-48 2000
50311035000
$76.01
36
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
80
FLASH. WIRINGHARNESS FRONT 06
59011080100
Unavailable
81
FLASH. WIRINGHARNESS REAR 06
59011081100
$23.46
