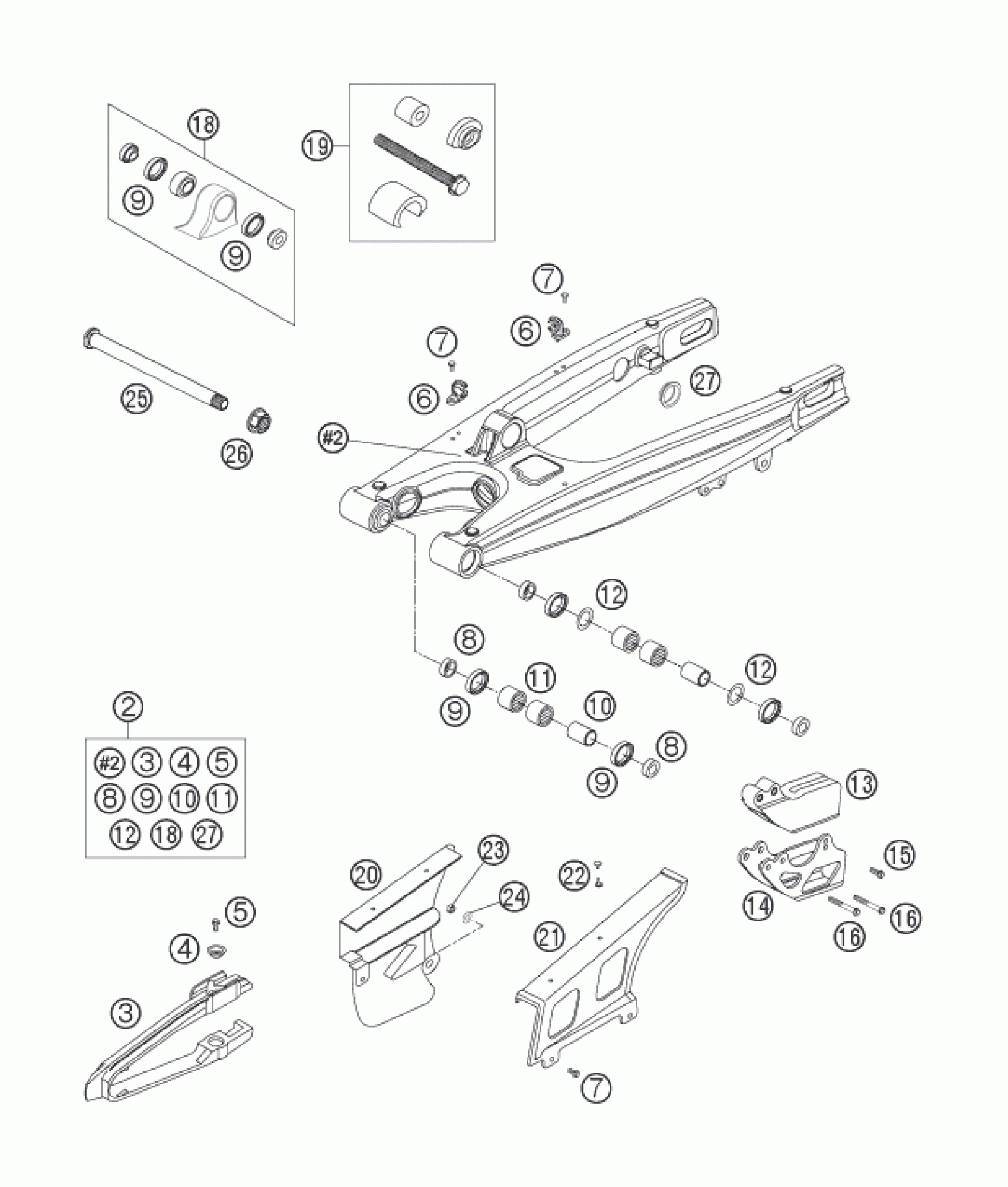

KTM 125 EXC 2006 SWING ARM Diagram

#

Description
Price

4

BUCKET

72210079000

$3.00

2

SWINGARM CPL. 2005

54804230244

$589.37

3

CHAIN GUARD 05

50304066100

$25.52

5

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

6

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

7

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

11

NEEDLE BEARING HK 2216

58033097000

$14.02

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

13

CHAIN GUIDE REAR '94

54607066100

$28.60

14

RETAINING PLATE CPL.

54607070144

$31.41

15

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

16

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

18

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

19

TOOL BEARING MOUNTING PDS

50329000044

$752.92

20

CHAIN GUARD SMALL EXC 2000

50304060100

$9.62

21

CHAIN GUARD LARGE EGS

54607460000

$33.77

22

HOLLOW RIVET TWO PARTS

20012062055

$3.08

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

24

Washer DIN9021-A 6.4

0021060003

$2.05

25

SWINGARM BOLT M16X1,5 03

54804037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

CLOSING COVER ROUND 03

58404041100

$1.49
