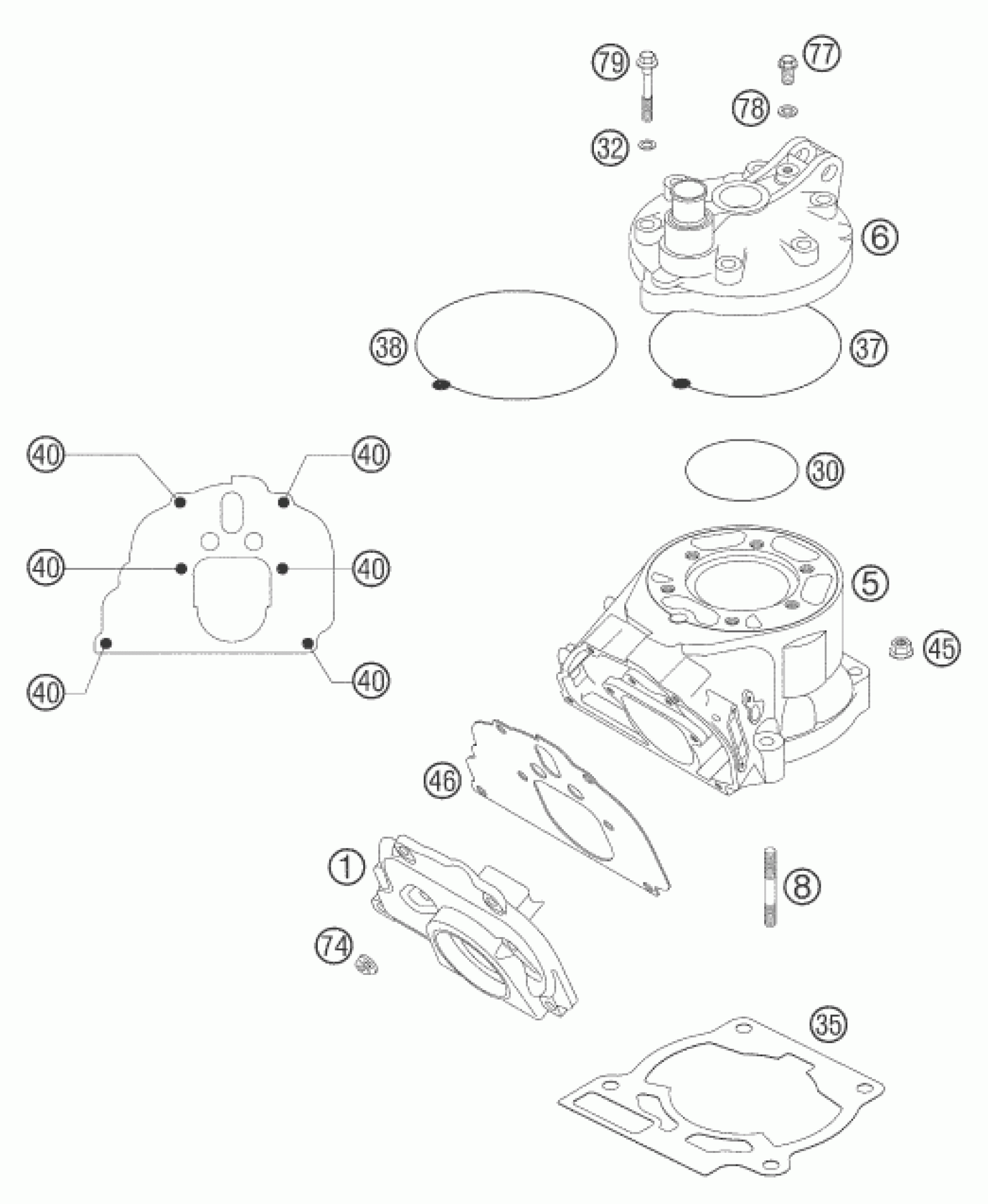

KTM 125 EXC 2005 CYLINDER Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 125 2000

50337001100

$84.57

5

CYLINDER 125 2002

50330005300

$642.44

6

CYLINDER HEAD 125 SX/EXC 2002

50330006400

$118.52

8

STUD DIN0835-M 8X27

0835080273

$3.08

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

35

CYL.BASE GASKET 0,07MM PAPER

50330035007

Unavailable

35

CYLINDER BASE GASKET 0,15MM

50330035015

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

CYL.HEAD SEAL RING 125 2002

50330137000

$12.43

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

45

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

46

INTERMED.GASKET 1,1MM 125 2000

50337046100

$13.60

74

RETAINING PLATE

51005074000

$3.08

77

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

78

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90
