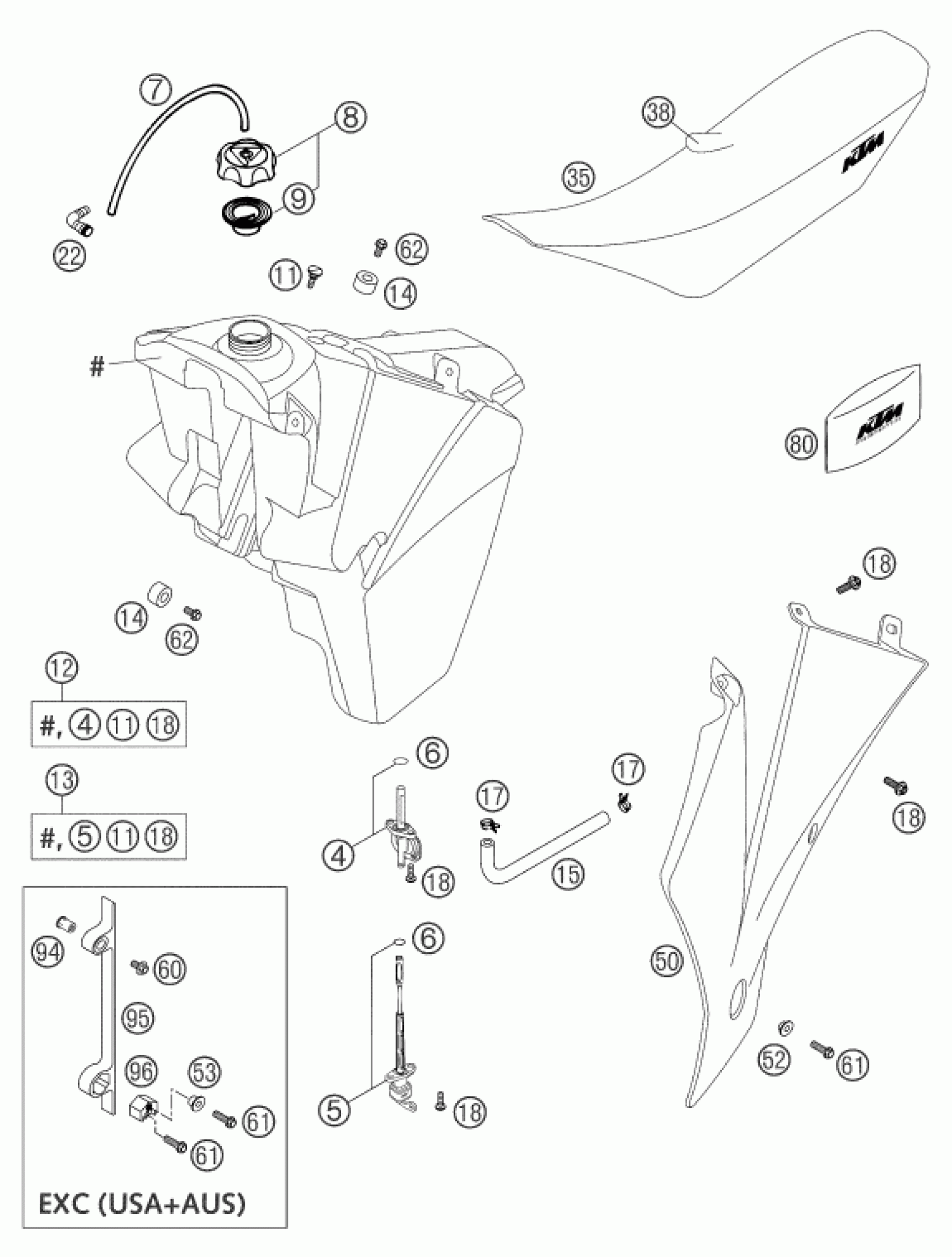

KTM 125 EXC 2004 TANK, SEAT Diagram

#

Description
Price

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

5

GAS COCK ON/OFF/RES 03

54807004000

$32.72

6

O-RING 13,00X2,30

0770130023

$4.11

6

O-RING 11X2 VITON

0770110021

$2.05

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

9

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

11

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

15

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

12

FUEL TANK CPL. 7,5L ORANGE 03

5030711300004

$297.19

12

FUEL TANK CPL. 7,5L ORANGE 03

5480711300004

$296.27

13

FUEL TANK CPL. 11L 03

5030711310044

$213.79

13

FUEL TANK CPL. 9L 03

5030711320044

$236.22

17

CLAMP YDNAC 10128 12MM

58031005000

$3.08

18

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

18

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

35

SEAT BLACK WITH KTM-LOGO 03

54807040000

$151.37

35

% SEAT HIGH

54807040100

Unavailable

38

SEAT COVER BLACK 03

54807040050

$51.04

50

SPOILER L/S ORANGE SX 2001

5030815000004

$31.07

50

SPOILER R/S ORANGE SX 2001

5030815100004

$31.07

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

60

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

61

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

80

ORIGINAL EQUIPMENT TOOL KIT

50212100100

Unavailable

94

BLIND RIVET NUT M 6X15,5 STEEL

55003139600

$1.49

95

SPOILER ADAPTER '98

50335095000

$7.46

96

TANK ADAPTER BUSH '98

50335096000

$9.54
