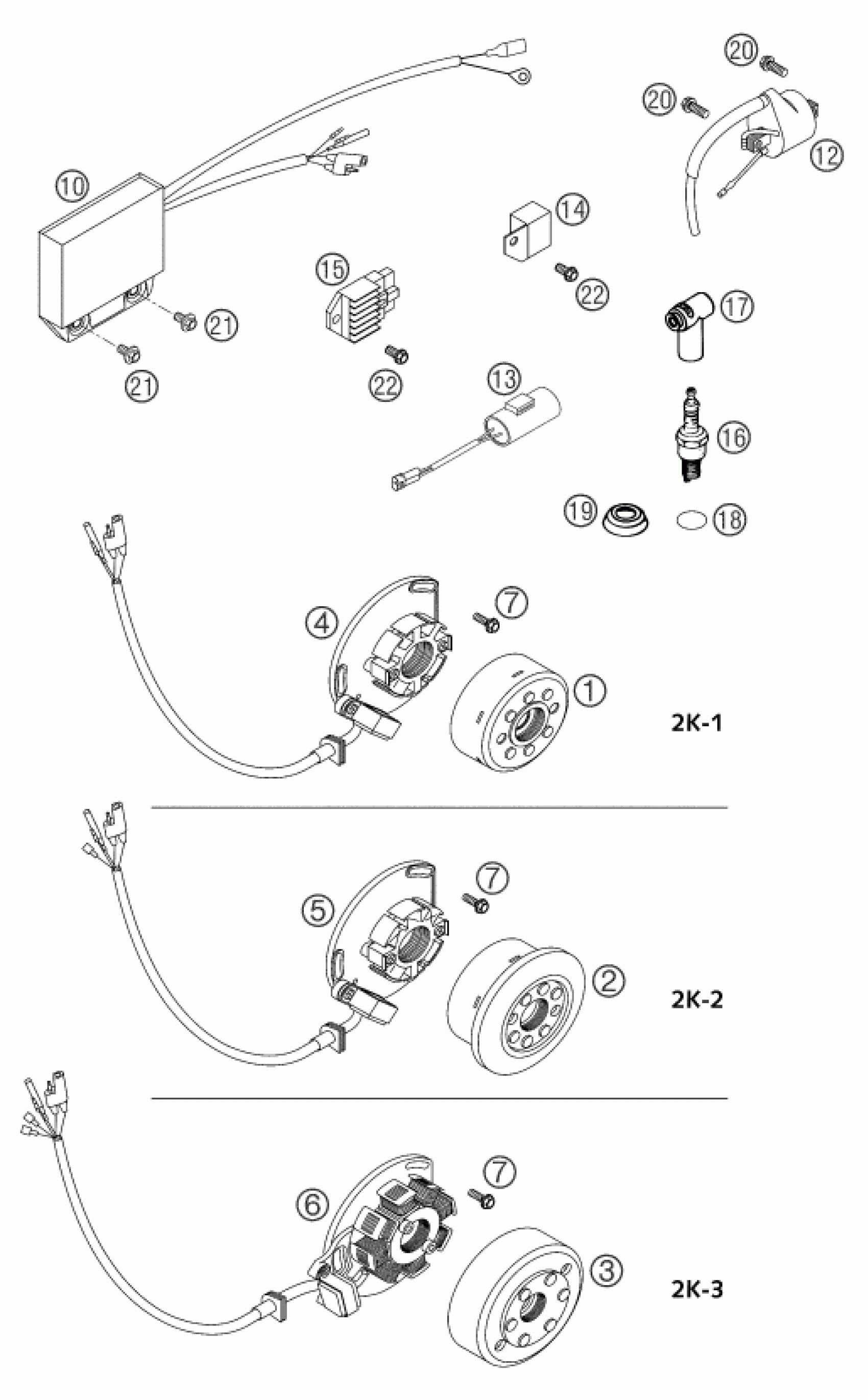

KTM 125 EXC 2004 IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN 2K-1/2K-4 '97

54739005000

$199.80

2

FLYWHEEL KOKUSAN 2K-2 CPL. '97

54739005144

$291.52

3

FLYWHEEL KOKUSAN 2K-3 '98

50339005200

$263.76

4

STATOR KOKUSAN 2K-1 '98

50339004000

$251.51

5

STATOR KOKUSAN 2K-2 '98

50339004100

$303.36

6

STATOR KOKUSAN 2K-3 '98

50339004200

$304.43

7

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

10

USE NEW CDI+ACCESSORIES

50339031400

$198.49

10

CDI UNIT 200 SX 03

52339031500

Unavailable

10

CDI UNIT CU7434 200'99

52339031300

$172.08

12

IGNI.COIL KOKU. IG5127

50339006000

$66.19

13

CONDENSATOR 2200MF ADP-48 2000

50311035000

$76.01

14

VOLTAGE REGULATOR KOKU.EXC USA

54711034000

$85.38

15

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

17

SPARK PLUG CAP LB05EMH N

54531010000

$31.44

18

O-RING 15,00X4,00 NBR 70

0770150040

$2.05

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

16

SPARK PLUG NGK BR 9EVX

50339093100

$17.57

16

SPARK PLUG BR8EG

54331093310

$7.56

19

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
