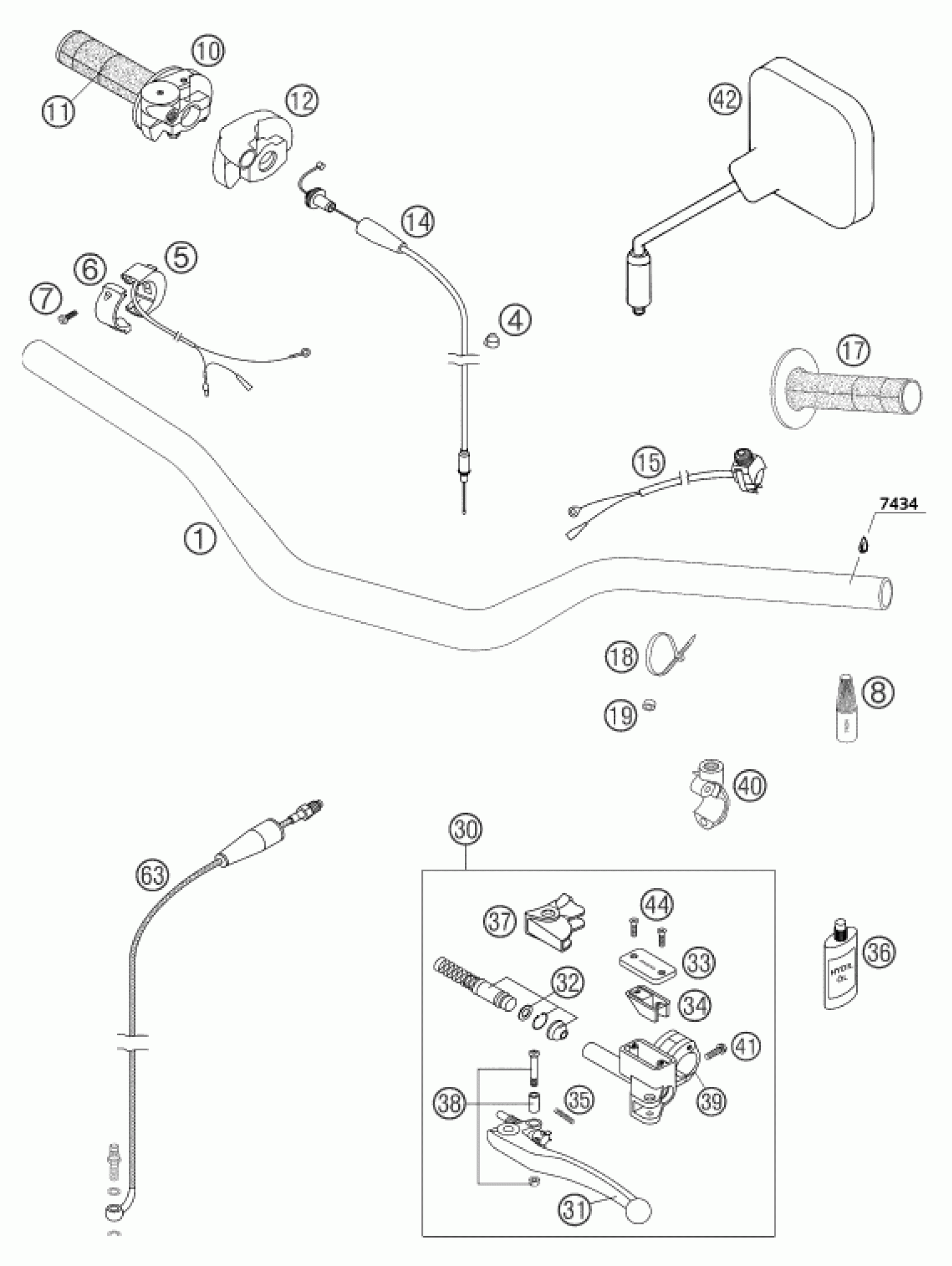

KTM 125 EXC 2004 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM HIGH 04

54802001100

$183.06

4

WIRING HOLDER 12MM

57013072000

$4.11

5

ENGINE STOP SWITCH CEV

50311074000

$52.16

6

CLAMP ENGINE STOP SWITCH

50311074050

$3.08

7

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

8

GRIP GLUE

6899792

Unavailable

10

TH.TWIST CRIP CPL. W.O.CA. 04

54802010000

$67.31

11

TWIST GRIP COVER RENTHAL 04

54802013000

$22.71

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

15

Kill switch

50311089200

$37.58

19

SPACER BUSHING 6X10X5

50301089000

$2.05

30

MASTER CYLINDER CPL. 9,5MM 04

50302030200

$258.54

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

$39.16

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

$62.71

33

COVER HYD.CLUTCH 2T 2000

50302033100

$27.76

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

40

CLAMP MIRROR WITH PIN

59002044000

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

39

CLAMP WITH PIN 2000

50302030150

$33.18

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

63

CLUTCH PIPE L=970MM 04

50332063200

$101.44

17

FIXED GRIP RENTHAL 04

54802039000

$22.71

18

Cable tie 200/4.6mm black

44011076200

$1.49
