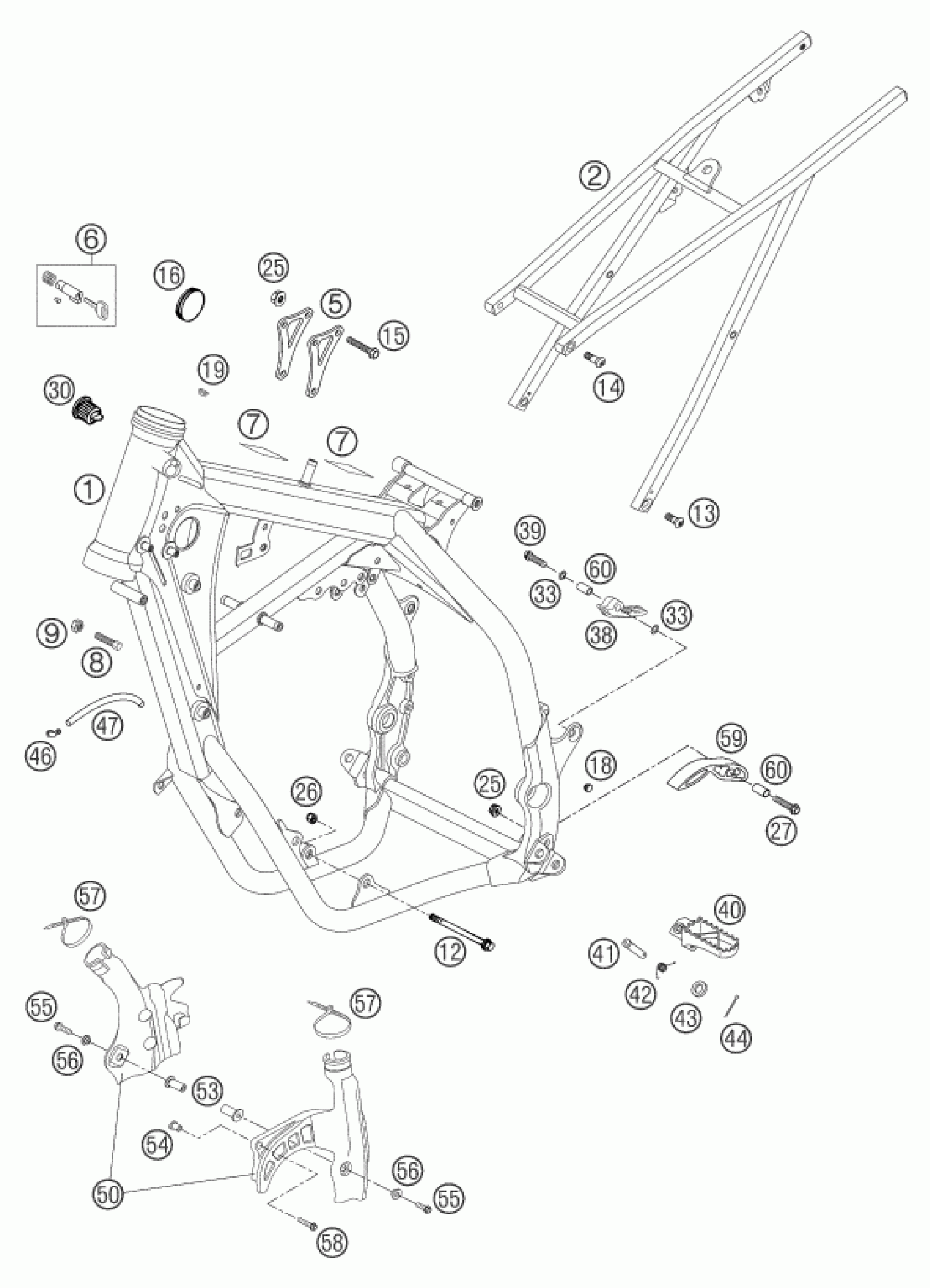

KTM 125 EXC 2004 FRAME Diagram

#

Description
Price

1

FRAME 125/200 SX ''A4''

5030300150096

Unavailable

1

FRAME 125/200 EXC-USA "C4" 04

5030300160096

Unavailable

1

FRAME 125/200 EXC-EU ''B4''

5030300170096

Unavailable

2

SUB FRAME CPL. 125 SX ''D4''

50303002244

$300.00

2

SUB FRAME CPL.200/250SX ''E3''

54803002044

$336.77

2

SUB FRAME CPL.2-ST.EXC ''L3''

54803002144

$316.16

5

REINFORCING BRACKET 125 '98

50303013000

$14.15

5

REINFORCING BRACKET 200 '98

52303013000

$15.68

6

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

PLUG 37MM

54606004000

$2.05

18

PLASTIC CAP SFL10

54403135000

$2.05

19

PLUG

36111021000

$1.49

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

30

PLASTIC CAP

42007049000

Unavailable

33

LOCK WASHER 8MM

36003014000

$2.05

38

CHAIN SLIDING PIECE 03

54804067000

$5.23

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

FRAME PROTECTION SET 03

54803094000

$14.10

53

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

54

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

55

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

56

Bush f. frame protection 03

54803092060

$4.11

57

Cable tie 200/4.6mm black

44011076200

$1.49

58

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

59

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

60

BUSHING 8,2X10X20

51103053051

$4.11
