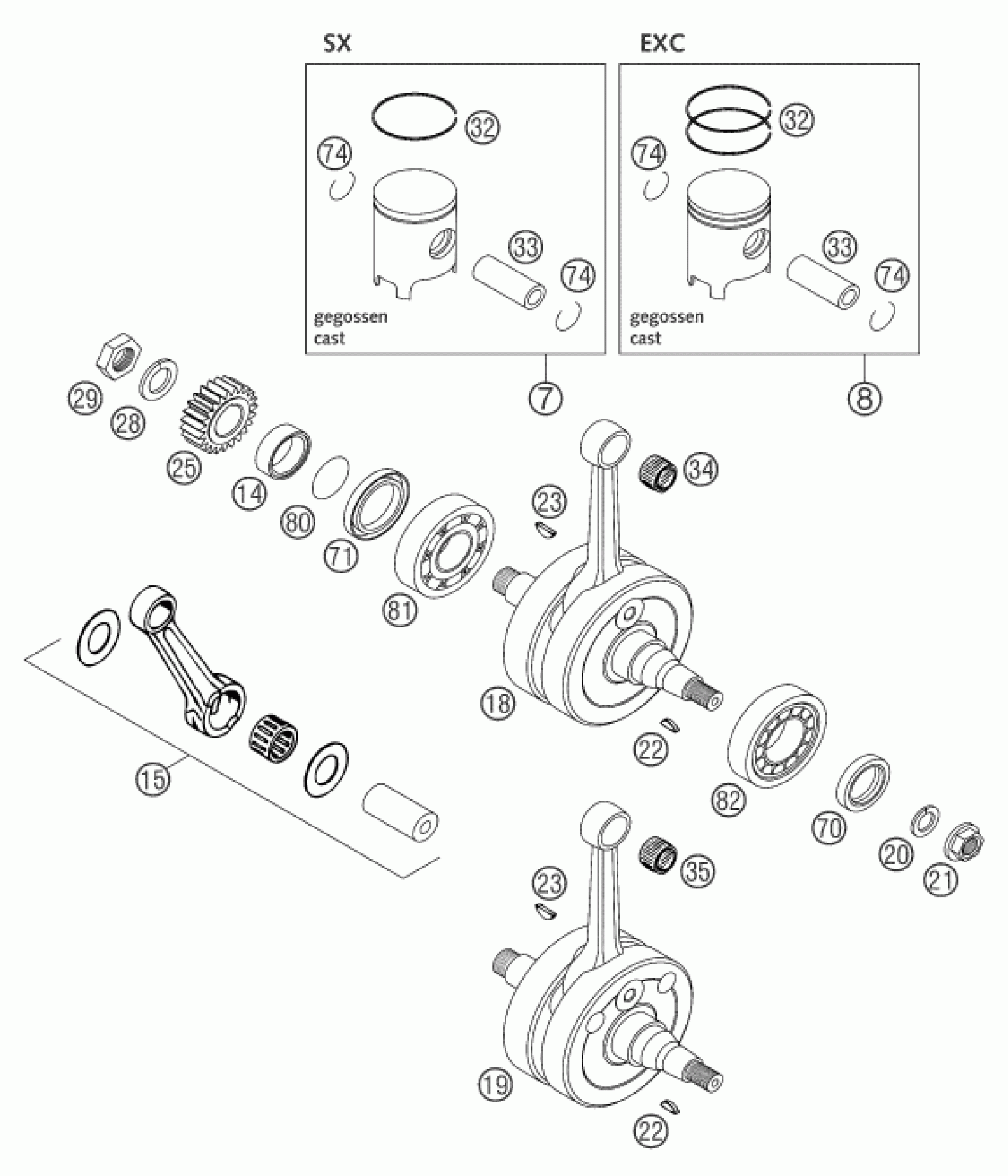

KTM 125 EXC 2004 CRANKSHAFT, PISTON Diagram

#

Description
Price

7

PISTON I CPL. 54MM 125 2001

50330007500 I

$191.11

7

PISTON II CPL. 54MM 125 2001

50330007500 II

$191.11

7

PISTON I CPL. 64MM 200 2004

52330007400 I

$161.70

7

PISTON II CPL. 64MM 200 2004

52330007400 II

$149.72

8

PISTON I CPL. 54MM 125 '00

50330007400 I

$191.11

8

PISTON II CPL. 54MM 125 '00

50330007400 II

$191.11

8

PISTON I CPL. 64MM 200 2004

52330007300 I

$249.73

8

PISTON II CPL. 64MM 200 2004

52330007300 II

$251.13

14

SPACER BUSHING 12MM

54633014100

$20.94

15

CON.ROD REPAIR KIT 125'98

50330015000

$368.01

15

CON.ROD REPAIR KIT 200'98

52330015000

$342.58

18

CRANKSHAFT 125 EXE/EXC 2001

50330018100

$552.39

18

CRANKSHAFT 125 SX 2001

50330018200

$631.40

19

CRANKSHAFT 200 SX,MXC,EXC 03

52330018100

$598.11

20

LOCKING RING VSK 12

50230029012

$2.05

21

COLLAR NUT M12X1 R/S

49030021000

$2.05

22

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

23

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

25

PRIM. PINION 23-T 125/200'98

50332023023

$95.83

28

LOCKING RING VSK 16

50230029016

$2.05

29

HEXAGON NUT M 16 X 1,5 - L/S

50330029000

$10.00

32

SQUARE RING 54X1 125 2001

50330032500

Unavailable

32

SQUARE RING 64X1 200 2002

52330032100

Unavailable

33

PISTON PIN 15X45,2 125 2001

50330033500

$18.78

33

PISTON PIN 11X16X46 200 02

52330033100

$29.35

70

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

34

NEEDLE BEARING KBK 15X19X20

51030034000

$25.05

35

NEEDLE BEARING KV16X20X20 FN

52330034000

$15.89

71

SHAFT SEAL RING 32X45X6,5 BT

0760324564

$12.33

74

WIRE LOCK RING 15X1

50330074500

$2.05

74

WIRE LOCK RING 16X1,2

52330074100

$2.05

80

O-RING 25,00X2,00 NBR 70

0770250020

$3.08

81

BALL BEARING 6305 JR2 CS36

0625063055

$43.19

82

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21
