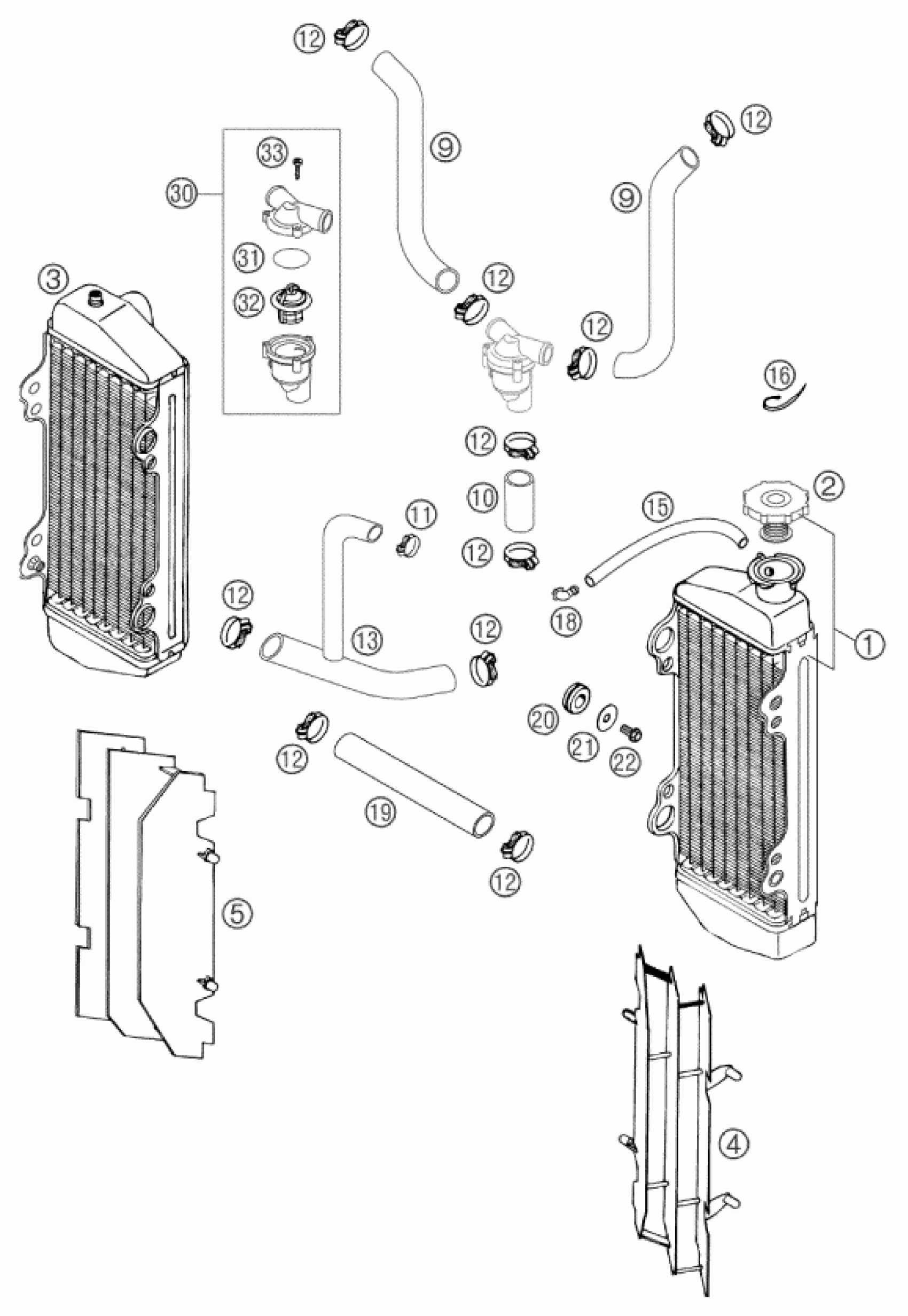

KTM 125 EXC 2003 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S NATURE (45286)98

50335007000

$336.13

2

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

3

RADIATOR R/S NATURE (45285)98

50335008000

$302.31

4

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

5

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

9

RADIATOR HOSE 125/200'99

50335026100

$7.79

10

RADIATOR HOSE 20X26

58335024001

Unavailable

11

HOSE CLAMP GEMI 10-16

58335099000

$4.11

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

PREFORMED HOSE WAPU-RADIATOR

50335027100

$27.71

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

18

ANGLE PIECE '97

50303089000

$5.23

19

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

Washer DIN9021-A 6.4

0021060003

$2.05

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

30

THERMO.CASE CPL.55 DEGREES '99

54735013044

$81.84

31

O-RING 32,00X2,00

0770320020

$2.05

32

THERMOSTAT 55 DEGREES '94

54635017000

$51.00

33

SCREW FOR PLASTIC D=4X18

0016040183

$2.05
