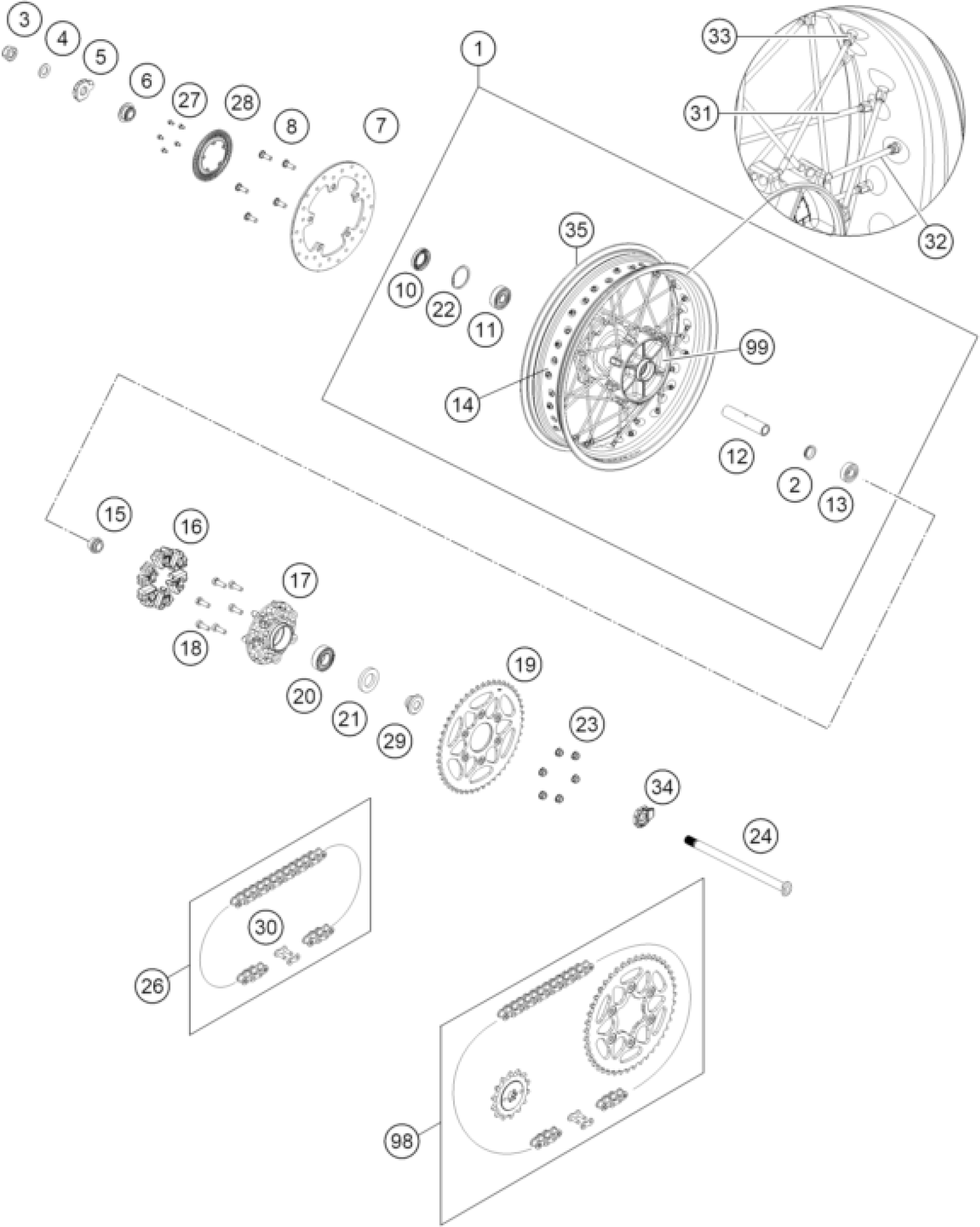

KTM 125 ENDURO R, orange 2025 REAR WHEEL Diagram

#

Description
Price

1

Rear Spoke Wheel Adv R

A60110001044C1

Unavailable

2

SUPPORT SPACER

A61710015000

Unavailable

3

nut rear wheel axle

96310086000

Unavailable

4

washer 17x2.6

J690001700300

Unavailable

5

chain tensioner right

96310084000

Unavailable

6

collar

J800001701700

Unavailable

7

DISC BRAKE DIA 240

96310060000

Unavailable

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

10

SHAFT SEAL RING 30X47X8

J760304708

Unavailable

11

Ball bearing 17x47x14

J410001701400

Unavailable

12

COLLAR

A61710011000

Unavailable

13

Ball bearing

J410001701200

Unavailable

14

BAND RIM

A60110073000

Unavailable

15

SPACER

A61710016000

Unavailable

16

DAMPER RUBBER REAR WHEEL

90910059000

$4.11

17

Rear sprocket carrier, spoke r

28110050000

$31.78

18

Special screw M8x26 SS

28110053000

$1.49

19

chainring 48T

A60110051048

Unavailable

20

BALL BEARING 6205

J625062050

$14.86

21

SHAFT SEAL RING 29X52X7

J760295207

$5.23

22

CIRCLIP 47X17

J710004717501

Unavailable

23

FLANGED NUT M8X1,25

90510052000

$1.49

24

rear wheel axle

96310085000

Unavailable

26

chain DID 118 roll

76910065118

$128.83

27

BOLT SOCKET M5X0.8

J900000500800

$1.49

28

Sensor wheel, front

94542020000

$20.19

29

Rear wheel bushing

96310011000

Unavailable

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

31

SPOKE

A60110071193

Unavailable

32

SPOKE

A60110071185

Unavailable

33

Spoke nipple M5x0.8

28510072100

$2.05

34

chain tensioner left

96310083000

Unavailable

35

RIM WHEEL REAR 2.50X18

A60110070000

Unavailable

99

HUB ASSEMBLY REAR

A61710010000C1

Unavailable

98

Drivetrain set 14Z/48Z

SPA2142483K118B

Unavailable
