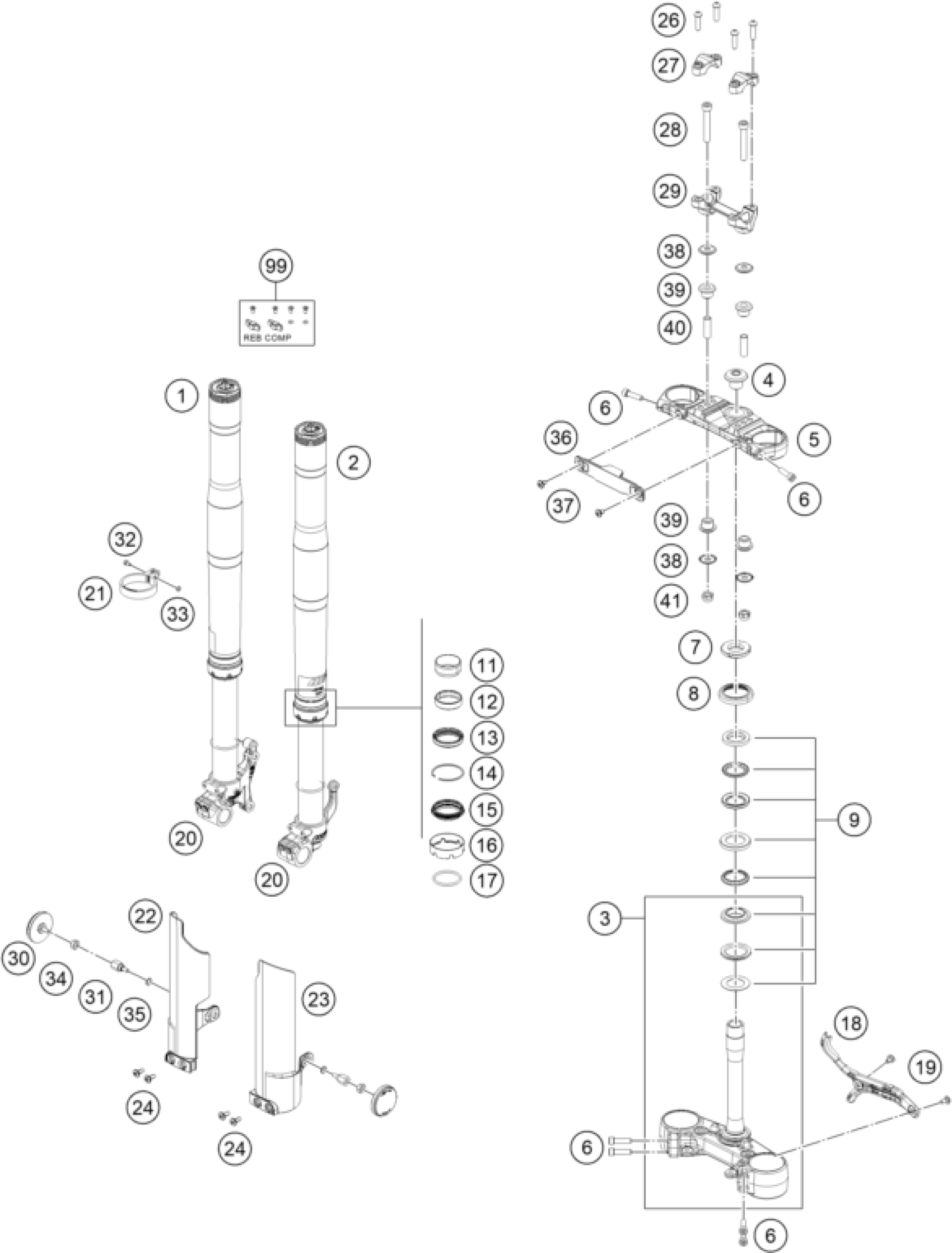

KTM 125 ENDURO R, orange 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

LEG ASSEMBLY RH

A603R142Y201102

Unavailable

2

LEG ASSEMBLY LH

A603L142Y201102

Unavailable

3

ADV MY25 BKT ASSEMBLY UNDER (J

A60101132028C1

Unavailable

4

screw socket M22x1.5

J900002202000

Unavailable

5

BRACKET UPPER

A60101134028C1

Unavailable

6

AH SCREW M8X1.25X30

90501045000

Unavailable

7

Adjusting ring steering head

90101036100

Unavailable

8

protection cap

90101086000

Unavailable

9

STEERING HEAD BEARING-KIT

90101080044

Unavailable

11

GUIDE BUSH UPPER

43578016

Unavailable

12

GUIDE BUSH LOWER

43578014

Unavailable

13

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

14

CIRCLIP

43578044

Unavailable

15

Dirt scarper SKF 43mm black

43570624

Unavailable

16

Fork protection ring d43

43578206

Unavailable

17

O-ring 40x2,5 VMQ70 red ISO 36

43578219

Unavailable

18

GUIDE CABLE

A60113025000

Unavailable

19

Screw M6X1X9

93008020060

Unavailable

20

bolt socket M8x1.25

J900000802503

Unavailable

21

CLAMP HOSE

A60101085000

Unavailable

22

Fork protector right

A60301093000EBA

Unavailable

23

Fork protector left

A60301092000EBA

Unavailable

24

screw socket step M6x1

J900000601501

Unavailable

26

Button head screw w.hex socket

J900000802900

Unavailable

27

handleholder upper

A60301038000C1

Unavailable

30

Side reflector

94512082000

Unavailable

31

Special screw M6x16.5

J900000601700

Unavailable

34

NUT HEX THICK

J910000600505

Unavailable

35

Washer nylon

93009059000

Unavailable

36

WASHER 10,5X32X2

90101042000

Unavailable

37

RUBBER BUSHING

90101040000

Unavailable

99

Adjuster kit screw cap

RP10021

Unavailable

29

handleholder lower 42 mm

A60301043042C1

Unavailable

40

SPACER TUBE

90101041000

Unavailable

28

AH SCREW M10X1,25X64

J022100643

Unavailable

41

SELF L. NUT M10X1,25 H11 WS17

J982101253

Unavailable

38

WASHER 10,5X32X2

90101042000

Unavailable

39

RUBBER BUSHING

90101040000

Unavailable

32

bolt flanged M5x0.8

J900000502001

Unavailable

33

nyloc nut-M5x0.8

J982050006

Unavailable
