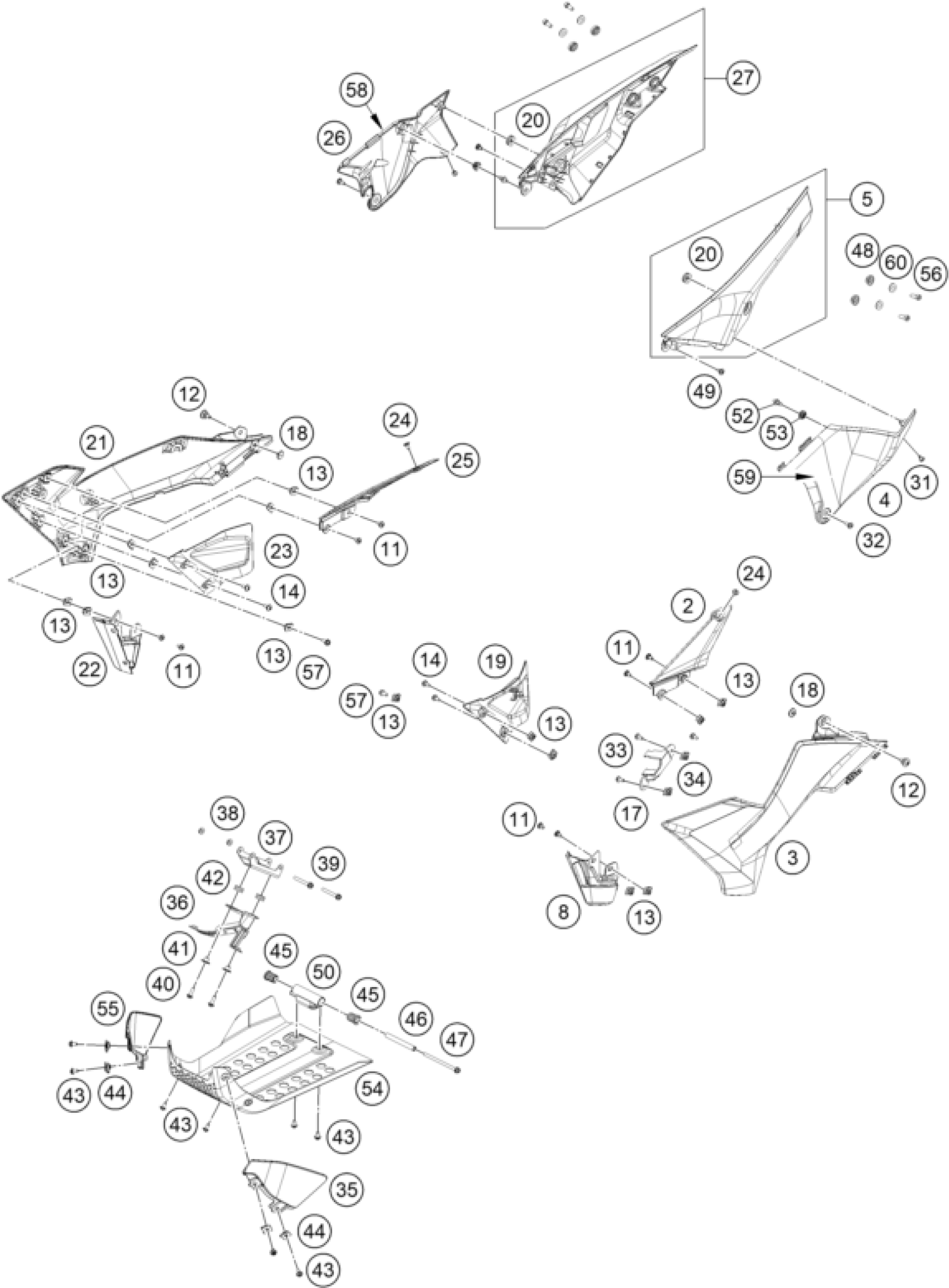

KTM 125 ENDURO R, orange 2025 COVER Diagram

#

Description
Price

2

SPOILER TANK INNER LH

A60308050010

Unavailable

3

Spoiler left END

A60308050000EBB

Unavailable

4

COVER SIDE LH

A60108041000AB

Unavailable

5

ENDURO125 SEATCOWL LH LOWER+UP

A60308019010ABB

Unavailable

8

COVER RADIATOR LH

A60335034000

Unavailable

11

special screw M6x15-8.8-hexago

J900000600904

Unavailable

12

bolt flange-m6x1xl19xbrightxst

J025060196

$5.23

13

Clip nut M6

93003077000

$2.05

14

SCREW BUTTON HEAD STEP M6X1

J900000601404

$1.49

17

BRACKET UNIT CONNECTIVITY

A60308050030

Unavailable

18

DAMPER

J650002000600

Unavailable

19

SPOILER TANK INNER FRONT LH

A60308050020

Unavailable

20

GROMMET

J650002201400

$1.49

21

Spoiler right END

A60308051000EBB

Unavailable

22

Radiator protection right

A60335035000

Unavailable

23

SPOILER TANK INNER FRONT RH

A60308051020

Unavailable

24

Flange bolt M6x11.7

J900000601213

Unavailable

25

SPOILER TANK INNER RH

A60308051010

Unavailable

26

COVER SIDE RH

A60108042000AB

Unavailable

27

ENDURO125 SEATCOWL RH LOWER+UP

A60308019020ABB

Unavailable

31

RIVET

93814050000

$1.49

32

XY

Unavailable

33

SCREW TRUSS M5

J031050146

Unavailable

34

CLIP NUT M5

90108050001

$2.05

35

COVER BELLY PAN LH

A60103090010

Unavailable

36

BRACKET ASSEMBLY BELLY PAN FRO

A60312099010

Unavailable

37

BRACKET BELLY PAN FRONT UPPER

A60312099020

Unavailable

38

Hex collar nut M6

J910000600601

Unavailable

39

BOLT FLANGED M6X1

J900000605007

Unavailable

40

socket screw M6x20

J900000602005

Unavailable

41

distance sleeve

93035065030

$1.49

42

Rubber bushing

93008028050

$1.49

43

Allen head screw M6x12

J900000601206

$1.49

44

Clip nut M6

93003077000

$2.05

45

DAMPER

A61308021040

Unavailable

46

SLEEVE

J800000709000

Unavailable

47

BOLT FLANGED M6X1

J900000610501

Unavailable

48

COLLAR

J800000900800

Unavailable

49

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

50

BRACKET ASSEMBLY BELLY PAN REA

A61308021030

Unavailable

52

PIN QUICK RELEASE

A60107044000

Unavailable

53

Rubber grommet ignition lock c

93011068010

$1.49

54

BELLY PAN

A60103090000

Unavailable

55

COVER BELLY PAN RH

A60103090020

Unavailable

56

Cylinder head screw with ISK M

J900000802202

Unavailable

57

BOLT FLANGED M6X1

J900000601409

Unavailable

60

Washer 17x24x2

J690001720000

Unavailable

59

Sticker, cover left

A60308080000

Unavailable

58

Sticker, cover right

A60308081000

Unavailable
