WIRING HARNESS

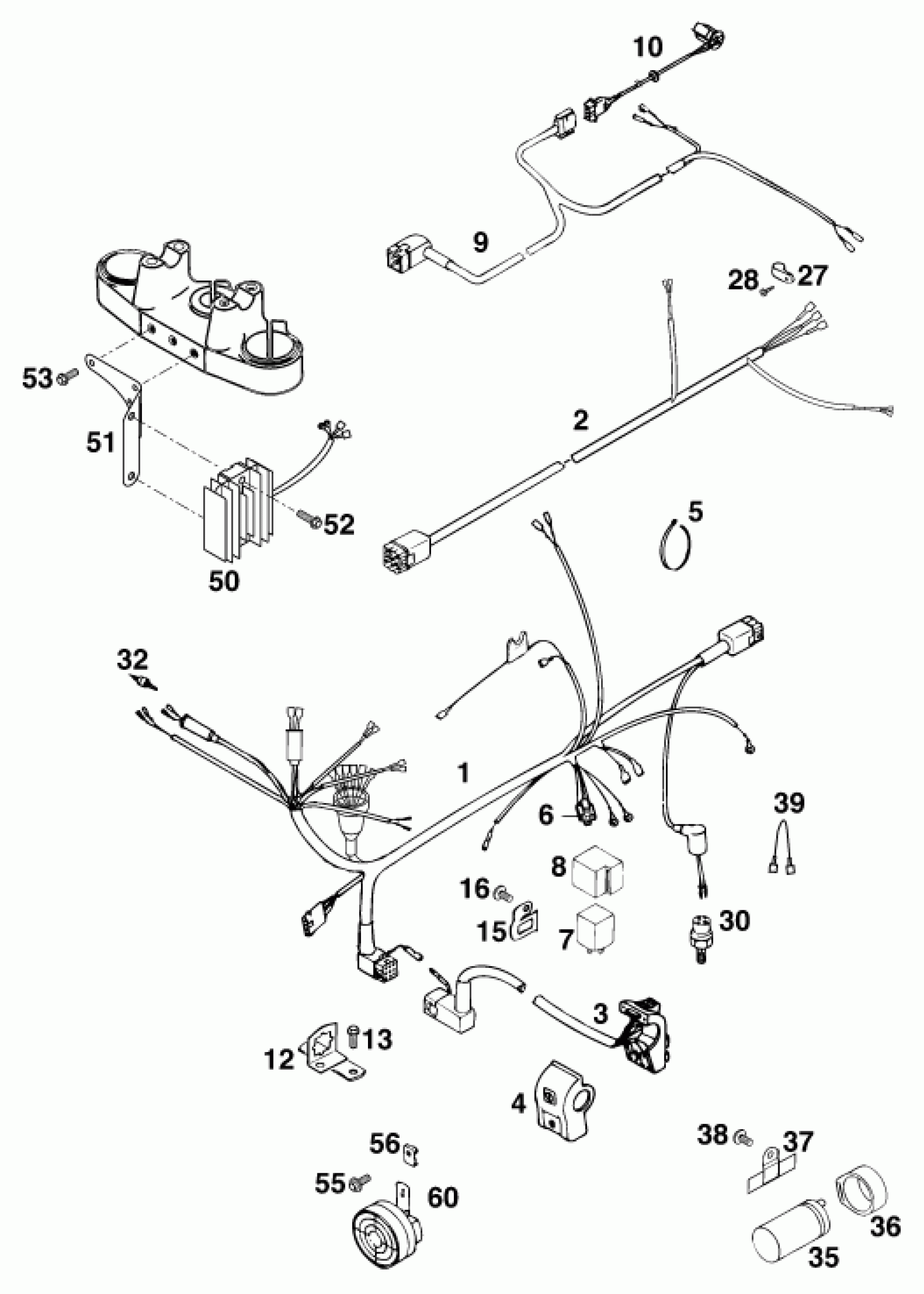

KTM 125 EGS M/Ö <1996 WIRING HARNESS Diagram
#
Description
Price
0
Cable tie 200/4.6mm black
44011076200
Unavailable
0
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
1
MAIN CABLE HARNESS '96
50211475200
Unavailable
2
* CABLE HARNESS REAR PART '93
50211476100
Unavailable
3
HEAD LAMP SWITCH WI.CABLE '9
54611470100
Unavailable
4
SWITCH SUPPORT MERIT
57011070050
Unavailable
5
* CABLE TIE 180MM
44011076180
Unavailable
6
* CABLE CONNECTOR
44111006000
Unavailable
7
* FLASHER UNIT
44611207000
Unavailable
8
* FLASHER LIGHT BRACKET
54511046000
Unavailable
9
CABLE HARNESS REAR EGS ACE
54611277000
Unavailable
10
REAR WIRNING HARNESS '93
58311276000
$41.16
12
BRACKET FOR CONNECTOR '93
54611083100
Unavailable
13
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
15
* RETAINING PLATE
58011031000
Unavailable
16
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
27
PVC-CLAMP 7/16'' HEYCO 3377
57013070000
$1.49
28
SHEET MET.SCR.DIN7981- 4,8X13
0981480133
Unavailable
30
BRAKE LIGHT SWITCH
42013121000
$31.34
32
FRONT BRAKE LIGHT SWITCH
51011050000
$19.91
35
CONDENSATOR 25V, 10.000 MF
49111435100
$57.59
36
CAPACITOR BRACKET
54511048000
$4.33
37
BRACKET FOR CAPACITOR
54611448000
Unavailable
38
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
39
DIODE BRIDGE
50211475251
Unavailable
50
VOLTAGE REGU.SHINDENGEN 12V'96
54611034000
Unavailable
51
REGULATOR RETAINING PLATE '96
54611034160
Unavailable
52
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
53
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
55
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
56
clip nut M6
54603048100
$4.11
60
54511060000
Unavailable
