SWING ARM

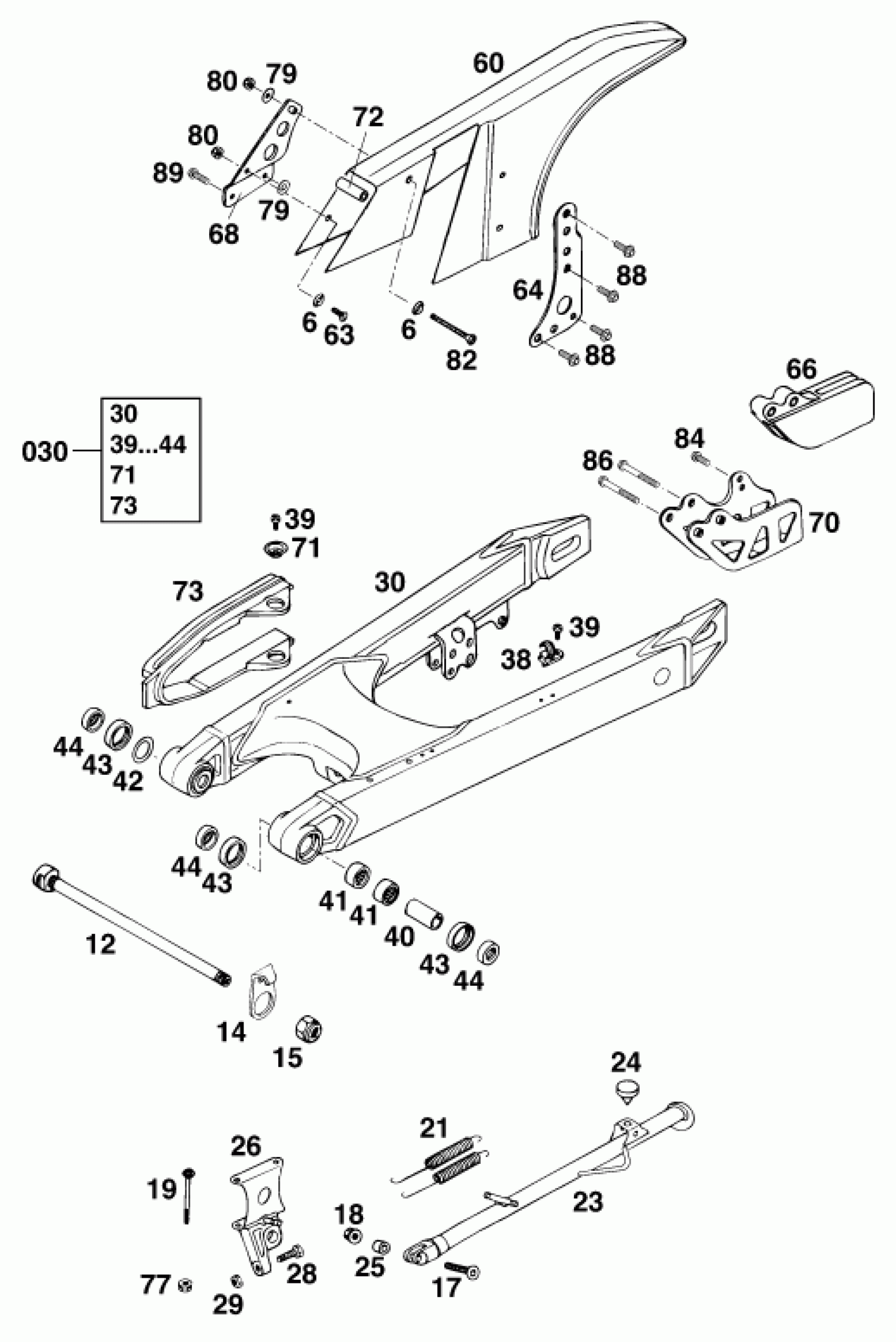

KTM 125 EGS M/Ö <1996 SWING ARM Diagram
#
6
WASHER 6MM
40006006000
Unavailable
12
SWINGARM BOLT '92 L=250 B20
50203014100
Unavailable
14
BRAKE HOSE GUIDE '89
50230211000
$3.98
15
SELF LOCKINGNUT DIN985 M14x1,5
0985141503
$3.08
17
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
$2.61
18
54310086000
Unavailable
19
FLAT HEAD SCREW DIN7991 M6x75
0991060753
$2.67
21
SIDESTAND SPRING LONG
51003021000
$7.00
23
SIDE STAND L=409MM '93
5450302310019
$91.73
24
RUBBER BUFFER
51007069100
$3.48
25
BUSHING 8,2 X 12 X 10
57103225000
$4.11
26
* LEVER HOLDER SIDE STAND '93
5020302610019
Unavailable
28
HH SCREW DIN0933-M 8X25
0933080253
$2.05
29
Hexagon nut DIN934 M8
0934080003
$2.05
30
* SWINGARM LOOSE 560 MM 125 '9
50203030900
Unavailable
30
* SWINGARM CPL. 560 MM 125 '94
50203030944
Unavailable
38
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
$2.05
39
SPECIAL SCREW M 5,0X10
0010050103
$2.05
40
BUSHING SLEEVE 15X20X38,75
50203081700
$17.20
41
NEEDLE BUSH HK 2012
50203097000
$15.51
42
STOP DISK 22,2X31,7X1
54603036000
$3.08
43
radial shaft seal 25x32x7
0760253270
$6.63
44
BUCKET F.SHAFTSEALRING 15X25X9
54603090000
$12.43
60
CHAIN GUARD '87
50207060000
$36.10
63
FLAT HD SCREW DIN963 M6x16
0963060163
Unavailable
64
RETAINING PLATE FOR CHAINGUARD
54407064100
Unavailable
66
CHAIN GUIDE REAR '94
54607066100
$28.60
68
RETAINING PLATE
50207068000
Unavailable
70
RETAINING PLATE CHAIN GUIDE'
50207070000
Unavailable
71
BUCKET
72210079000
$3.00
72
SPACER L=36MM
50107072100
Unavailable
73
* CHAIN SLIDING GUARD '92
50207073000
Unavailable
77
SELF LOCKING NUT M6
56509064000
Unavailable
79
Washer DIN9021-A 6.4
0021060003
Unavailable
80
Self lock. nut DIN985-M6-A2
0985060003
Unavailable
82
* FLAT HEAD SCREW DIN963 M6x55
0963060553
Unavailable
84
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
86
HH COLLAR SCREW M 6X50 WS=8
0015060503
$3.08
88
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
89
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
