REAR WHEEL

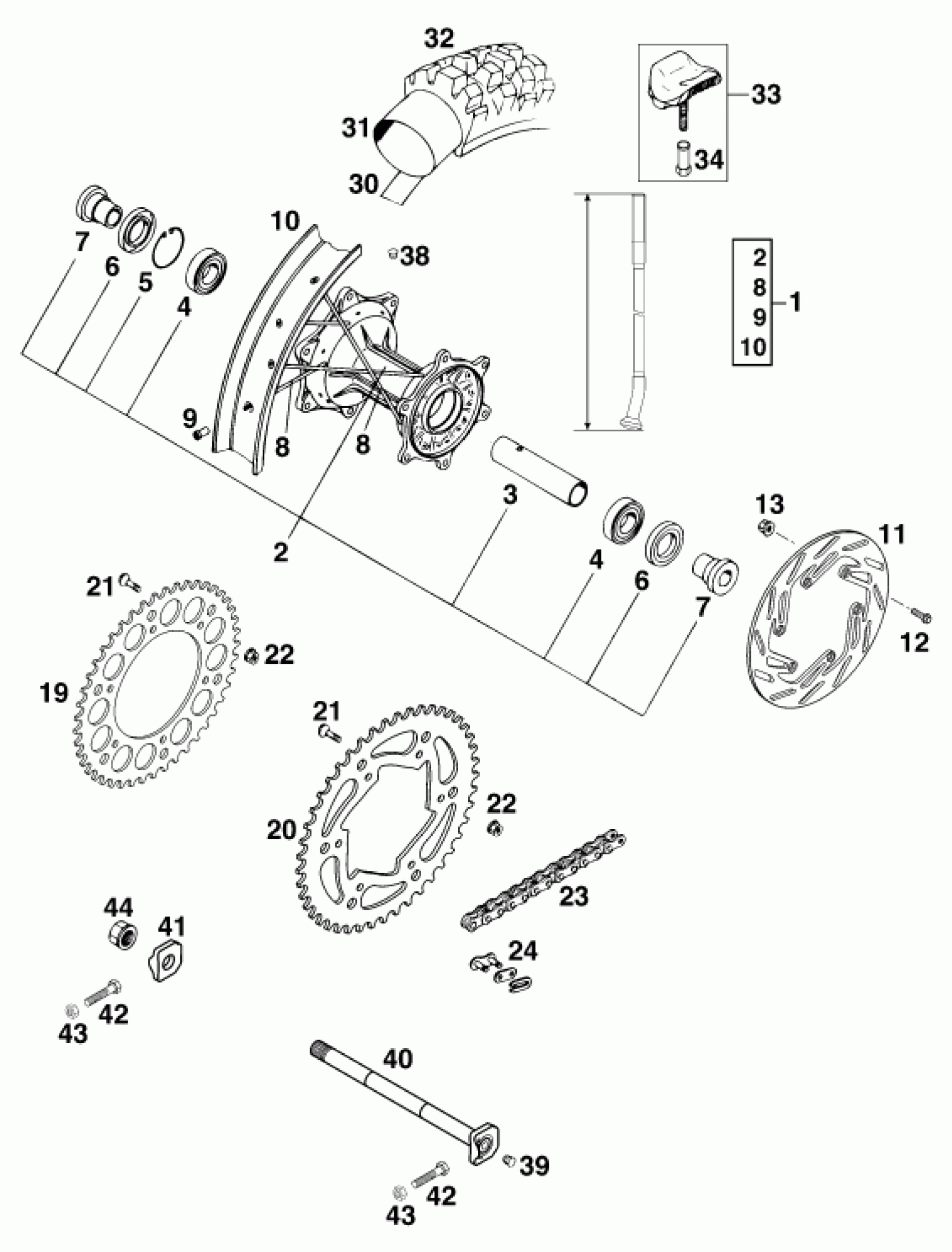

KTM 125 EGS M/Ö <1996 REAR WHEEL Diagram
#
1
* REAR WHEEL2.15-19" EXCEL '93
5021000194490
Unavailable
1
* REAR WHEEL CPL. 2.15-18"DID'
5021020194490
Unavailable
1
* REAR WHEEL 2,50-18"DID '93
5651000194490
Unavailable
2
5461001004490
Unavailable
3
BUSHING SPACER TUBE 121,5 MM
56510011000
Unavailable
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
SHAFT SEAL RING 32x47x7
0760324772
Unavailable
6
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
7
BUSHING FOR HUB
54610016000
$32.90
8
SPOKE M5X207-10G 19''
54610071000
$2.69
8
SPOKE M5X198-10G 18''
56510171600
Unavailable
9
SPOKE M5X211-10G
50210071700
Unavailable
9
SPOKE M5X201-173G 18''
50210171000
$4.11
10
REAR RIM 2,15X19'' EXCEL AL4
54610070100
$252.81
10
REAR RIM 2,15X18'' DID
54610070300
$198.44
10
REAR RIM 2,50X18'' DID
56510070300
$211.80
11
STEEL NIPPLE M5
56509072000
Unavailable
15
REAR BRAKE DISK 220MM COUNTERS
58010060600
$183.53
16
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
17
SELF LOCKING NUT M6
56509064000
Unavailable
19
REAR SPROCKET 38-T
58310051038
$64.97
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 40-T
58310151040
$63.10
19
REAR SPROCKET 45-T
58310151045
$50.58
20
REAR SPROCKET 48-T
58310151048
$50.58
20
REAR SPROCKET 50-T
58310151050
$56.00
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
22
54310086000
Unavailable
23
50010065000
Unavailable
23
* CHAIN /M 5/8X1/4" PER METRE
50010065001
Unavailable
23
50010065100
Unavailable
23
X-R.CHAIN 5/8X1/4''/M W.LINK
50010065101
Unavailable
24
MASTER LINK 5/8X1/4''
50010066000
Unavailable
24
MASTER LINK 5/8X1/4'' X-RING
50010066100
$13.27
30
52010073000
Unavailable
31
HOSE 3.75/4.10/4.60-18''
50110075000
Unavailable
31
HOSE 100/90-19''
50210075000
Unavailable
31
HOSE 4.00/4.50/120/130-18''
54010075000
Unavailable
31
54610075000
Unavailable
32
* TYRE 120/80-19" MP11
54610174000
Unavailable
32
* TYRE 120/90-18" 65R MP11 DOT
54610174200
Unavailable
32
TYRE 130/80-18" 66M MP11 DOT
54610174300
Unavailable
32
TYRE 120/90-18" T63 62S
54610174400
Unavailable
33
RIM LOCK VM3 (2.15'')
54010100100
$20.56
33
RIM LOCK VM4 (2.50'')
56410100100
$30.94
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
$3.08
40
WHEEL SPINDLE REAR CPLL=264MM
50210085044
$70.38
41
CHAIN TENSIONER '95
56510084100
$11.28
42
HH SCREW M8X40 WS=10
50203030090
$4.11
43
Hexagon nut DIN934 M8
0934080003
$2.05
44
HEXAGON NUT M20X1,5
54310099000
Unavailable
