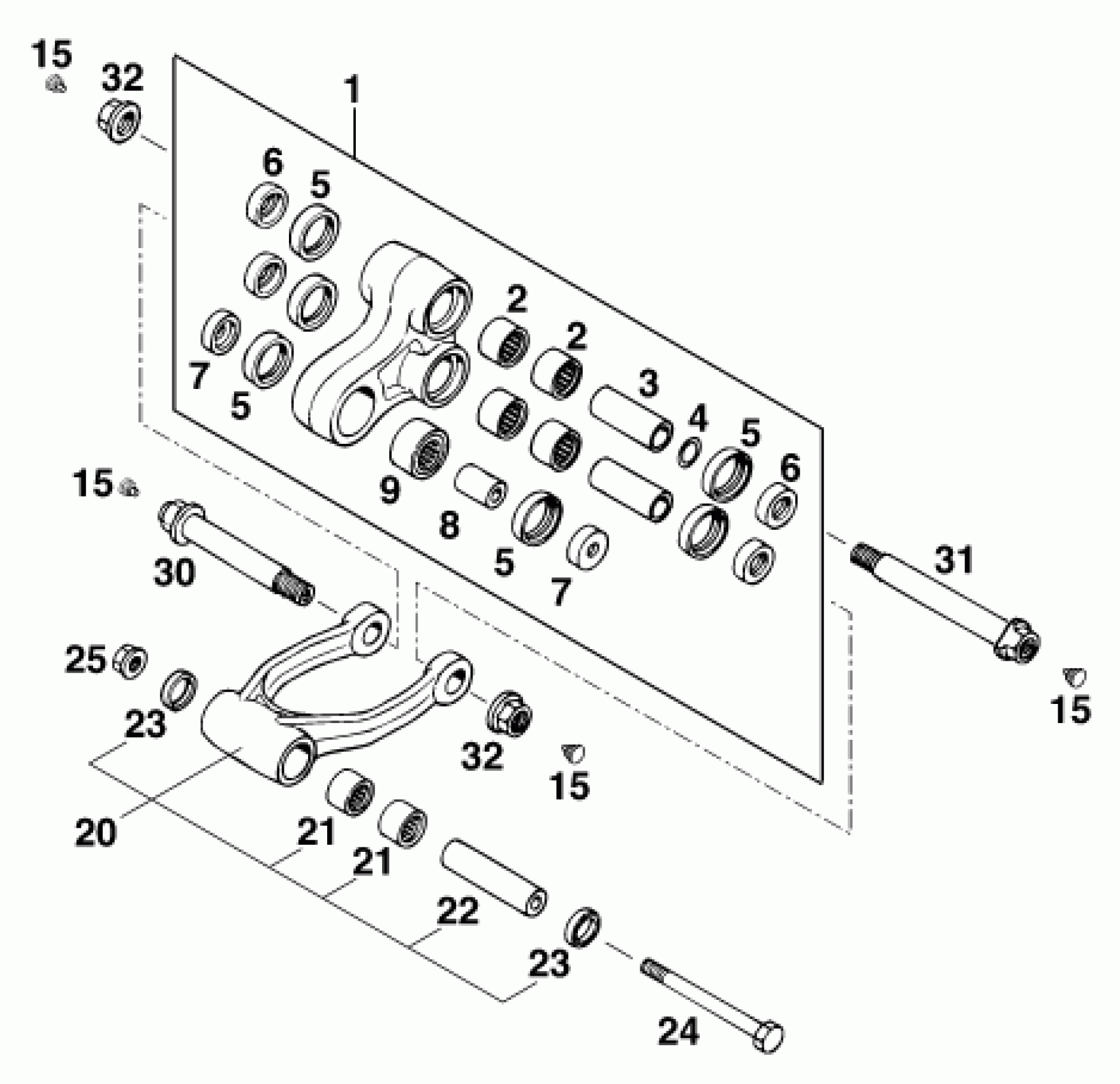

KTM 125 EGS M/Ö <1996 PRO LEVER LINKING Diagram

% ROCKER ARM CPL 250/300 '90

54603080044

Unavailable

Needle bushing HK 2016 / 20x26

54603097000

$15.04

Bushing sleeve 15x20x48

54603081000

$24.77

Steel washer 15.2x19x0.1

54603090010

Unavailable

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

radial shaft seal 25x32x7

0760253270

$6.63

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

BUCKET F.SHAFT SE.RING 10X25X8

54603085000

$11.00

BUSHING SLEEVE 25,5X18X10MM

54603086000

$9.87

PIVOT BEAR RPNA18-32 250'90

54603197000

$58.01

PLASTIC CAP SFL10

54403135000

$2.05

CONNECTING FORK L=122MM CPL

54603083144

$106.92

NEEDLE BEARING HK 1816

56503195100

$13.92

BUSHING SLEEVE 70X18X10MM

54603084000

$21.57

SHAFT SEAL RING 18X24X4

0760182442

$5.79

SPECIAL SCREW M10X96 10.9

54603087000

Unavailable

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

BOLT LINKAGE ARM - ROCKER AR

54603182050

Unavailable

BOLT SWINGARM-ROCKER ARM

50203082150

Unavailable

Self locking nut M14x1.5 WS19

54603015000

$5.51
