MAIN SILENCER

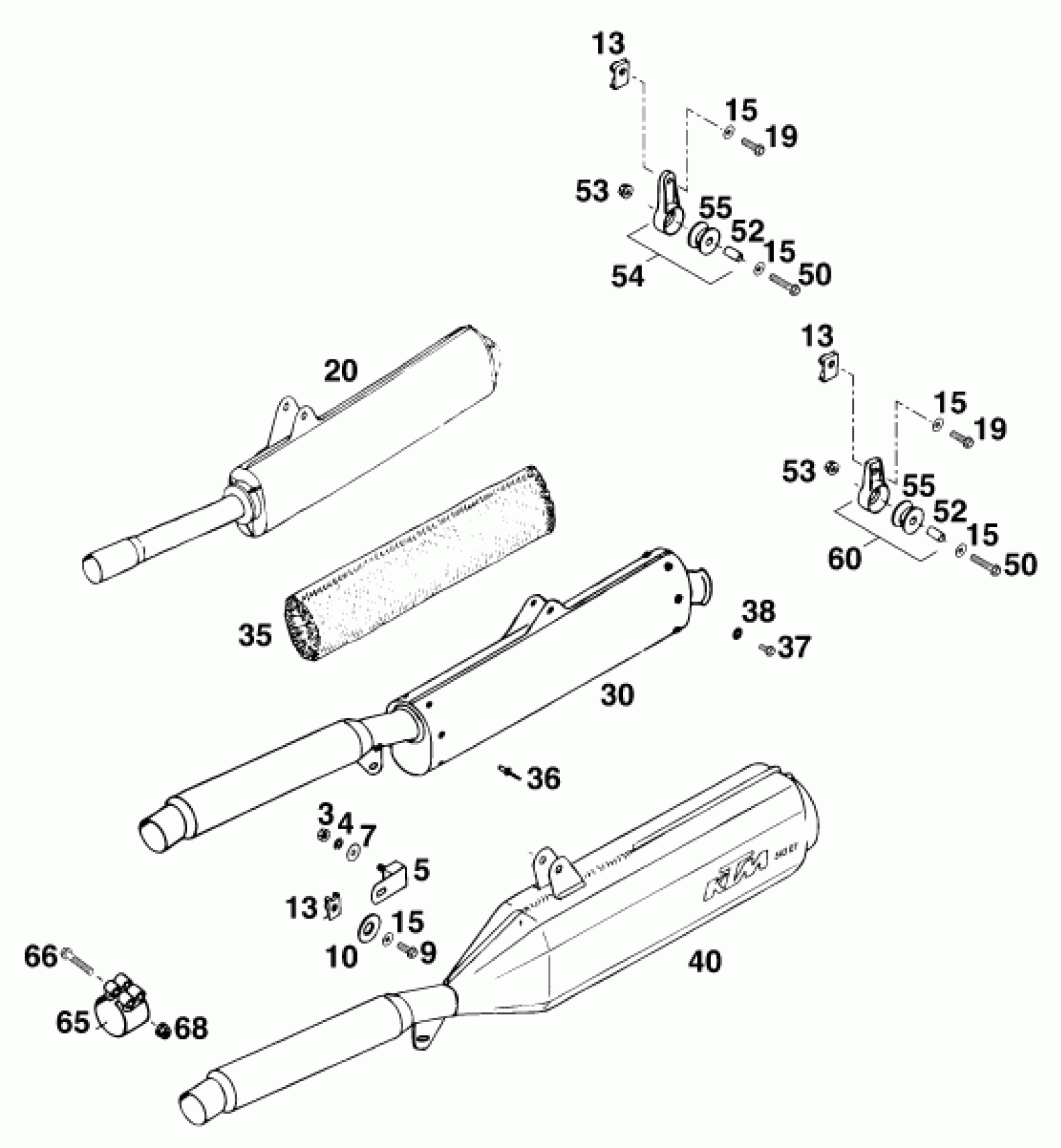

KTM 125 EGS M/Ö <1996 MAIN SILENCER Diagram
#
Description
Price
0
* STUFFING YARN LOOSE PER
58005079055
Unavailable
0
STUFFING YARN LOOSE 300 GRAMM
58005079056
Unavailable
3
Hex. nut DIN 934 M6
0934060003
$1.49
4
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
$1.49
5
SILENTBLOCK FOR EXHAUST
54605262000
Unavailable
7
Washer DIN9021-A 6.4
0021060003
$2.05
9
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
10
INSOLATE WASHER 12X28X3
51005067100
$2.05
13
clip nut M6
54603048100
$4.11
15
spring washer DIN 137 B - 6
0137060003
Unavailable
19
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
20
% MAIN SILENCER ALU POLISHED '
50205079500
Unavailable
30
MAIN SILENCER ALU POLISHED '94
50205079406
Unavailable
35
58005078180
Unavailable
36
RIVET
0011401001
Unavailable
37
SPECIAL SCREW M 5,0X10
0009050103
$2.05
38
TOOTH LOCK WASH. DIN6797-J 5,3
0797050003
$1.49
40
MAIN SILENCER 543 E1 '93
50205080300
Unavailable
50
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
52
BUSHING 7X12X15,4
54305069000
$4.11
53
SELF LOCKING NUT M6
56509064000
Unavailable
54
MUFFLER BRACKET LONG CPL
54305065044
Unavailable
55
RUBBER BLACK F.DAMPING BRACKET
54305068000
$5.92
60
% SIL.BRACKET CPL. SHORT SILIC
54305065144
Unavailable
65
PIPES CLAMP BLACK
58005151054
Unavailable
66
HH COLLAR SCREW M 6X35 WS=8
0015060353
Unavailable
68
SELF LOCKING NUT M 6 COPPER
51010086000
Unavailable
