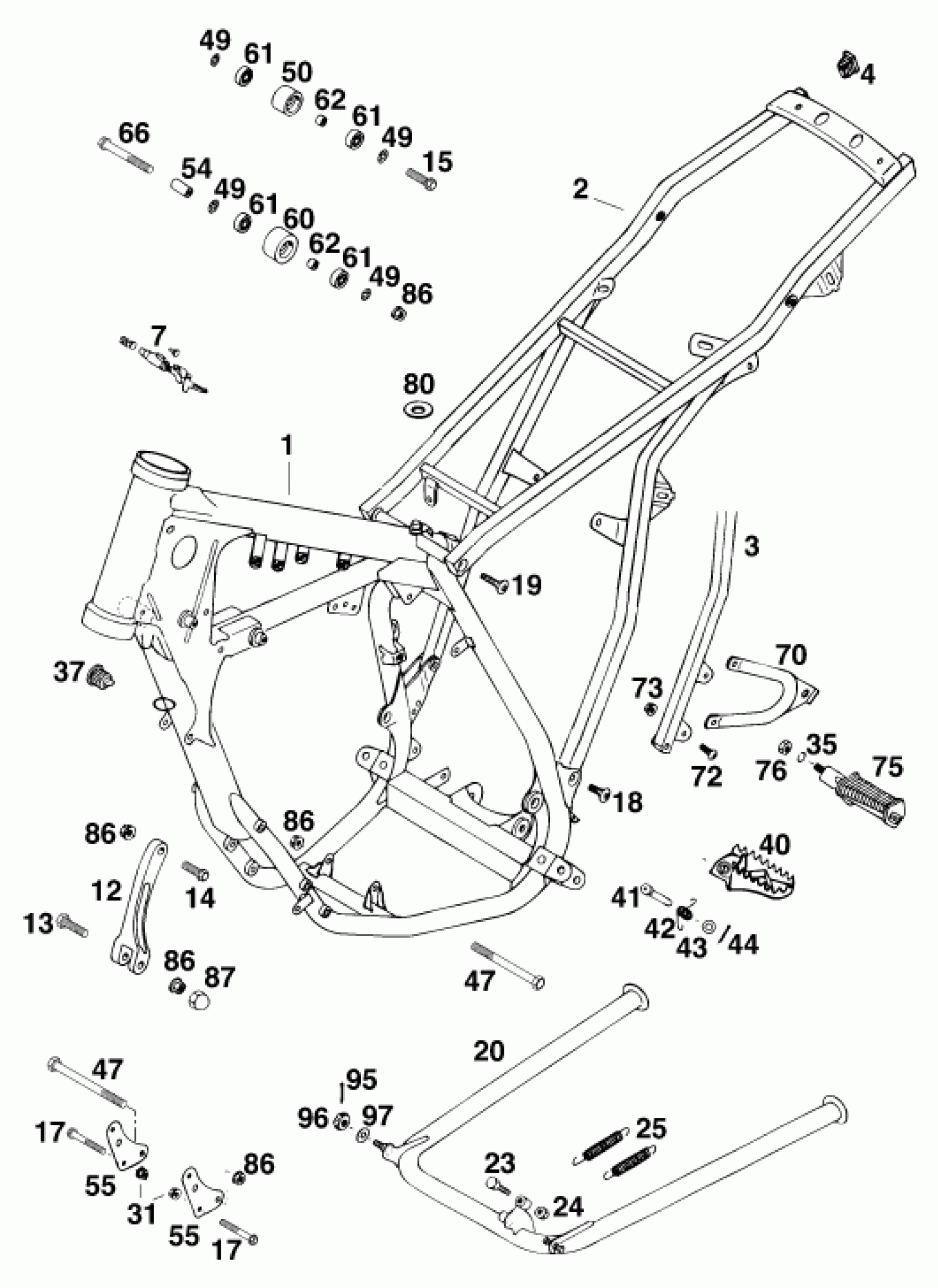

KTM 125 EGS M/Ö <1996 FRAME Diagram
#
0
FOOTREST REAR R/S CPL.
49003350000
Unavailable
0
*FOOT REST BRACKET REAR R/S 93
58303103000
Unavailable
1
* FRAME 125 SX '94
50203001900
Unavailable
1
FRAME 125 EXC/EGS '94
50203401900
Unavailable
2
SUB FRAME ALU SX
50203002800
Unavailable
2
SUB FRAME STEEL EXC/EGS '94
50203402900
Unavailable
3
SUB FRAME STEEL EXC/EGS
50203502900
Unavailable
4
PLUG 12 X 17 MM
58303002090
$1.49
7
STEERING HEAD LOCK CPL. ZADI
71003007000
Unavailable
12
ENGINE BRACE 125 '91
50203045700
Unavailable
13
HH SCREW DIN931 M8x30
0931080303
Unavailable
14
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
15
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
17
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
18
SPROCKET SCREW-AH M8X20 WS=6
54610052000
$2.05
19
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
20
CENTRE STAND 125 '93
5020302210019
Unavailable
23
HH SCREW DIN0933-M 8X25
0933080253
$2.05
24
Hexagon nut DIN934 M8
0934080003
$2.05
25
STAND SPRING SHORT
10003021000
$9.44
31
SELF LOCKING NUT M6
56509064000
Unavailable
35
SPRING RING DIN0127-B10
0127100003
Unavailable
37
PLASTIC CAP
42007049000
$1.49
40
% FOOT REST L/S WIDE '
54603040100
Unavailable
40
FOOT REST R/S WIDE '
54603140100
Unavailable
41
BOLT FOR FOOTREST 9,8 X 50
54603044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
47
HH SCREW DIN931 M8x90
0931080903
Unavailable
49
LOCK WASHER 8MM
36003014000
$2.05
50
CHAIN ROLL D=30MM
50203053000
$6.72
54
BUSHING 8X12X26 CHAIN ROLL
50203053101
Unavailable
55
* ENGINE SUPPORT STEEL '87
50203055000
Unavailable
60
CHAIN ROLL D=35MM
50203053100
Unavailable
61
Grooved ball bearing 608 2RS C
0625006087
$21.40
62
BUSHING 8.2 X 12 X 6
74003021000
$3.08
66
HH COLLAR SCREW M8x70 SW10
0015080703
Unavailable
70
FOOTREST BRACKET REAR L/S
58303003000
Unavailable
72
AH OVAL H.SCREW DIN0170-M 8X20
0107080203
Unavailable
73
54310086000
Unavailable
75
FOOTREST REAR L/S CPL.
49003250000
Unavailable
76
HEXAGON NUT DIN0934-M10
0934100003
Unavailable
80
INSOLATE WASHER 12X28X3
51005067100
$2.05
86
54310086000
Unavailable
87
* HEX NUT COVER
16001036013
Unavailable
95
PIN DIN0094-2,0X16
0094020163
$1.73
96
0937080003
Unavailable
97
washer DIN 125 A -8.4
0125080003
$1.49
