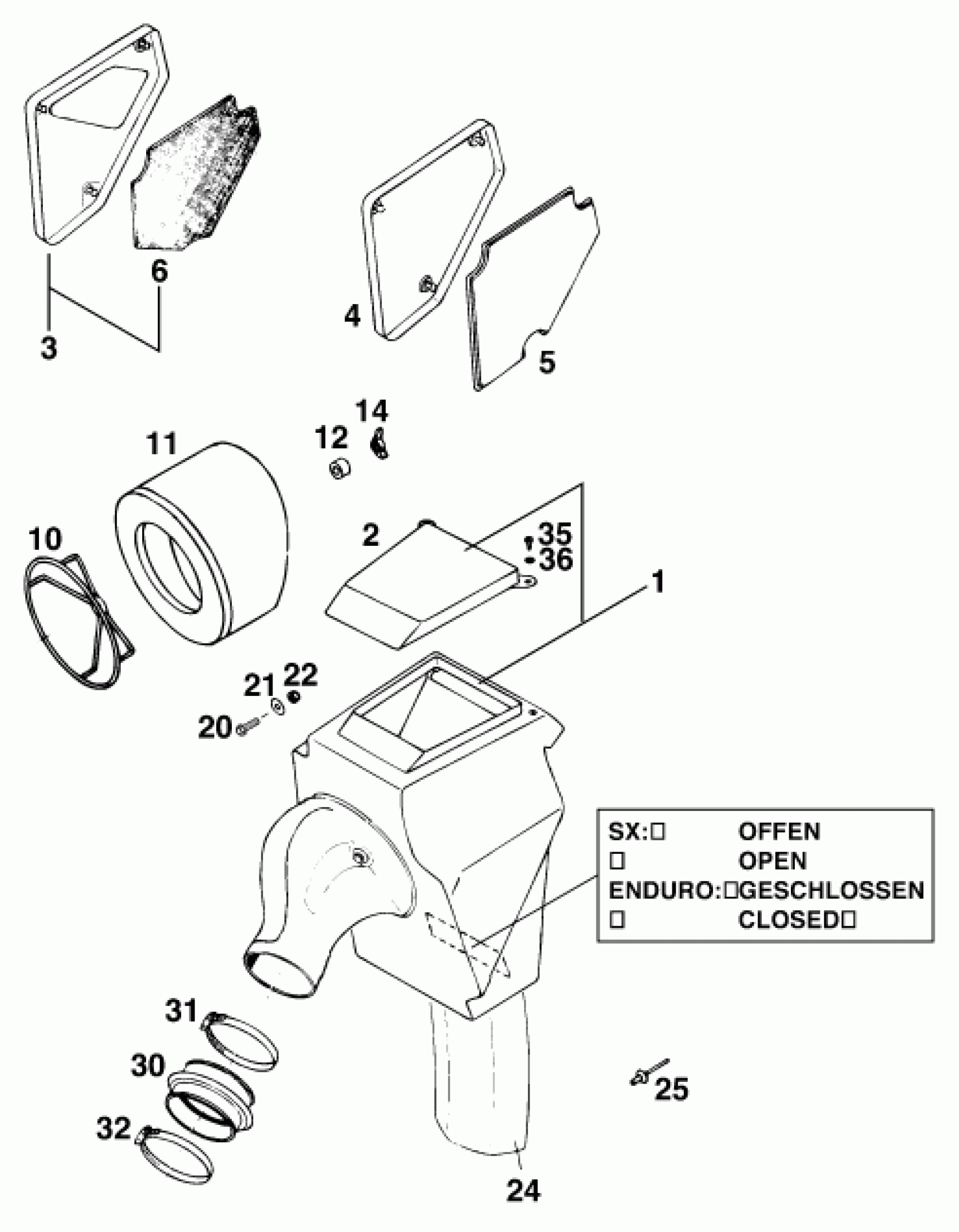

KTM 125 EGS M/Ö <1996 AIR FILTER Diagram

AIRFILTER BOX 125 SX '92

50206001100

Unavailable

* AIRFILTER BOX 125 EGS '92

50206501100

Unavailable

FILTER BOX COVER 125 '92

50206003000

Unavailable

AIRFILTER COVER SX '93

50206002100

Unavailable

OUTER AIFILTER BOX COVER EGS

50206502050

Unavailable

* INNER AIRFILTER BOX COVER EG

50206502051

Unavailable

* FOAM RUBBER 125'87

50206002052

Unavailable

FILTER SUPPORT 125/500 '89

50106016100

$21.90

AIRFILTER

56506015100

$28.13

BUSHING 6,5X15X10 ALU

50206017050

$2.61

* WING NUT M6

56003076000

Unavailable

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

Self lock. nut DIN985-M6-A2

0985060003

$2.05

* SPLASH PROTECT AIRF.BOX '87

50206010000

Unavailable

BLIND RIVET

43206043000

Unavailable

CARBURETOR CONNECTION BOOT 125

50106026000

$13.94

HOSE CLAMP 60-80MM

55006028000

$4.11

HOSE CLAMP 50-70MM

51006027000

$6.07

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

WASHER DIN0125-A 4,0

0125040003

$1.49
