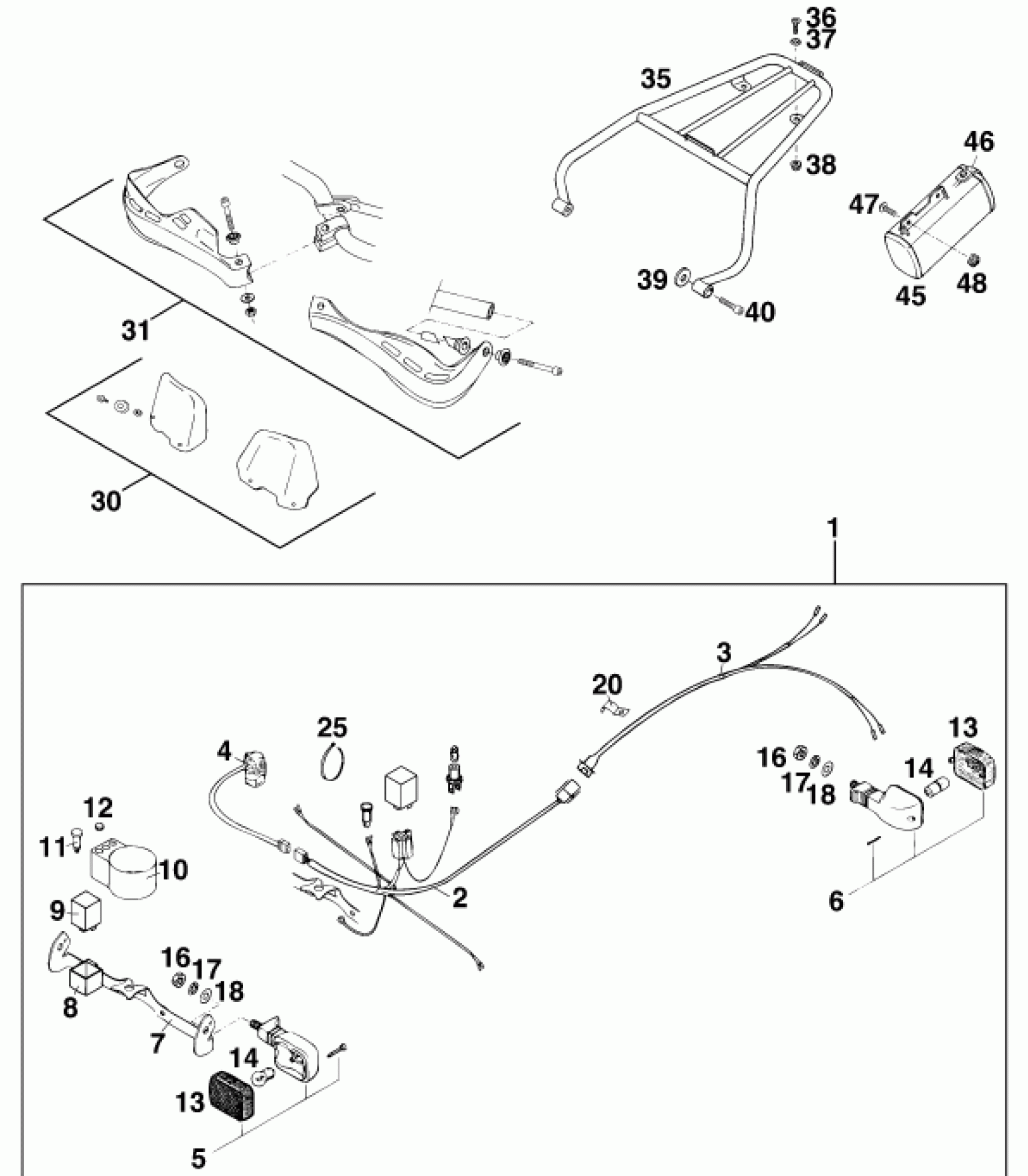

KTM 125 EGS M/Ö <1996 ACCESSORIES Diagram
#
Description
Price
0
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
1
* FLASHER KIT
50211100044
Unavailable
2
FLAS.LIGHT CABLE HARNESS FRONT
54611177000
Unavailable
3
FLASHER LIGHT WIRING REAR '95
58311178000
Unavailable
4
* FLASHER SWITCH
15311070051
Unavailable
5
FLASHER FRONT L/S / REAR R/S
58311012000
$15.68
6
FLASHER REAR L/S / FRONT R/S
58311112000
$15.26
7
SPEEDOMETER BRACKET VDO '95
54611120400
Unavailable
8
* FLASHER LIGHT BRACKET
54511046000
Unavailable
9
FLASHER UNIT
15211007000
Unavailable
10
SPEEDOMETER HOUSING VDO
58011068000
Unavailable
11
INDICATOR LAMP YELLOW 12V.
58011024100
$8.73
12
PLUG
36111021000
$1.49
13
FLASHER LENS L/S AND R/S
58311013000
$4.97
14
BULB 12V 10W (BA15S)
44111015100
$3.08
16
HEXAGON NUT DIN0934-M10X1,25
0934102003
Unavailable
17
LOCK WASHER DIN6797-J10,5 ZI
0797100003
$1.49
18
washer DIN 125 A 10.5
0125100003
$2.05
20
CLAMP
56501092000
$4.14
25
Cable tie 200/4.6mm black
44011076200
$1.49
30
SCREEN CPL.L+R/S
50202079050
Unavailable
31
% HAND GUARD CPL. L+R/S
50202079044
Unavailable
35
% LUGGAGE RACK 2-STROKE '94
50212011100
Unavailable
36
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
37
WASHER 6MM
40006006000
$1.49
38
SELF LOCKING NUT M6
56509064000
Unavailable
39
STEEL WASHER 6,4X17X3
50232050001
$5.23
40
AH SCREW DIN0912-M 6X30
0912060303
$2.05
45
TOOL BOX CPL. '92
58012058000
$35.48
46
RUBBER FOR TOOL BOX '92
58012058050
$6.98
47
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
48
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
