WIRING HARNESS

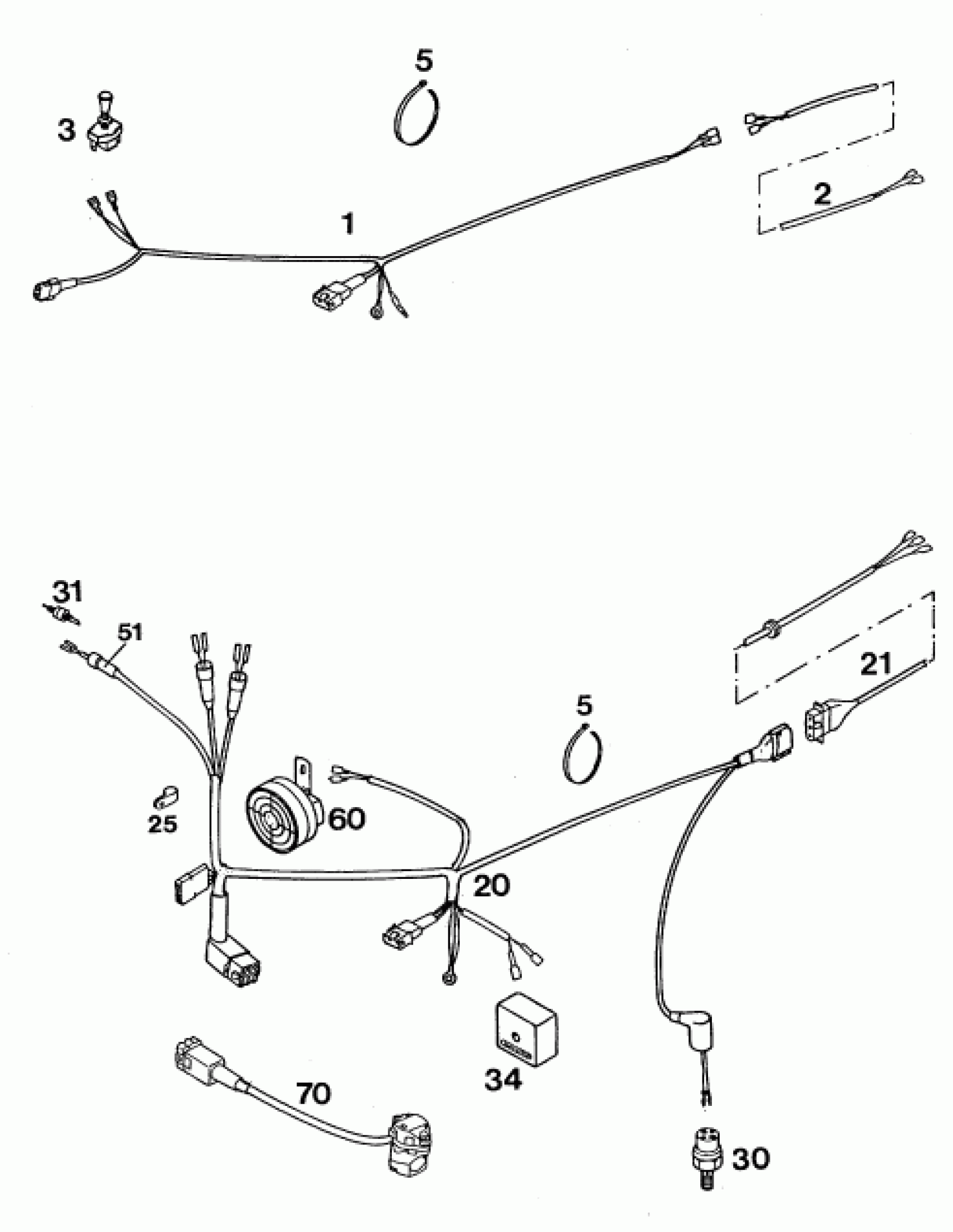

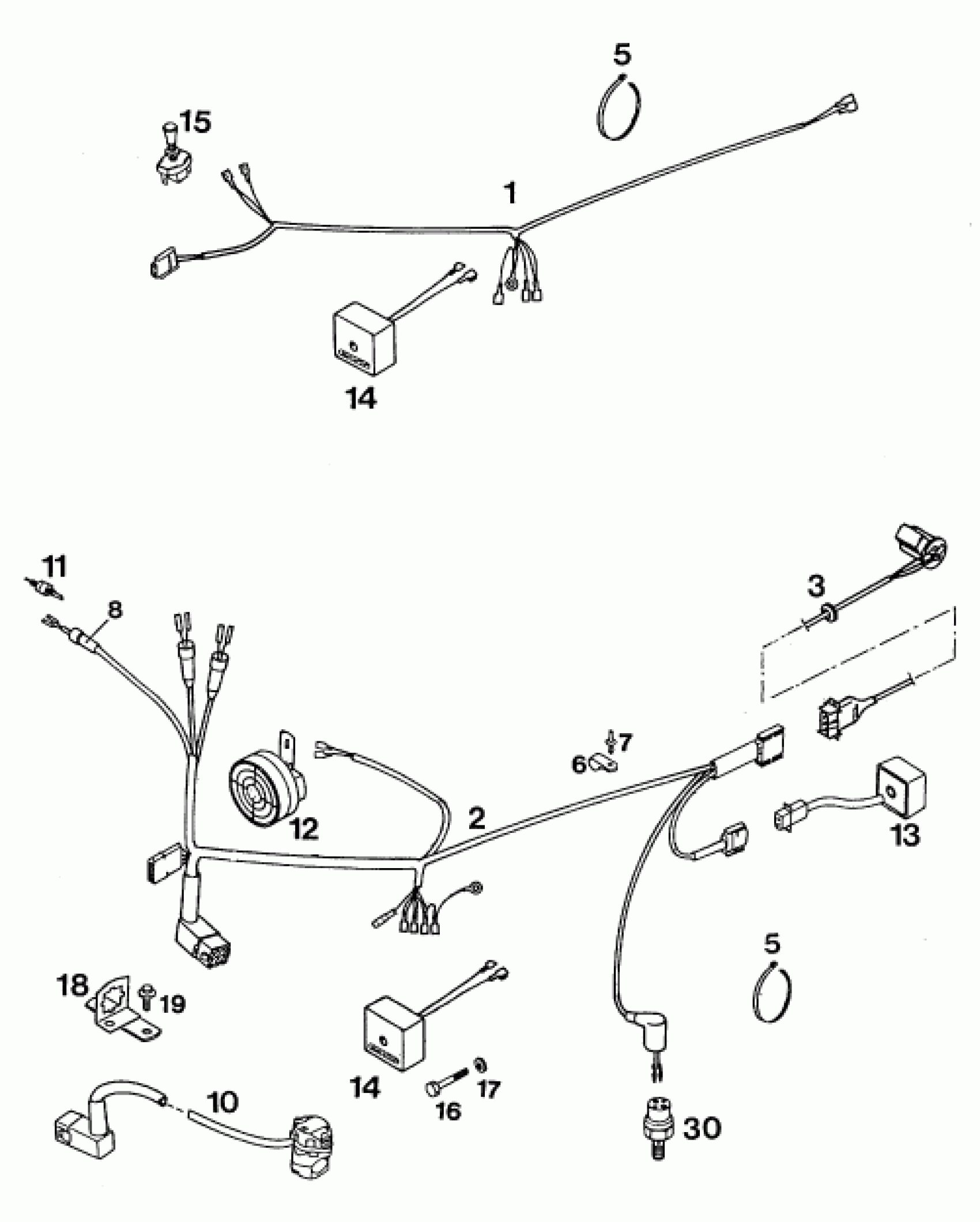

KTM 125 E-XC <1994 WIRING HARNESS Diagram
#
Description
Price
1
MAIN CABLE HAR.250/300 EGS '93
54611475100
Unavailable
2
CABLE HARNESS REAR PART EGS'93
54611476100
Unavailable
3
HEAD LAMP SWITCH WI.CABLE '9
54611470100
Unavailable
4
SWITCH SUPPORT MERIT
57011070050
Unavailable
5
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
6
* CABLE CONNECTOR
44111006000
Unavailable
7
* FLASHER UNIT
44611207000
Unavailable
8
* FLASHER LIGHT BRACKET
54511046000
Unavailable
9
CABLE HARNESS REAR EGS ACE
54611277000
Unavailable
10
REAR WIRNING HARNESS '93
58311276000
$41.16
12
BRACKET FOR CONNECTOR '93
54611083100
Unavailable
13
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
15
* CLAMP RSGU 18/20
54211052100
Unavailable
16
AH SCREW DIN0912-M 6X16
0912060163
$1.49
18
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
19
* BRACKET
13106038000
Unavailable
25
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
$1.49
27
Self lock. nut DIN985-M6-A2
0985060003
$2.05
28
AH SCREW DIN0912-M 6X10
0912060103
$1.49
30
BRAKE LIGHT SWITCH
42013121000
$31.34
32
FRONT BRAKE LIGHT SWITCH
51011050000
$19.91
33
RUBBER GROMMET 20X15-M6X10 (2)
54335031000
$7.63
34
54611434000
Unavailable
35
CONDENSATOR 25V, 10.000 MF
49111435100
$57.59
36
CAPACITOR BRACKET
54511048000
$4.33
37
BRACKET FOR CAPACITOR
54611448000
Unavailable
38
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
40
* RETAINING PLATE
58011031000
Unavailable
60
DC HORN 12V NIKKO
54511060100
Unavailable
