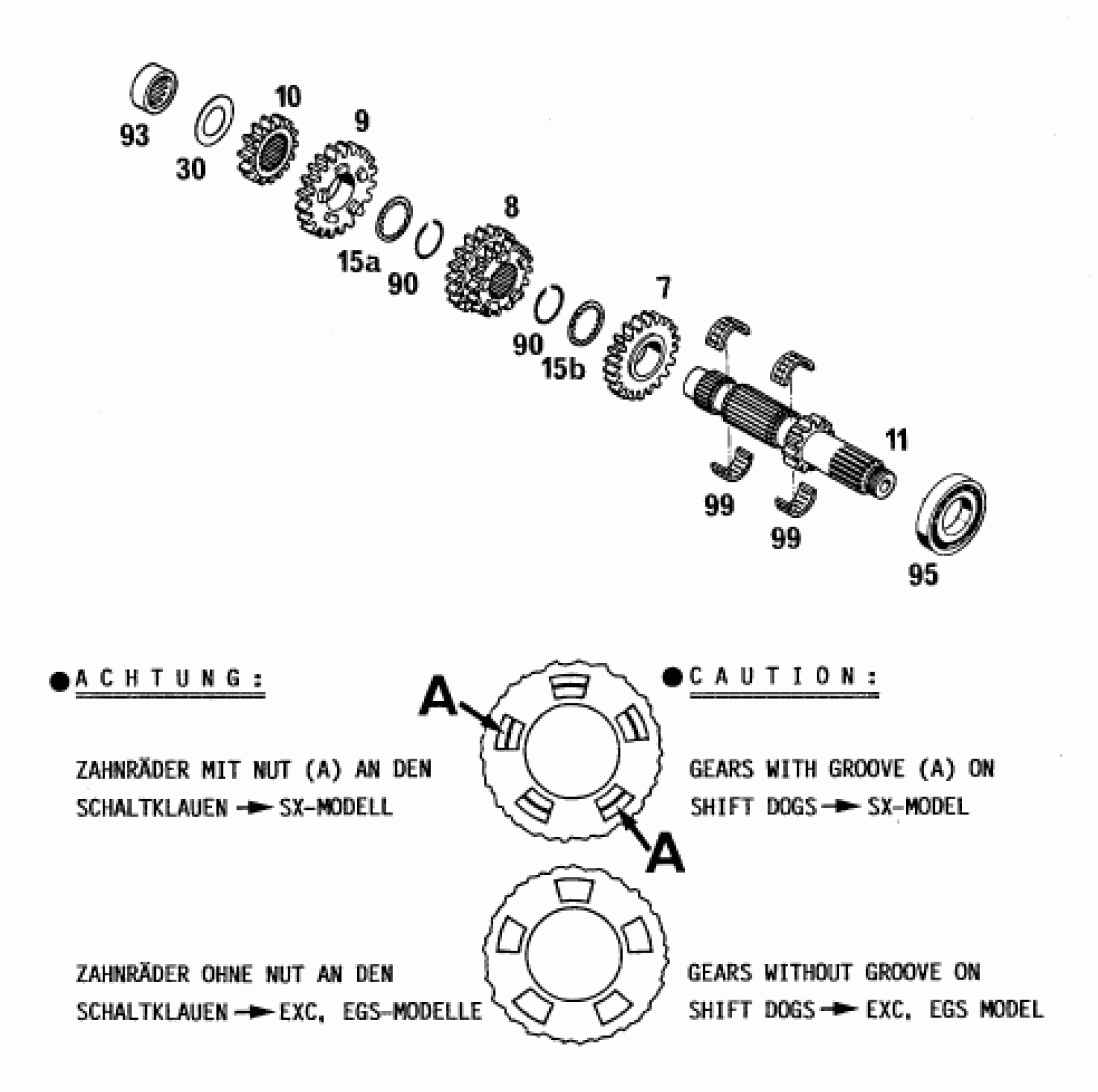

KTM 125 E-XC <1994 TRANSMISSION I - MAIN SHAFT Diagram

5TH GEAR MAINSHAFT 21-T ''082'

50233007700

Unavailable

3RD,4TH GEAR MAINS.14/15-T 0

50233008700

$98.84

6TH GEAR MAINSHAFT 20-T ''102'

50233009700

Unavailable

2ND GEAR MAINSHAFT 15-T ''030'

50233010500

Unavailable

2ND GEAR MAINSHAFT 15-T 035

50233110500

Unavailable

MAIN SHAFT 13-T SX

50233011600

Unavailable

MAINSHAFT 12-T EXC/EGS

50233111600

Unavailable

* STOP DISK 20,9X25,2X1,5

50133015000

Unavailable

* STOP DISK 21,5X25,2X1,5

50133015100

Unavailable

STOP DISC 17,2X30X1

56033030000

$4.11

LOCK RING 22X1,2

50133090000

$2.05

* NEEDLE BEARING 17X26X9,5

54333093000

Unavailable

* BALL BEARING 98204 KSE C3

0625982040

Unavailable

NEEDLE CAGE K18X22X10 PARTED

50133099000

$12.99
