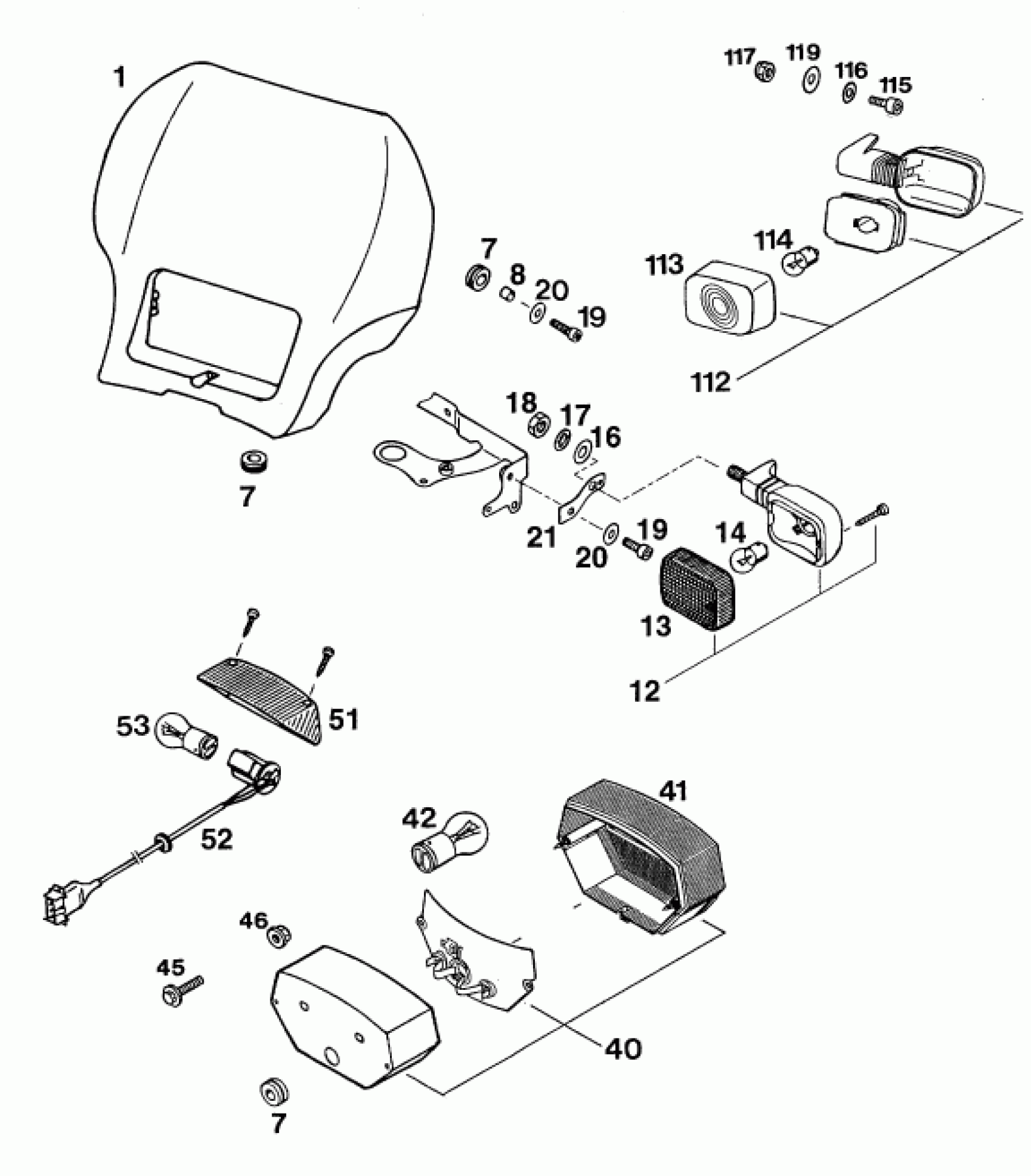

KTM 125 E-GS <1994> LIGHTING SYSTEM Diagram

#

Description
Price

0

FLASHER REAR L/S / FRONT R/S

58311112000

$15.26

1

* HEADLIGHT MASK WHITE '93

50211401000

Unavailable

7

rubber grommet D=8mm open

31008060000

$2.05

8

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

12

FLASHER FRONT L/S / REAR R/S

58311012000

$15.68

13

FLASHER LENS L/S AND R/S

58311013000

$4.97

14

BULB 12V 10W (BA15S)

44111015100

$3.08

16

washer DIN 125 A 10.5

0125100003

$2.05

17

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

18

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable

19

AH SCREW DIN0912-M 6X20

0912060203

$2.05

20

Washer DIN9021-A 6.4

0021060003

$2.05

21

* FLASHER BRACKET '94

54611020400

Unavailable

40

REAR LIGHT CPL ULO '93

50211040044

$79.69

41

LENS ULO

55011041000

$38.40

42

* BULB 6V 21/5W

40011045000

Unavailable

42

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

45

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

46

SELF LOCKING NUT M6

56509064000

Unavailable

51

REAR LIGHT LENS ACERBIS '93

58311241000

$24.83

52

REAR WIRNING HARNESS '93

58311276000

$41.16

53

* BULB 6V 21/5W

40011045000

Unavailable

53

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

112

FLASHER FRONT L/S - FRONT R/S

50211412000

Unavailable

113

LENS FOR FLASHER '93

50211413000

Unavailable

114

* BULB

31011045027

Unavailable

114

BULB 12V 10W (BA15S)

44111015100

Unavailable

115

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

116

WASHER DIN0125-A 6,4

0125060003

Unavailable

117

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

119

Washer DIN9021-A 6.4

0021060003

Unavailable
