MASK, FENDERS

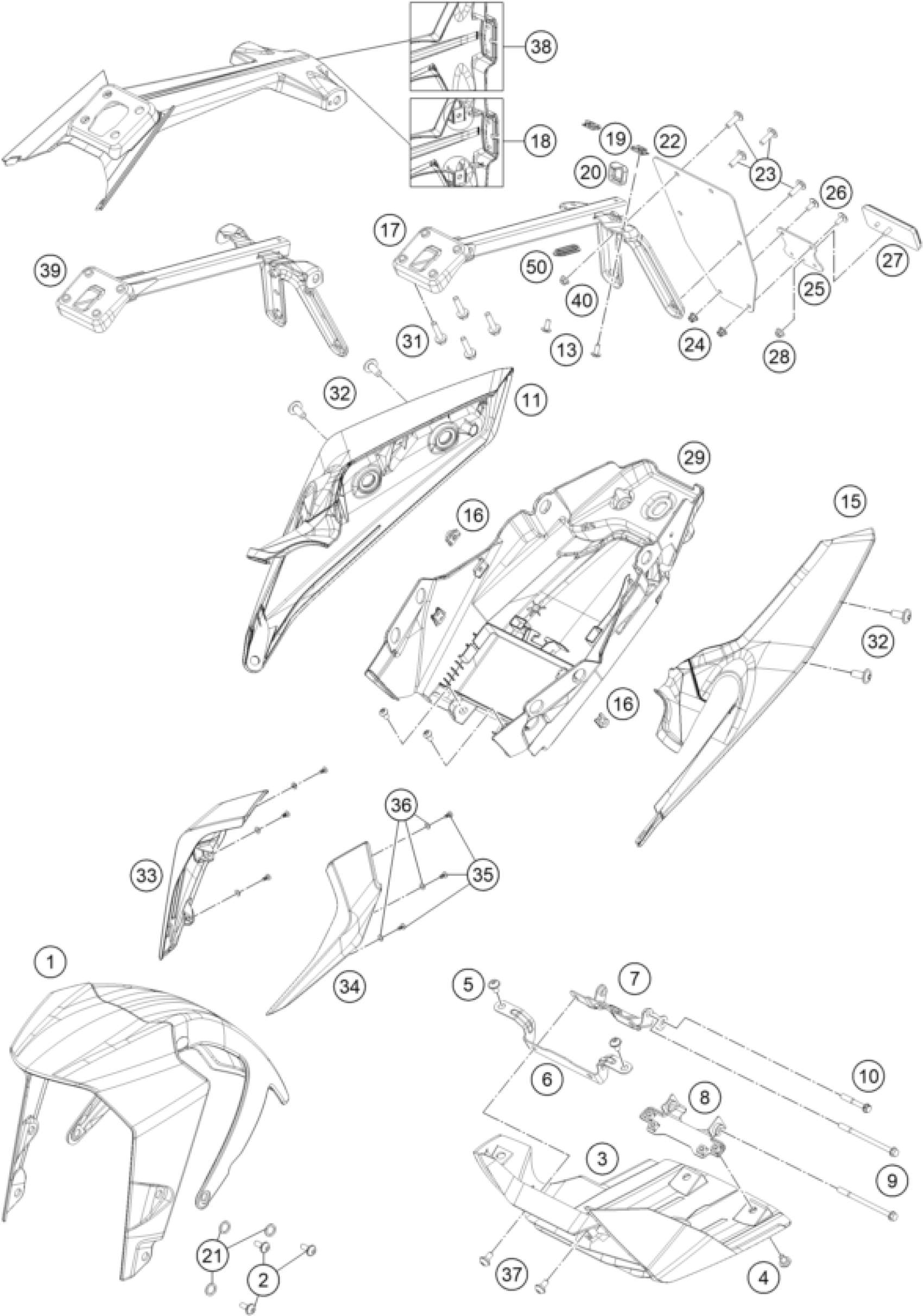

KTM 125 Duke, white, 2019 MASK, FENDERS Diagram
#
1
Front fender cpl. white
9300801003328
Unavailable
2
Panhead screw with shoulder
J031050161
Unavailable
3
Under-engine fairing 125/200
93008020000
Unavailable
4
Screw M6X1X9
93008020060
Unavailable
5
SOCKET HEAD BOLT M6X12
90508006001
Unavailable
6
Retaining bracket
93008020050
Unavailable
7
RETAINING PLATE FRONT SPOILER
90108021100
Unavailable
8
Retaining bracket
90608025000
Unavailable
9
HH COLLAR SCREW M6X90
J026060903
Unavailable
10
Hexagon screw M6X1X40
93008021050
Unavailable
11
Side fairing rs cpl. white
9300804210028
Unavailable
13
Lens head screw M5X12
J031050123
Unavailable
15
Side fairing ls cpl. white
9300804110028
Unavailable
16
CLIP NUT M5
90108050001
Unavailable
17
Structure assembly plate numbe
93008015200
Unavailable
18
License plate holder support c
93008015050
Unavailable
19
Clip Nut M5
93008083010
Unavailable
20
Protection rubber
93008015010
Unavailable
21
Washer nylon
93009059000
Unavailable
22
REAR FENDER EXT.
90808016000
Unavailable
23
AH SCREW M6X1X20
90508006003
Unavailable
24
HEX NUT M5 AF8
90102031010
Unavailable
25
REFLECTOR MOUNTING
90514044000
Unavailable
26
FLAT HEAD SCREW M5X12 PH
J005050123
Unavailable
27
REFLECTOR
90514045000
Unavailable
28
HH COLLAR NUT
90204060001
Unavailable
29
Tail end lower part
93008019000
Unavailable
31
Hex collar screw M6X22
J025060226
Unavailable
32
AH SCREW M8X20
90508008001
Unavailable
33
Side mask right LED black
9300800100030
Unavailable
34
Side mask left LED black
9300802400030
Unavailable
35
Lens head screw M3,5X10
J981030101
Unavailable
36
Washer plain small 4.5X8X0.5XB
J125040003
Unavailable
37
Screw M6X1X13
93008040000
Unavailable
39
Licence plate holder support
93008015300
Unavailable
38
License plate holder support,
93008015150
Unavailable
40
Nut nyloc flanged M6X1XHT.9.1
90508016001
Unavailable
50
grommet
93008015060
Unavailable
