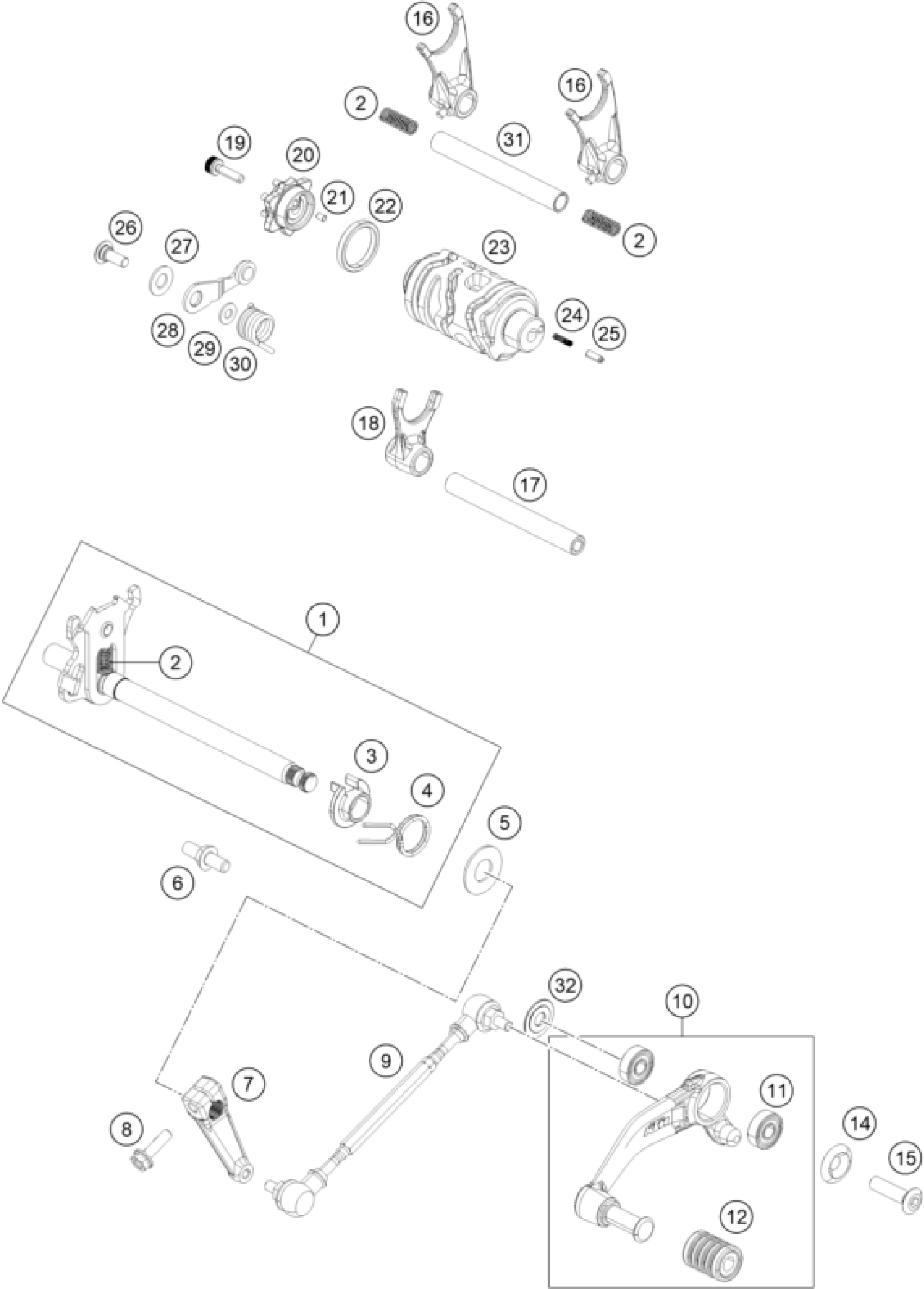

KTM 125 DUKE ORANGE ABS 2016 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90134005033

$27.95

2

TENSION SPRING

90134009000

$1.49

3

SPRING BUSHING

90134022000

$4.11

4

RETURN SPRING

90134014000

$4.11

5

STOP DISK 14X30X1,5

90134050000

$2.05

6

SPRING GUIDE

90134016000

$2.05

7

BAFFLE SHIFT LEVER

90634031010

$17.76

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

$1.49

9

TENSION ROD CPL.

90634040033

$23.55

10

GEARCHANGE LEVER

90134031233

$51.32

11

BALL BEARING 608

J625060800

$7.94

12

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

14

SPACER SHIFTING LEVER

90134031103

Unavailable

15

HH COLLAR SCREW M8X30 SW10

90134034100

Unavailable

16

SHIFT FORK COUNTER

90134002000

Unavailable

17

GEAR SHIFT RAIL

90134019000

$5.23

18

SHIFT FORK MAIN

90134001000

$13.55

19

AH SCREW M6X20 SELF LOCKING

90134015003

$4.11

20

SHIFT DRUM LOCATING

90134015000

$16.73

21

Parallel pin

90134013000

$1.49

22

SPACER

90134012002

$3.08

23

SHIFT ROLLER

90134012000

Unavailable

24

CONTACT SPRING

90134012003

Unavailable

25

BOLT FOR GEAR INDICATOR

90134012001

$1.49

26

SCREW LOCKING LEVER

90134025000

$2.05

27

WASHER LOCKING LEVER

90134030000

$3.08

28

LOCKING LEVER CPL.

90134024033

$4.11

29

WASHER 6X12,8X1,2

90134039000

$1.49

30

ARRESTING LEVER SPRING

90134023000

$2.05

31

GEAR SHIFT RAIL COUNTER

90134190000

$5.23

32

thrust washer, gear shift leve

90134031020

$2.05
