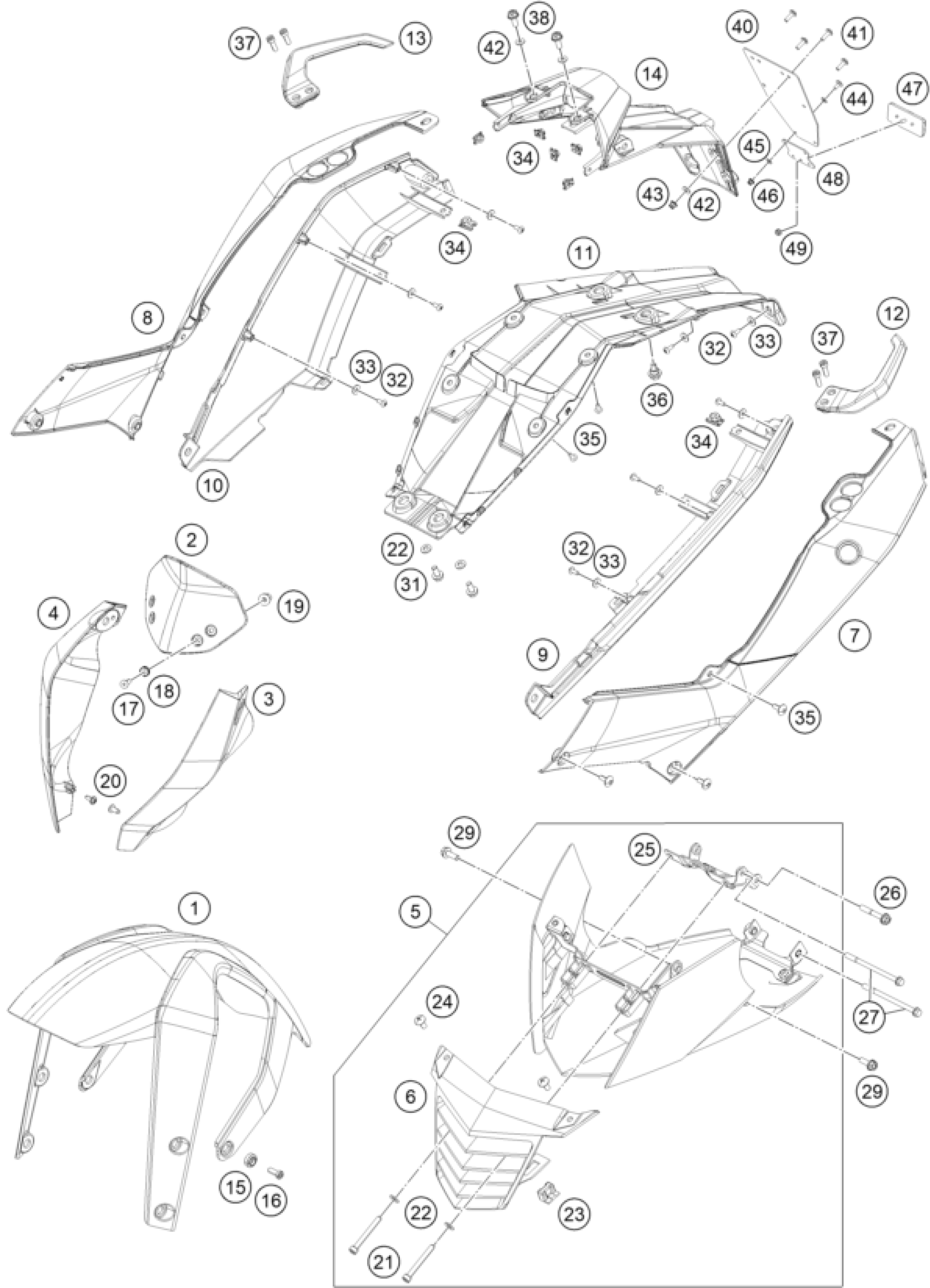

KTM 125 DUKE ORANGE ABS 2016 MASK, FENDERS Diagram

#

Description

Price

1

FRONT FENDER DUKE - EBONY BLAC

9010801000030A

Unavailable

2

WIND SHIELD

90108008000

$19.81

3

MASK SPOILER L/S ORANGE

9010800200004

Unavailable

4

MASK SPOILER R/S ORANGE

9010800300004

Unavailable

5

FRONTSPOILER LOWER PART CPL.

90108020144

Unavailable

6

FRONT SPOILER TOP PART

90108021000

Unavailable

9

SIDE COVER BOTTOM L/S

90108043000

$23.74

7

SIDE COVER L/S TOP

9010804100047

$65.35

8

SIDE COVER R/S TOP

9010804200047

$65.35

10

SIDE COVER BOTTOM R/S

90108044000

$21.68

11

UNDER TRAY

91208019000

Unavailable

12

GRIP L/S CPL.

90112008033

$18.78

13

GRIP R/S CPL.

90112009033

$18.60

14

NUMBER PLATE SUPPORT

91208015000

$37.14

15

BUSHING FRONT FENDER

90108010050

$4.11

16

AH SCREW M6X16

J912060163

$1.49

17

AH SCREW M5X20

J019050201

$1.49

44

CHEESE-HEAD SCREW M5X15

J031050153

$1.49

35

CHEESE-HEAD SCREW M5X16

J031050163

$1.49

36

SPECIAL SCREW M6X12,5 WS8

90108015050

$2.05

37

AH SCREW M8X27

J020080274

$2.05

38

HH COLLAR SCREW M6X14 WS10

J025060149

$1.49

40

REAR FENDER EXT.

90808016000

$3.08

41

AH SCREW M6X1X20

90508006003

$4.11

42

WASHER

90108015020

$1.49

43

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

45

WASHER D=5,5

90508015010

$1.49

46

HEX NUT M5 AF8

90102031010

$1.49

47

REFLECTOR

90514045000

$3.08

48

REFLECTOR MOUNTING

90514044000

$2.05

49

HH COLLAR NUT

90204060001

$1.49

18

WASHER FOR WINDSHIELD

90108008050

$5.23

19

WELL NUT M5 L16

90108008060

$2.05

20

EJOT PT screw K50x12

0081050121

$2.05

21

AH SCREW M6X50

J912060503

$2.05

22

PLAIN WASHER 6,5X13X1

J125060003

$1.49

23

GROMMET BELLY PAN

90108020001

Unavailable

24

SPECIAL SCREW BELLY PAN

90108020050

Unavailable

25

BRACKET BELLY PAN CPL.

90108025100

Unavailable

27

HH COLLAR SCREW M6X90

J026060903

$2.05

29

HH COLLAR SCREW M6X18 SW10

J025060183

$1.49

31

HH COLLAR SCREW M6X14 SW8

J025060143

$1.49

32

CROSS PAN SCREW 4X12 PH

J081040121

$1.49

33

WASHER 4,5X12X1MM

J021040003

$1.49

34

CLIP NUT M5

90108050001

$2.05

26

HH COLLAR SCREW M6X40

J025060401

$1.49
