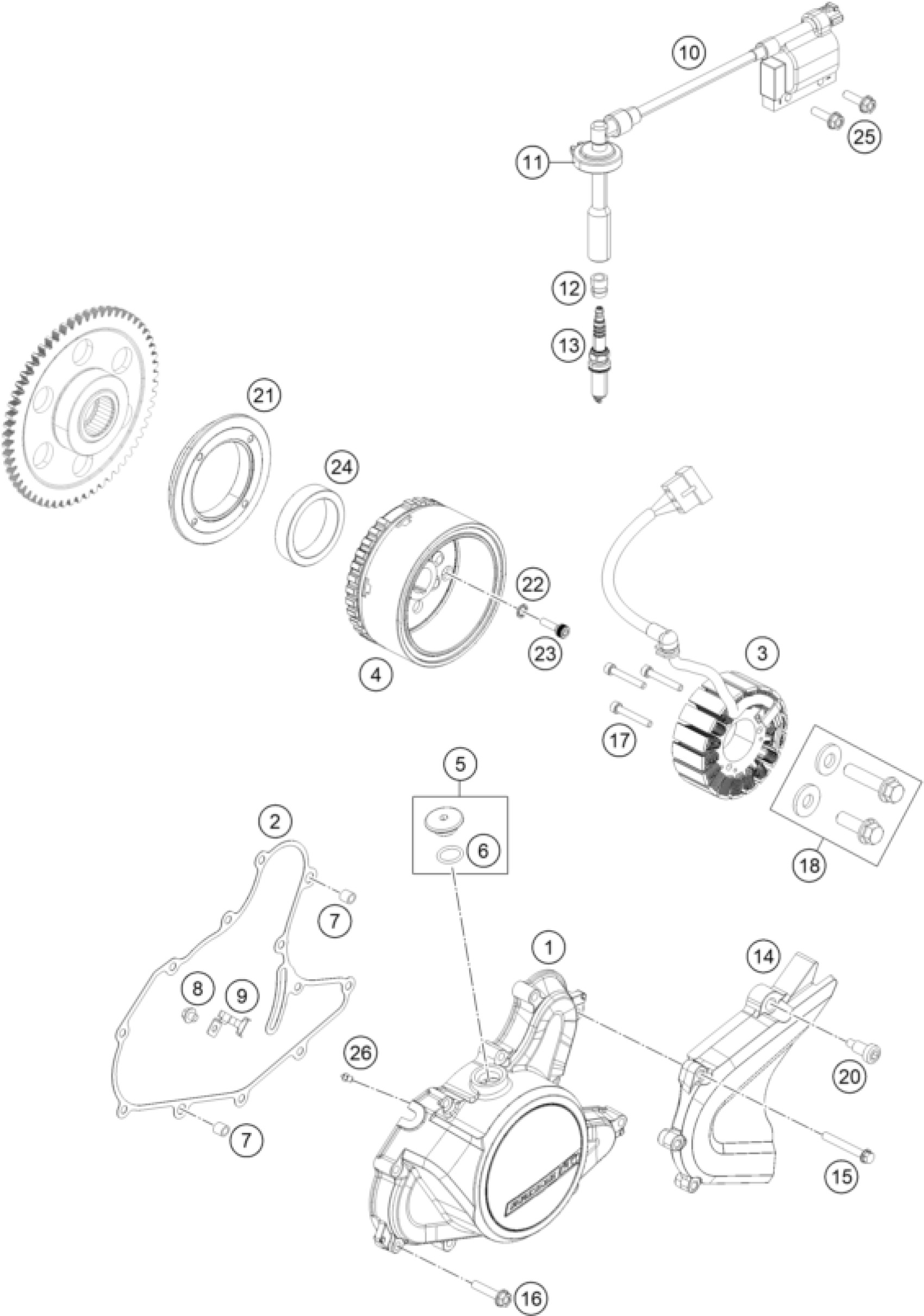

KTM 125 DUKE ORANGE ABS 2016 IGNITION SYSTEM Diagram

#

Description

Price

1

IGNITION COVER WITH PLUG

90130002110

Unavailable

2

IGNITION COVER GASKET

90130040000

Unavailable

3

STATOR CPL.

90139004000

Unavailable

4

ROTOR CPL.

90139005100

Unavailable

5

PLUG INCL. O-RING

90130002010

$4.11

6

O-RING 15,8X2,4

J770015824

$1.49

7

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

8

HH COLLAR SCREW M5X6

J025060083S

$1.49

9

BRACKET F. STATORCABLE

90139004002

$1.49

10

coil assembly ignition

90139090033

Unavailable

11

GASKET SPARK PLUG CONNECT.

90139090001

$2.05

12

RUBBER GASKET SPARK PLUG

90139093001

$2.05

13

SPARK PLUG M12X1,25

90239093000

$8.22

14

CHAIN SPROCKET GUARD

90103096000

$8.31

15

HH COLLAR SCREW M6X45

J025060451

$1.49

16

HH COLLAR SCREW M6X30

J025060301

$1.49

17

AH SCREW M5X35 SELF LOCKING

J912050353S

$1.49

18

SCREW DRIVE GEAR KIT

90130018044

$9.20

20

special screw M6x24 WS6

90104060010

$1.49

21

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

22

TOOTHED LOCK WASHER

90130001002

$1.49

23

SOCKET HEAD SCREW M6X20

90130001001

$1.49

24

FREEWHEEL CLUTCH

90140026000

$97.42

25

HH COLLAR SCREW M6X20

J025060209

$1.49

26

OIL NOZZLE

90130164000

$27.57
