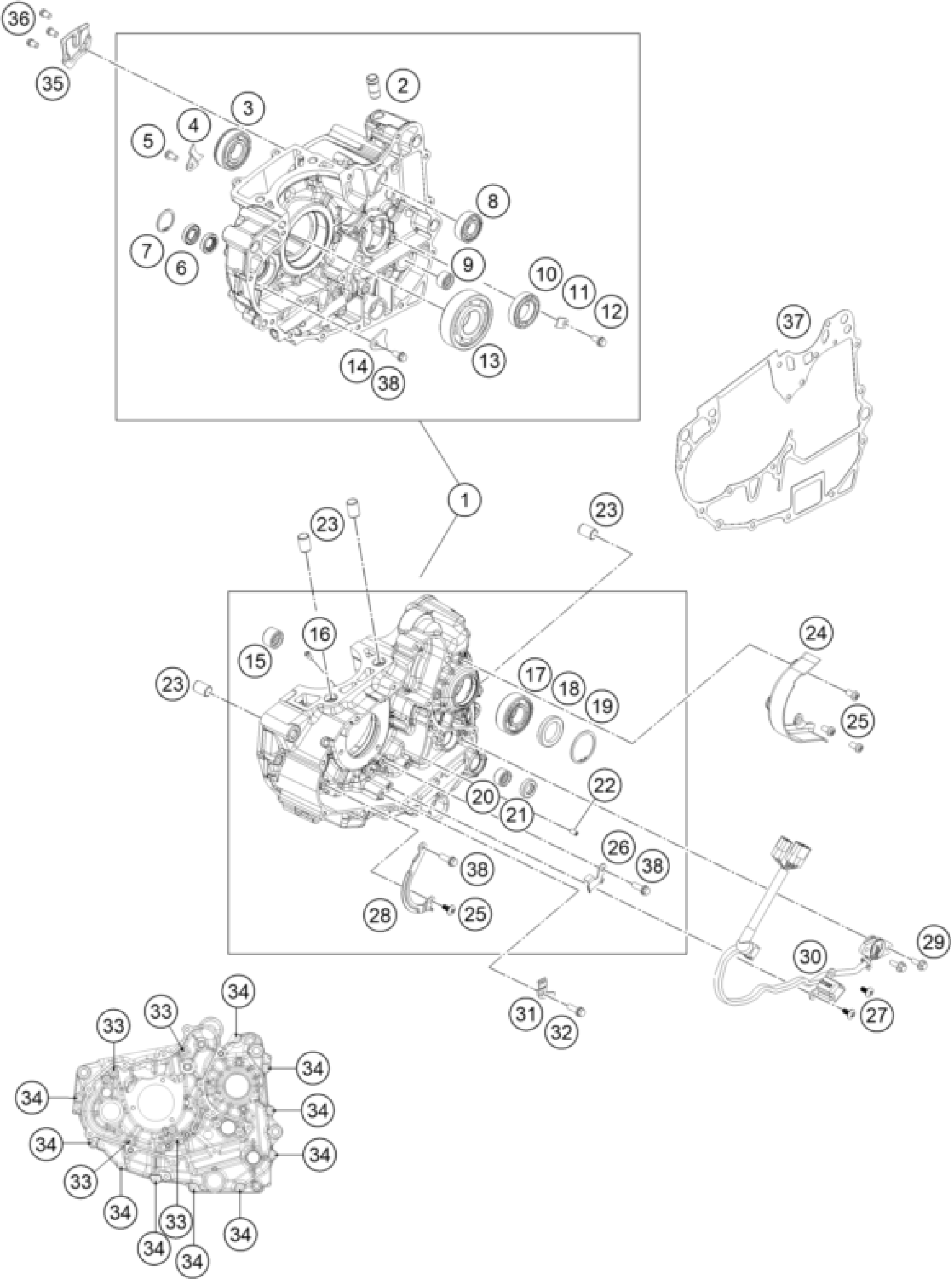

KTM 125 DUKE ORANGE ABS 2016 ENGINE CASE Diagram

#

Description

Price

24

CHAIN GUARD

90130047000

Unavailable

25

SCREW PAN CROSS M6X12 PH SS

J005060123S

Unavailable

27

HH COLLAR SCREW M5X13 SW8

J011050133

Unavailable

29

HH-COLLAR SCREW M5X16 WS8

J025050163

Unavailable

1

ENGINE CASE CPL.

90130000244

Unavailable

2

VENTILATION CONNECTOR

90130022000

Unavailable

3

GROOVED BALL BEARING 6204

J625062040

Unavailable

4

LOCK WASHER F.BEARING DRIVE

90130004002

Unavailable

5

FLAT HEAD SCREW M6X12 PH

J005160123

Unavailable

6

SHAFT SEALING RING 12X24X5,5

J760122455

Unavailable

7

CIRCLIP 25X1,2

J472025120

Unavailable

8

BALL BEARING 15X35X11

90130004003

Unavailable

9

NEEDLE ROLLER BEARING HK1312

J618131912

Unavailable

10

Bearing ball

90130004004

Unavailable

11

LOCK WASHER

90130078000

Unavailable

12

FLANGED BOLT 6X12

90130078001

Unavailable

13

BALL BEARING 63/2/8 HN3CNP

90130082000

Unavailable

14

STOPPER BALANCER SHAFT BEARING

90230079000

Unavailable

15

NEEDLE BEAR. HK1514RS 15X21X14

J618152114

Unavailable

16

OIL NOZZLE

90130164000

Unavailable

17

BALL BEARING 6204-Z/HN3

J625062041

Unavailable

18

OIL SEAL OUTPUT SHAFT

90230077000

Unavailable

19

CIRCLIP 37X1,5

J472037150

Unavailable

20

NEEDLE ROLLER BEARING HK1312

J618131912

Unavailable

21

Seal - oil

90130003004

Unavailable

22

OILJET

90130058000

Unavailable

33

HH COLLAR SCREW M6X60 SW10

J025060606

Unavailable

34

HH COLLAR SCREW M6X40

J025060401

Unavailable

35

BREATHER PLATE

90630042000

Unavailable

23

DOWEL D14

90130003007

Unavailable

26

CABLE SUPPORT BELOW

90130003005

Unavailable

28

Bracket harness upper

90530003001

Unavailable

30

GEAR-POS.SENSOR INL.PULS. COIL

90111023000

Unavailable

31

BRACKET F. FREE WHEEL GEAR

90140020002

Unavailable

32

HH-COLLAR SCREW M6X16 WS8

J028060163

Unavailable

36

PAN CROSS SCREW M5X10 PH

J985050103

Unavailable

37

ENGINE CASE GASKET

90630039000

Unavailable

38

FLANGED BOLT 6X12

90130078001

Unavailable
