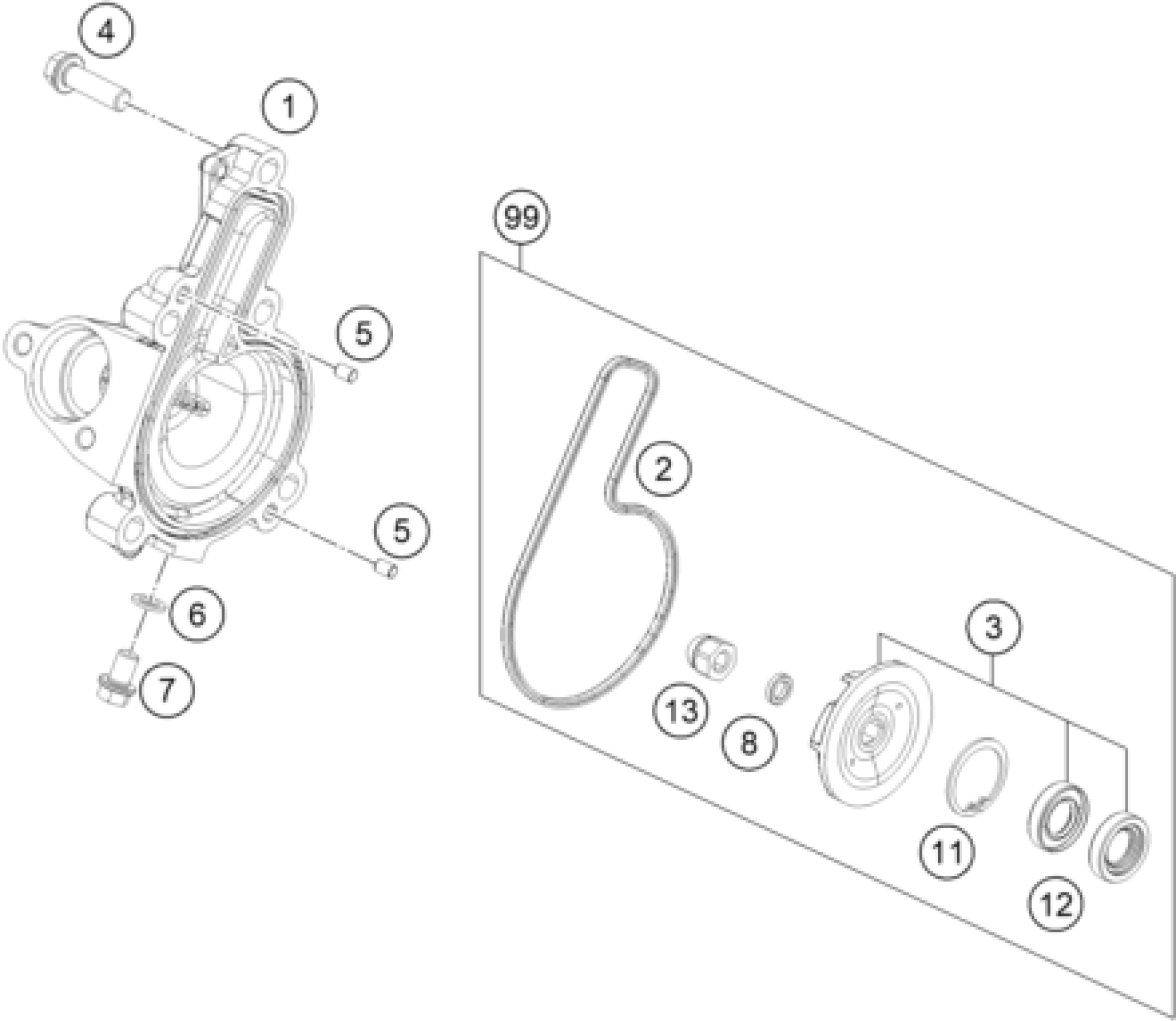

KTM 125 DUKE ORANGE ABS 2015 WATER PUMP Diagram

#

Description

Price

1

WATERPUMP COVER

90135052000

$23.37

2

WATER PUMP COVER GASKET

90135053000

$6.54

3

KIT WATER PUMP ROTOR & SEAL

90135055044

$7.10

4

HH COLLAR SCREW M6X20

J025060201

$1.49

5

Parallel pin

90134013000

$1.49

6

COPPER GASKET

J603061001

$1.49

7

BOLT M6X10

90110057000

$1.49

8

SPACER SHIM

90130055006

$3.08

11

CIRCLIP 25X1,2

J472025120

$1.49

12

SHAFT SEALING RING 12X24X5,5

J760122455

$7.75

13

DOME NUT WAPU-WHEEL

90135058000

$1.49

99

WATER PUMP REP. KIT DUKE

90135055110

Unavailable
