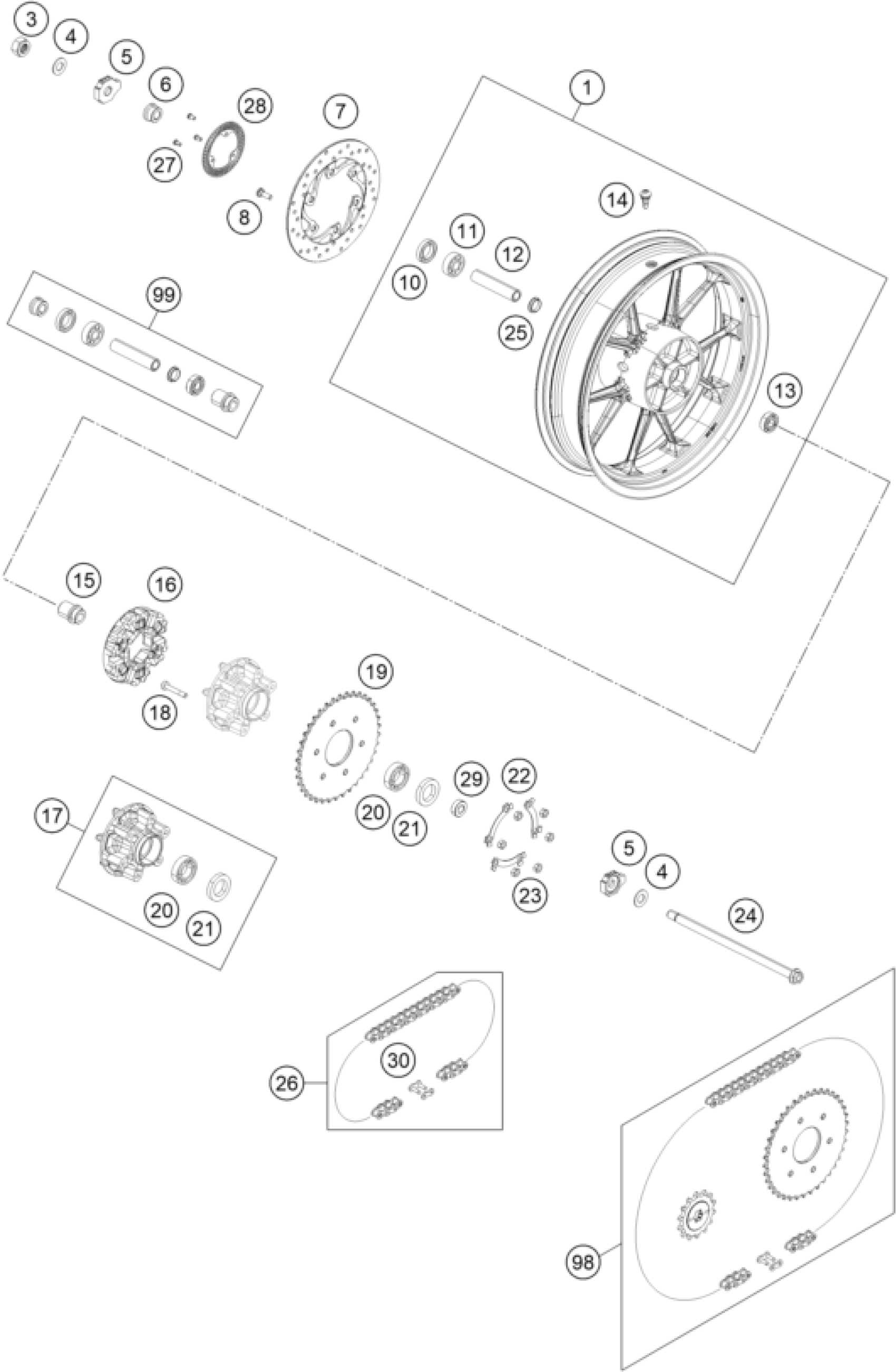

KTM 125 DUKE ORANGE ABS 2014 REAR WHEEL Diagram

#

Description

Price

1

REAR WHEEL CPL. - BLACK

9021000104430

Unavailable

3

wheel spindle nut, rear

90210086000

$3.08

4

washer 15.2x30x2

90610087000

$1.49

5

chain tension adjuster, right

90110084000

$7.10

6

SPACER BUSHING REAR WHEEL R/S

90110013000

$6.54

7

rear brake disk D=230mm

90110060000

$76.94

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

10

SHAFT SEAL RING 26X42X8

J760264208

$3.08

11

BALL BEARING 6302

J625063020

$13.64

12

BEARING SPACER TUBE REAR

90110011000

$12.61

13

BALL BEARING 6202

J625062021

$11.40

14

VALVE CPL.

90109076000

$7.10

15

SPACER BUSHING KRT INSIDE

90610054000

$10.09

16

DAMPER

90110059100

Unavailable

17

SPROCKET SUPPORT

90210050000

$57.96

18

SPECIAL SCREW M8X48

90810052000

$2.05

19

SPROCKET REAR 45T.

90210051045

$61.80

20

BALL BEARING 6205

J625062050

$14.86

21

SHAFT SEAL RING 29X52X7

J760295207

$5.23

22

LOCK WASHER SPROCKET

90610053000

$1.49

23

HEX NUT M8 SW13

J934080003

$1.49

24

Axle rear KT03

90210085000

$16.07

25

Fixation bearing spacer tube

90109011001

$1.49

26

chain DID 118 roll

76910065118

$128.83

27

SCREW FOR ABS

90142021001

$1.49

28

SENSOR DISC REAR

90142021000

$8.13

29

SPACER CHAIN WHEEL SUPPORT

90110053000

$5.23

98

DRIVETRAIN KIT 125DUKE 14T/45T

00050002040

Unavailable

99

REAR WHEEL REP. KIT 390 DUKE

90110015100

Unavailable

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable
