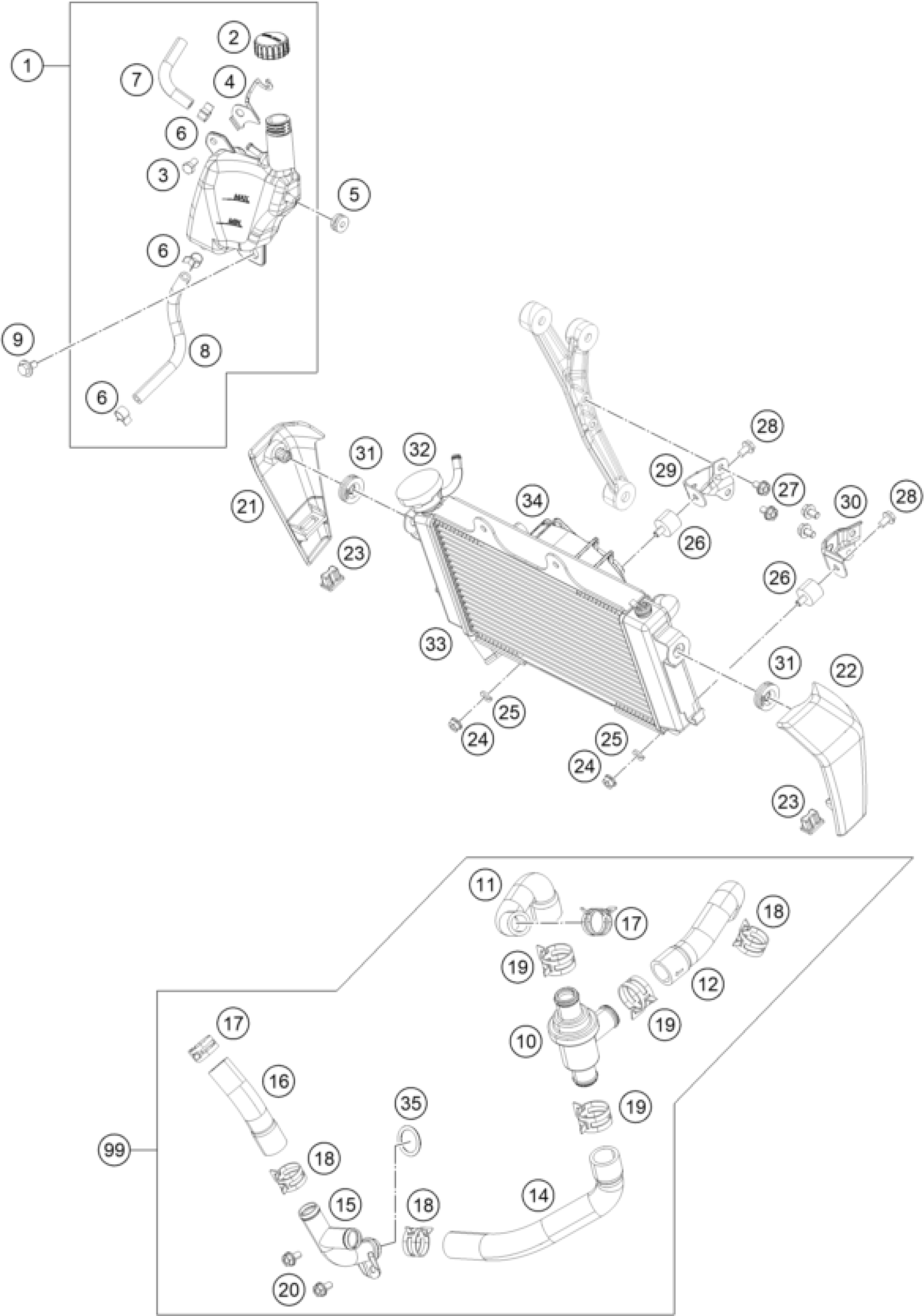

KTM 125 DUKE ORANGE ABS 2014 COOLING SYSTEM Diagram

#

Description

Price

21

RADIATOR PROTECTOR R/S

90108061000

$5.23

22

RADIATOR PROTECTOR L/S

90108060000

$5.23

23

DAMP. RUBBER II RADIATOR PROT

90108060002

$1.49

24

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

25

WASHER SPRING B6

J127060003

$1.49

26

silentbloc M6

90135001001

$5.32

27

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

28

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

29

RADIATOR SUPPORT R/S BELOW

90103006001

Unavailable

30

RADIATORSUPPORT L/S BELOW

90103005001

$2.05

31

DAMPING RUBBER I RADIATOR PROT

90108060001

$1.49

32

RADIATOR CAP

90135016100

$17.20

99

COOLING HOSE KIT DUKE

90135017110

Unavailable

33

RADIATOR CPL. WITH FAN

90135010000

Unavailable

34

FAN RADIATOR CPL.

90135041133

Unavailable

35

O-RING 18,5X3

J770018530

$2.05

1

EXPANSION RESERVOIR CPL.

90135065033

$26.92

2

PLUG F. EXPANSION TANK

90135066000

$3.08

3

HH COLLAR SCREW M6X12 SW10

J025060126

$1.49

4

BRACKET TUBE DRAIN

90103001033

$3.08

5

GROMMET EXPANSION TANK

90135065050

$1.49

6

CLAMP 10MM

90107018011

$2.05

7

HOSE 6X10,5X80 MM

90135067000

$1.49

8

HOSE 6X10X154 MM

90135067050

$2.05

9

SPECIAL SCREW M6X12 FLANGED

90135074000

$2.05

10

THERMOSTAT

90135017000

$33.56

11

RADIATORHOSE THERM.-RADIATOR

90135024020

Unavailable

12

COOLING HOSE ENGINE - THERM.

90135025100

Unavailable

14

RADIATORHOSE THERM.-COOL.PIPE

90135024010

Unavailable

15

COOLING PIPE ''T'' CPL.

90135026000

$31.78

16

RADIATORHOSE RADI.-COOLL.'' T

90135024030

$5.23

17

HOSE CLAMP D23

90135020000

$3.08

18

hose clamp D26

90135020001

$3.08

19

HOSE CLAMP D28

90135020003

$3.08

20

HH COLLAR SCREW M6X12 SW10

J025060126

$1.49
