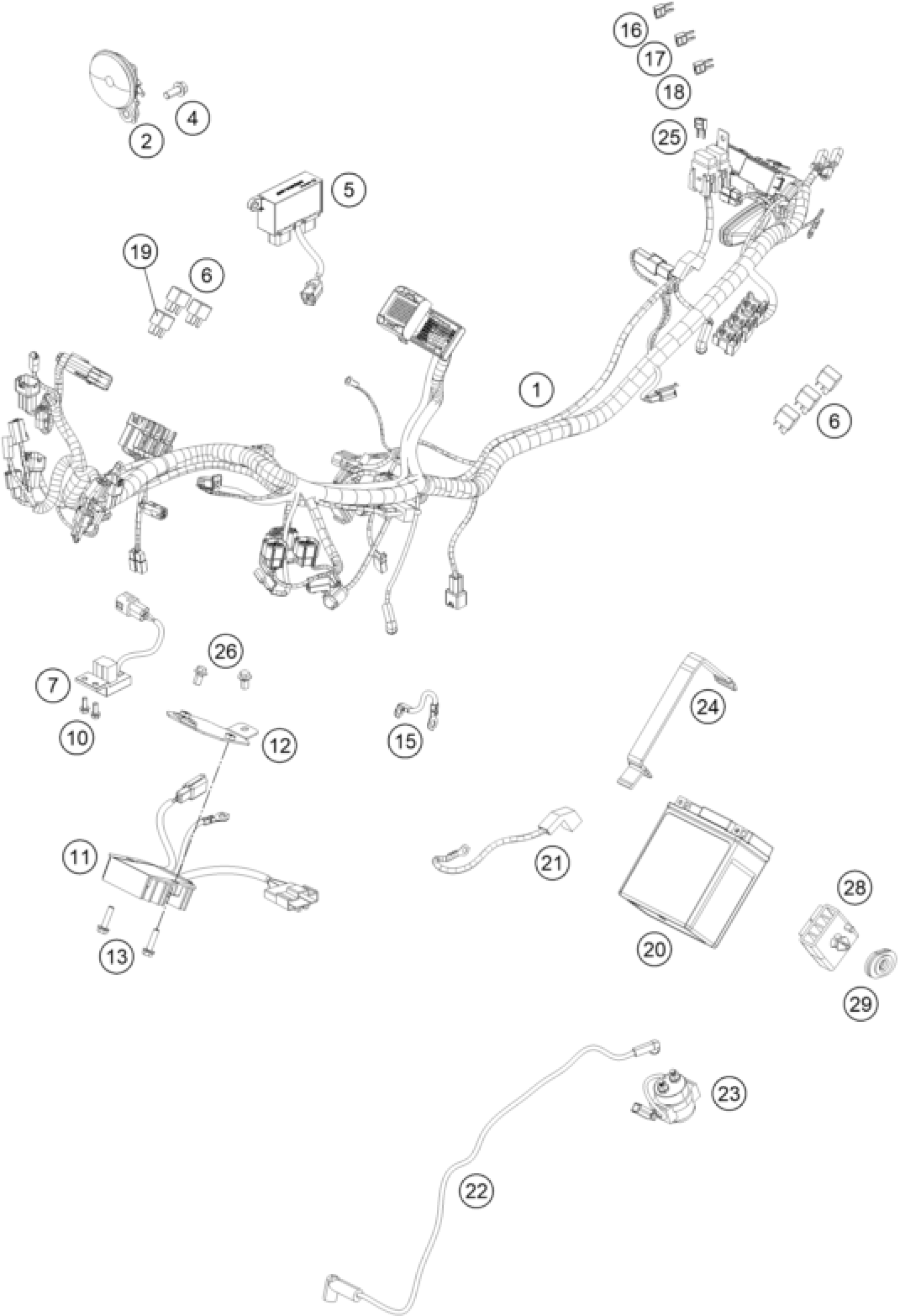

KTM 125 DUKE ORANGE ABS 2013 WIRING HARNESS Diagram

#

Description
Price

26

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

1

WIRING HARNESS

90111275000

Unavailable

2

HORN 82 DIA

90111060100

$22.81

3

WASHER 8,2X16X1,5

J125080003

$1.49

4

HH COLLAR SCREW M8X20 SW12

J025080203

$1.49

5

INTEGRAL UNIT

90611035000

$79.09

6

relay (interlock)

90611057000

$24.49

7

ROLL OVER SENSOR

90141088000

$31.88

10

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

11

VOLTAGE REGULATOR

90111034000

$134.26

12

BRACKET REGULATOR MTG

90111134010

$5.23

13

bolt flanged M6X25

J025060253

$1.49

15

GROUND CABLE

90111197000

Unavailable

16

FUSE 10A 07

75011088010

$4.11

17

FUSE 15A 07

75011088015

$4.11

18

FUSE 30A

75011088030

$3.08

19

RELAY (AUX1DIODE)

90611157000

$24.58

20

BATTERY

90111053000

Unavailable

21

GROUND CABLE

90111097000

Unavailable

22

STARTER CABLE

90111059000

$12.05

23

STARTER RELAY

90111058000

$25.80

24

BRACKET RUBBER FOR BATTERY

90111054000

$5.23

25

FUSE 25A

90111088025

Unavailable

28

BATTERY RUBBER HOLDER

90111055000

Unavailable

29

GROMMET

90108060003

$1.49
