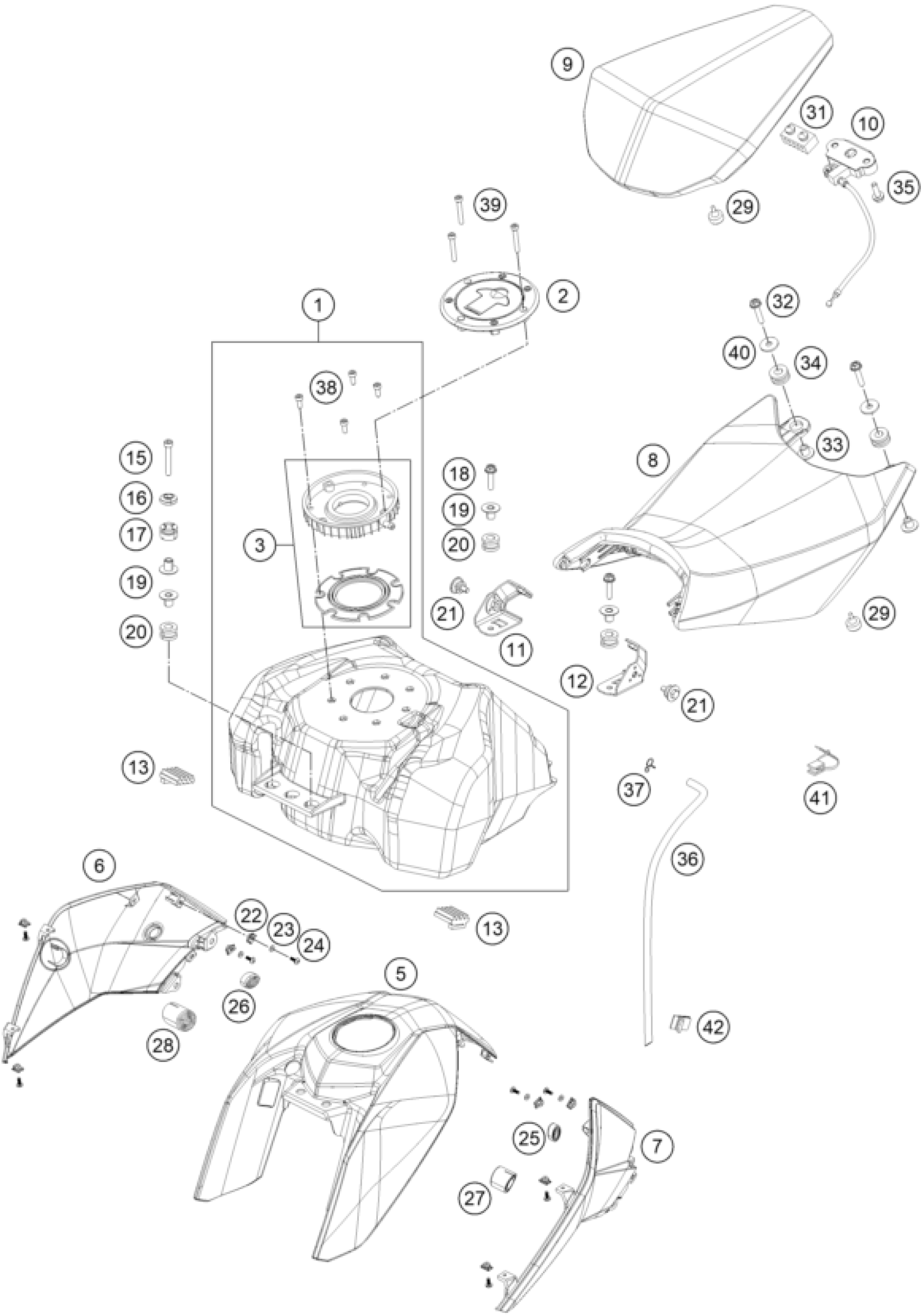

KTM 125 DUKE ORANGE ABS 2013 TANK, SEAT Diagram

#

Description

Price

1

FUEL TANK CPL.

90607013144

Unavailable

2

TANK CAP

90607008000

Unavailable

3

CUP CAP WITH GASKET

90107008144

Unavailable

5

COVER FUEL TANK TOP ORANGE

9010804900004

Unavailable

6

COVER FUEL TANK R/S BLACK MAT

9010805100047

$37.77

7

COVER FUEL TANK L/S BLACK MAT

9010805000047

$34.31

8

SEAT

90107040000

$103.12

9

PASSENGER SEAT

90107047000

$96.30

10

SEAT UNLOCK SOZIUS

90107050000

$17.38

11

MOUNTING BRACKET R/S -SEAT

90107040020

$5.23

12

MOUNTING BRACKET L/S -SEAT

90107040010

$5.23

13

TANK REST RUBBER

90107013003

$4.11

15

AH SCREW M6X40

90107036000

$1.49

16

SPECIAL WASHER F. M6 D=20MM

90108045000

$5.23

17

GROMMET TOP COVER

90107013004

$2.05

18

bolt flanged M6X25

J025060253

$1.49

19

SLEEVE TANK MOUNTING

90107013005

$2.05

20

GROMMET TANK MOUNTING

90107013006

$2.05

21

SPECIAL SCREW

90107040003

$6.35

22

CLIP NUT M5

90108050001

$2.05

23

SHIM PVC 5,3X11,5X1,5

J125050001

$1.49

24

CHEESE-HEAD SCREW M5X15

J031050153

$1.49

25

TANK RUBBER PAD SMALL L/S

90107070000

$2.05

26

TANK RUBBER PAD SMALL R/S

90107071000

$2.05

27

TANK RUBBER PAD LARGE L/S

90107072000

$5.23

28

TANK RUBBER PAD LARGE R/S

90107073000

$5.23

29

SEAT RUBBER

90107046000

$1.49

31

SEATRUBBER REAR

90107046050

$1.49

32

SPECIAL SCREW M6X25

90107040004

$1.49

33

COLLAR BUSHING SEAT BRACKET

90107040002

$2.05

34

RUBBER SLEEVE

90107040001

$1.49

35

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

36

Tube drain cup cap

90107013007

$3.08

37

CLAMP

90107013008

$1.49

38

AH SCREW M5X10

J912050101

$2.05

39

AH SCREW M5X28

J912050283

$2.05

40

WASHER 7X22X2MM

J126072220

$1.49

41

CABLE TIE 190MM

90603096000

$2.05

42

BRACKET DRAIN TUBE CPL.

90107029000

$2.05
