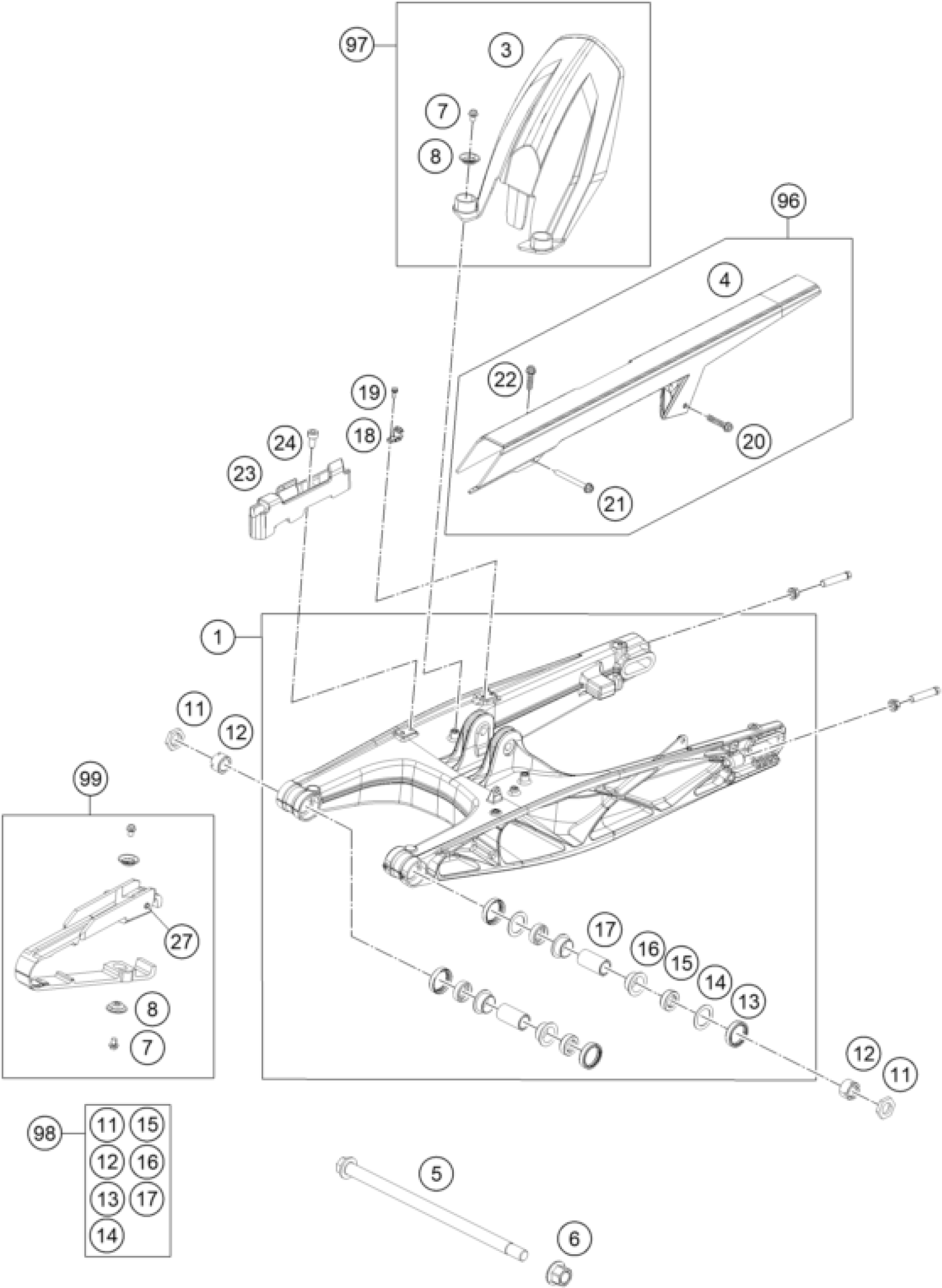

KTM 125 DUKE ORANGE ABS 2013 SWING ARM Diagram

#

Description

Price

1

SWING ARM CPL.

90504030044

$437.20

27

SLEEVE CHAIN GUARD

90104070020

$3.08

96

CHAIN PROTECTION KIT DUKE

90104060110

Unavailable

3

SPLASH PROTECTOR

90104050000

$12.05

4

CHAIN GUARD CPL.

90104060000

$15.89

5

Shaft swing arm L=299mm

90104037000

$17.76

6

FLANGED NUT M14X1.5

90104038000

$3.08

7

HH COLLAR SCREW M6X8 SW8

J025060083

$1.49

8

BUCKET

90104067000

$3.08

9

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

10

flanged hex nut M10x1.25 WS13

90104010002

$2.05

11

hex thrust washer

90104042000

$3.64

12

swingarm adjusting ring

90104046000

$5.88

13

OIL SEAL RING 25X32X7

90104034001

$3.08

14

Thrust washer 22.2x31.7x1

90104036000

$1.49

15

cup for radial shaft seal

90104034000

$4.11

16

Igus plain bearing

90104031000

$5.23

17

sleeve bushing 15.1x20x38

90104032000

$6.63

18

brake hose guide

90113047000

$1.49

19

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

20

Special screw K60X30 WS=6

0017060305

$2.05

21

HH COLLAR SCREW M5X50 SW8

J025050503

$1.49

22

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

99

CHAIN GUARD KIT

90104066110

Unavailable

23

brake hose guide

90113147000

$4.11

24

AH SCREW M5X10

J912050101

$2.05

97

SPLASH GUARD KIT 390 DUKE

90106010010

Unavailable
