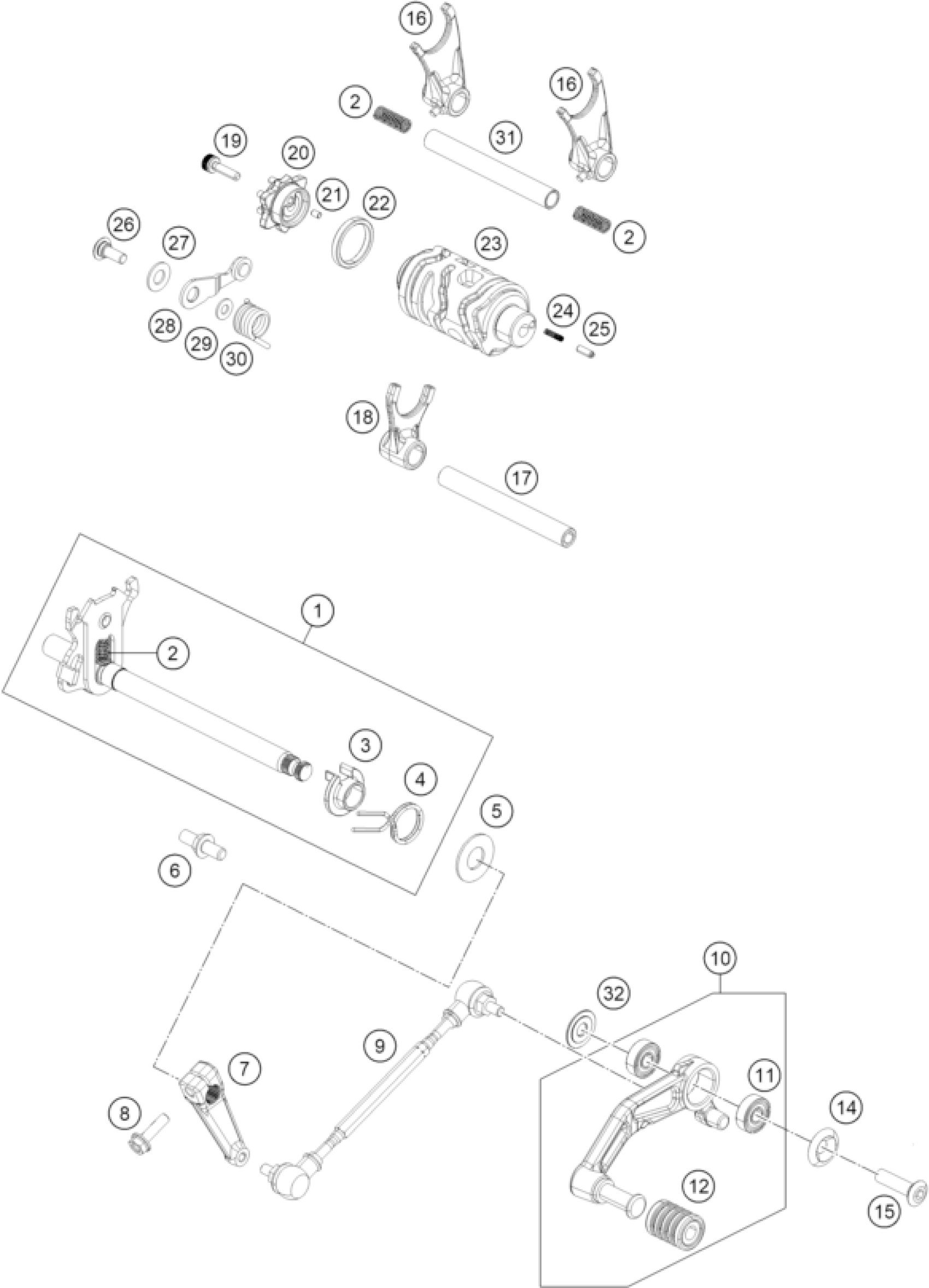

KTM 125 DUKE ORANGE ABS 2013 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90134005033

Unavailable

2

TENSION SPRING

90134009000

Unavailable

3

SPRING BUSHING

90134022000

Unavailable

4

RETURN SPRING

90134014000

Unavailable

5

STOP DISK 14X30X1,5

90134050000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

7

BAFFLE SHIFT LEVER

90634031010

Unavailable

8

HH COLLAR SCREW M6X22 SW10

J025060223

Unavailable

9

TENSION ROD CPL.

90634040033

Unavailable

10

SHIFTING LEVER CPL.

90134031133

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

GEAR SHIFT LEVER RUBBER

90134035000

Unavailable

14

SPACER SHIFTING LEVER

90134031103

Unavailable

15

HH COLLAR SCREW M8X30 SW10

90134034100

Unavailable

16

SHIFT FORK COUNTER

90134002000

Unavailable

17

GEAR SHIFT RAIL

90134019000

Unavailable

18

SHIFT FORK MAIN

90134001000

Unavailable

19

AH SCREW M6X20 SELF LOCKING

90134015003

Unavailable

20

SHIFT DRUM LOCATING

90134015000

Unavailable

21

Parallel pin

90134013000

Unavailable

22

SPACER

90134012002

Unavailable

23

SHIFT ROLLER

90134012000

Unavailable

24

CONTACT SPRING

90134012003

Unavailable

25

BOLT FOR GEAR INDICATOR

90134012001

Unavailable

26

SCREW LOCKING LEVER

90134025000

Unavailable

27

WASHER LOCKING LEVER

90134030000

Unavailable

28

LOCKING LEVER CPL.

90134024033

Unavailable

29

WASHER 6X12,8X1,2

90134039000

Unavailable

30

ARRESTING LEVER SPRING

90134023000

Unavailable

31

GEAR SHIFT RAIL COUNTER

90134190000

Unavailable

32

thrust washer, gear shift leve

90134031020

Unavailable
