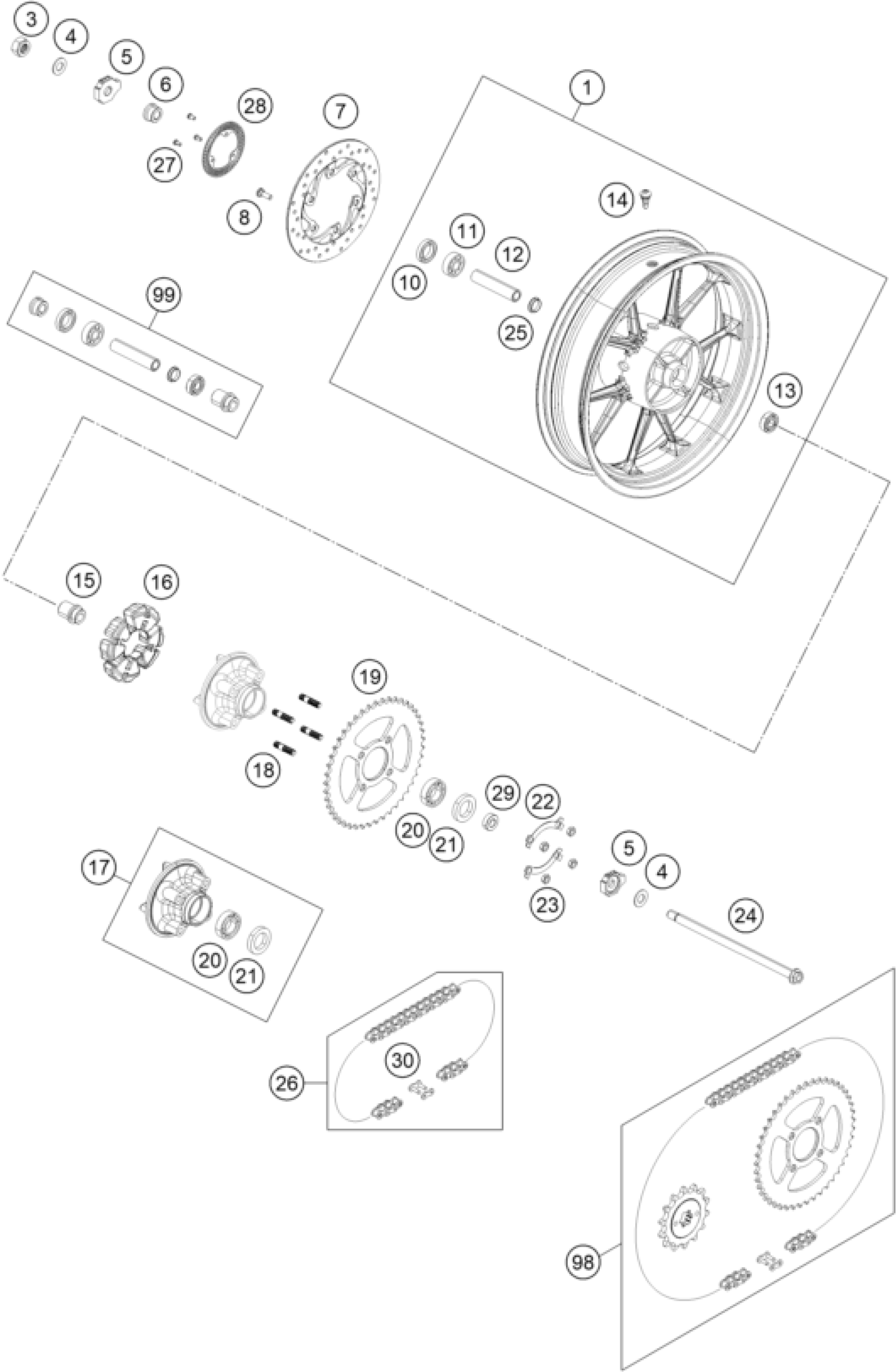

KTM 125 DUKE ORANGE ABS 2013 REAR WHEEL Diagram

#

Description

Price

29

SPACER CHAIN WHEEL SUPPORT

90110053000

Unavailable

1

REAR WHEEL CPL.

90110001144

Unavailable

3

wheel spindle nut, rear

90210086000

Unavailable

4

WASHER 15,2X30X2MM

90110087000

Unavailable

5

chain tension adjuster, right

90110084000

Unavailable

6

SPACER BUSHING REAR WHEEL R/S

90110013000

Unavailable

7

rear brake disk D=230mm

90110060000

Unavailable

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

Unavailable

10

SHAFT SEAL RING 26X42X8

J760264208

Unavailable

11

BALL BEARING 6302

J625063020

Unavailable

12

BEARING SPACER TUBE REAR

90110011000

Unavailable

13

BALL BEARING 6202

J625062021

Unavailable

14

VALVE CPL.

90109076000

Unavailable

15

SPACER BUSHING KRT INSIDE

90110054000

Unavailable

16

DAMPING RUBBER

90110059000

Unavailable

17

SPROCKET SUPPORT

90110050000

Unavailable

18

STUD M10

90110052050

Unavailable

19

SPROCKET 45 T.

90110051045

Unavailable

20

BALL BEARING 6005 RS

J625060050

Unavailable

21

SHAFT SEAL RING 30X47X8

J760304708

Unavailable

22

TWIST LOCK WASHER

90110051002

Unavailable

23

FLANGED NUT M10X1,25 H6 WS14

90110052000

Unavailable

24

Axle rear KT03

90210085000

Unavailable

25

Fixation bearing spacer tube

90109011001

Unavailable

26

chain DID 118 roll

76910065118

Unavailable

98

DRIVETRAIN KIT 125 DUKE14T/45T

00050002017

Unavailable

99

REAR WHEEL REP. KIT

90110015000

Unavailable

27

SCREW FOR ABS

90142021001

Unavailable

28

SENSOR DISC REAR

90142021000

Unavailable

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable
