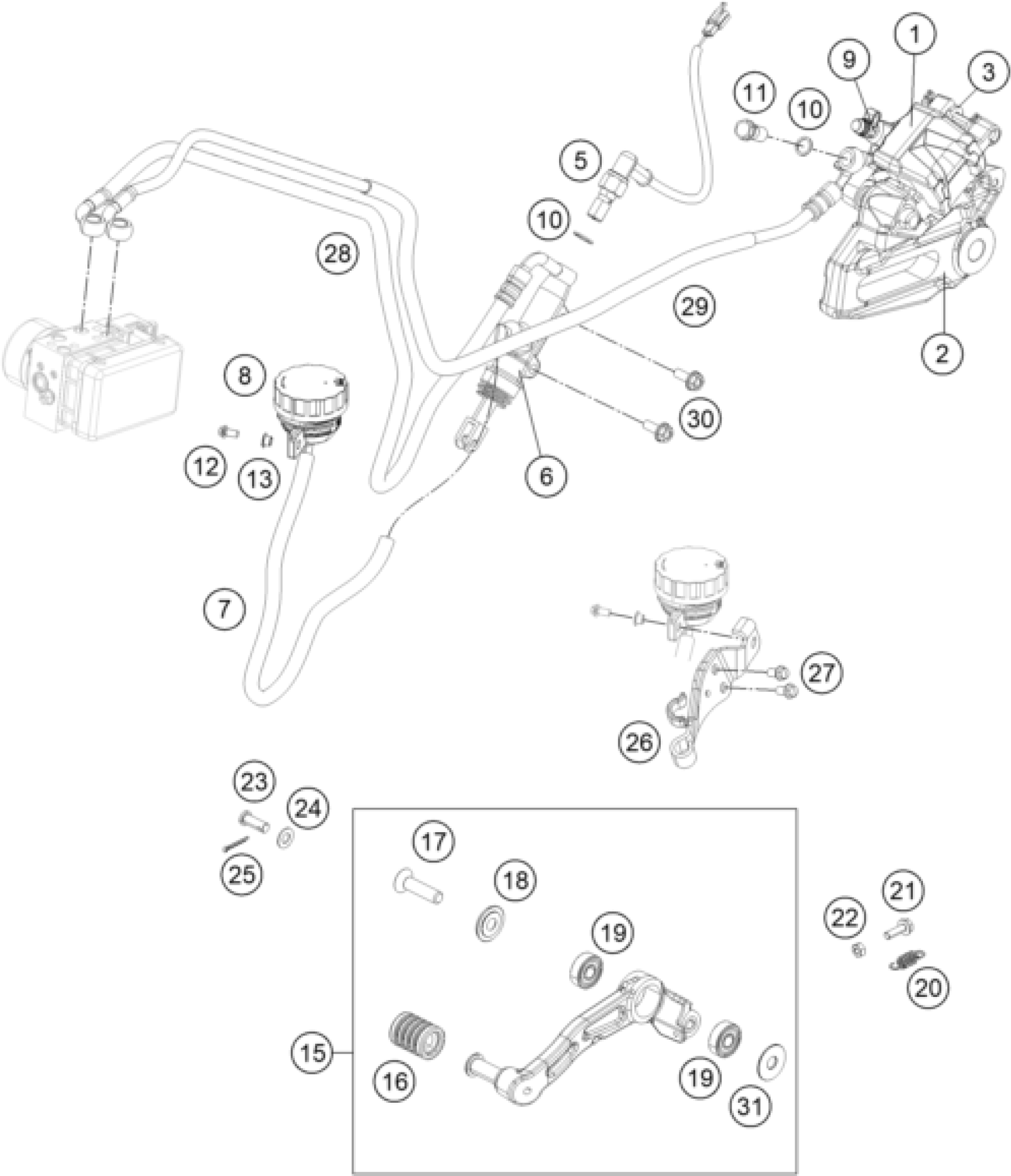

KTM 125 DUKE ORANGE ABS 2013 REAR BRAKE CALIPER Diagram

#

Description

Price

30

HH COLLAR SCREW M6X16 SW10

J025060163

$1.49

31

thrust washer, gear shift leve

90134031020

$2.05

1

brake caliper, rear cpl.

90113080000

$278.34

2

BRAKE CALIPER SUPPORT REAR ABS

90613075000

$86.01

3

REAR BRAKE PADS - SET

90113090000

$28.42

28

BRAKE HOSE ABS/MASTER CYL. RR

90642003000

$97.51

5

brake light switch, rear

90111051000

$26.26

6

footbrake zylinder cpl.

90113060000

$63.10

7

HOSE F. RESERVOIR

90113069000

$5.23

8

BRAKE FLUID RESERVOIR CPL.

90113009000

$7.28

9

BLEEDER SCREW

90113121000

$3.08

10

COPPER GASKET

90113026000

$2.05

11

BANJO SCREW

90113013000

$3.08

12

HH COLLAR SCREW M6X16 SW10

J025060163

$1.49

13

COLLAR BUSHING

90114060003

$2.05

15

FOOT BRAKE LEVER CPL.

90113050133

$63.38

16

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

17

HH COLLAR SCREW M8X30 SW10

90134034100

Unavailable

18

SPACER SHIFTING LEVER

90134031103

Unavailable

19

BALL BEARING 608

J625060800

$7.94

20

brake pedal spring

90113052000

$2.05

21

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

22

HEXAGON NUT M6

J934060003

$1.49

23

pin for fork end

90113057000

$1.49

24

PLAIN WASHER 6,5X13X1

J125060003

$1.49

25

splint pin 2x15mm

J094020153

$1.49

26

RETAINING PLATE RESERVOIR

90113174000

Unavailable

27

BOLT M6X10 PRECOATED

90113168001

$1.49

29

BRAKE HOSE RR ABS TO CALIPER

90642001000

$101.53
