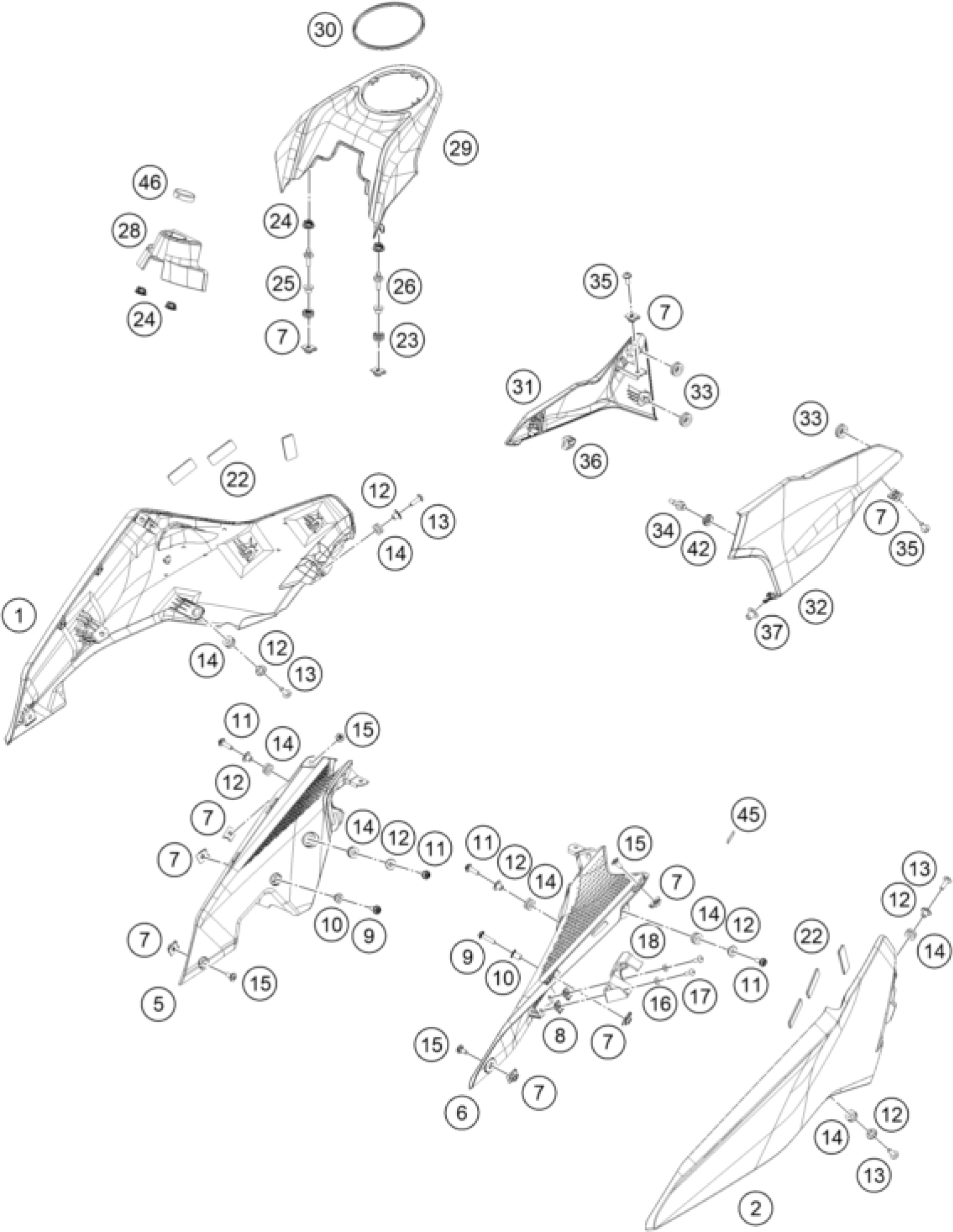

KTM 125 DUKE, orange 2024 COVER Diagram

#

Description

Price

1

Right fuel tank spoiler 125

96008051000EDA

Unavailable

2

Left fuel tank spoiler 125

96008050000EDA

Unavailable

5

Fuel tank fairing right

96308063000

Unavailable

6

Fuel tank fairing left

96308062000

Unavailable

7

Range change metal nut M6

93008084010

$1.49

9

screw socket M6x1

J900000602507

Unavailable

10

COLLAR WIND SHIELD

J800000701501

Unavailable

11

socket screw M6x20

J900000602005

Unavailable

12

Collar head lamp holder MTG

93014018100

$1.49

13

AH SCREW M6X1X20

90508006003

$4.11

14

Rubber bushing

93014017000

$1.49

15

screw socket step M6x1

J900000601501

Unavailable

16

washer M5x0,8

J690000600102

Unavailable

17

screw truss M5x0.8xl14xcl4.8xb

J900000501405

Unavailable

18

BCCU bracket

96308062010

Unavailable

22

Tank support rubber

95807012020

$1.49

23

grommet

J650001801400

$1.49

24

Rubber grommet ignition lock c

93011068010

$1.49

25

bushing fuel tank spoiler

J800000701001

Unavailable

26

pin quick release M6

96307064100

Unavailable

28

Ignition lock cover

96311068000

Unavailable

29

COVER CAP

96307058000

Unavailable

30

seal fuel tank cover

96307058010

Unavailable

31

Side fairing right

96308042000CCA

Unavailable

32

Side fairing left

96308041000CCA

Unavailable

33

GROMMET

J650002201400

$1.49

34

pin quick release M8

96308077000

Unavailable

35

SPECIAL SCREW M6X1X16

90808043000

$1.49

36

cap

96308042010

Unavailable

37

CAP

J660002001500

Unavailable

42

Rubber grommet

J650002001400

$1.49

45

SCHAUM

90135065090

Unavailable

46

grommet cover switch ignition

96311066010

Unavailable
