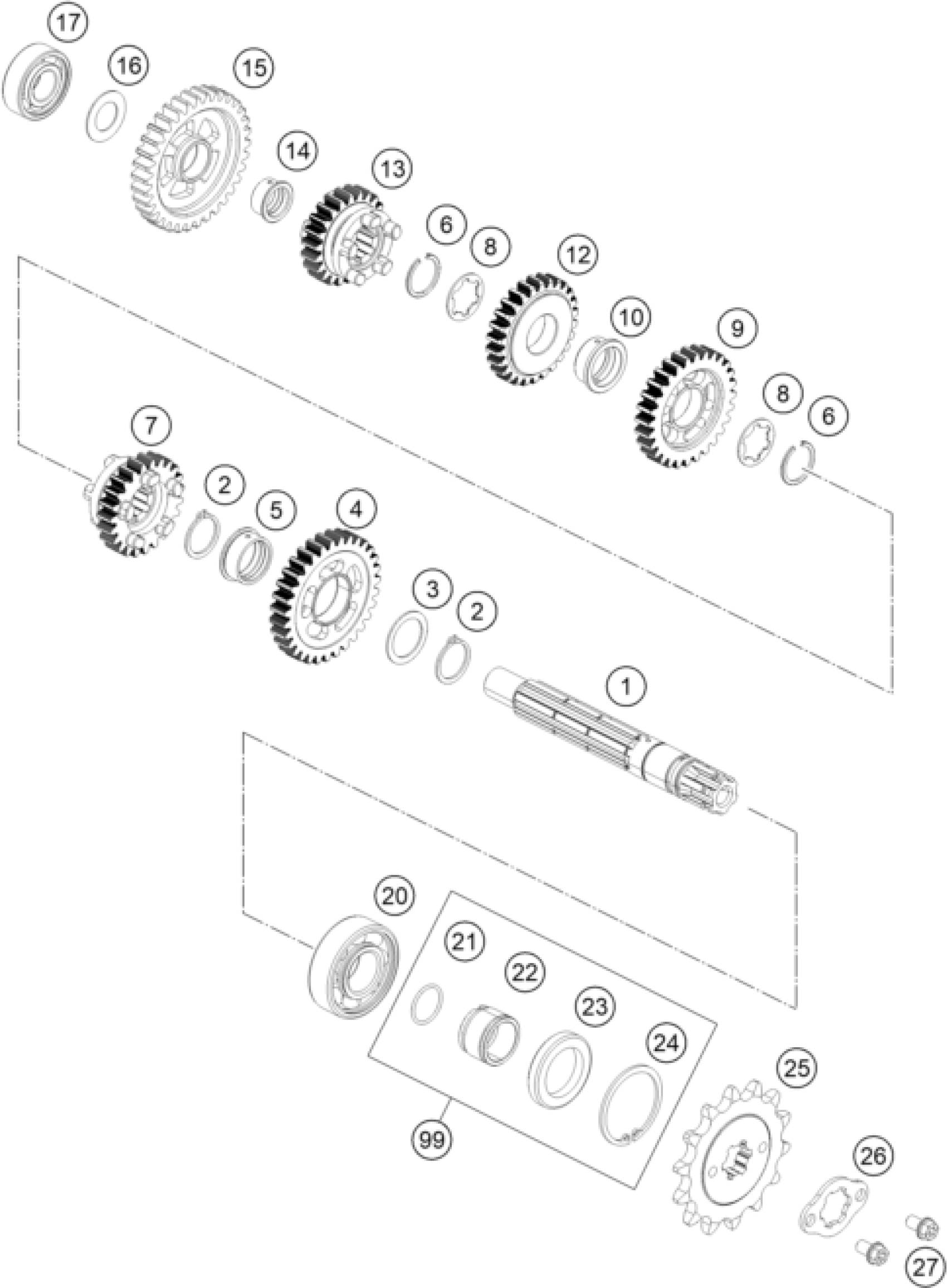

KTM 125 Duke, orange 2020 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Shaft Output-Plug

93533010000

$19.99

2

CIRCLIP 20X1,2

J471020121

$1.49

3

WASHER 20,2X27X1

90133034000

$1.49

4

gear driven second

90633012100

Unavailable

5

BUSHING

90133001003

$4.11

6

CIRCLIP 20X1,2

J471020122

$1.49

7

Transmission gear wheel, fifth

93033015000

$21.03

8

Washer

J900001602600

$1.49

9

Transmission gear wheel, third

93033013000

$20.47

10

Collar bushing

J900002001100

$4.11

12

COUNTERWHEEL 4. GEAR

90133014000

$18.50

13

Transmission gear wheel, sixth

93033016000

$21.31

14

BUSHING

90133001009

$3.08

15

COUNTERWHEEL 1. GEAR

90133011000

$22.81

16

Washer 15X26X0,8

J125150006

$1.49

17

BALL BEARING 15X35X11

90130004003

$7.56

20

BALL BEARING 6204-Z/HN3

J625062041

$11.12

21

O-RING 17,5X1,5

J770017515

$1.49

22

COLLAR SPROCKET

90133030000

$5.23

23

OIL SEAL OUTPUT SHAFT

90230077000

$4.11

24

CIRCLIP 37X1,5

J472037150

$1.49

25

SPROCKET 14T.

90133029014

$11.87

26

plate drive sprocket

90110049000

$1.49

27

BOLT M6X10

90110057000

$1.49

99

COUNTER SHAFT REP.KIT125DUKE

00050000982

Unavailable
