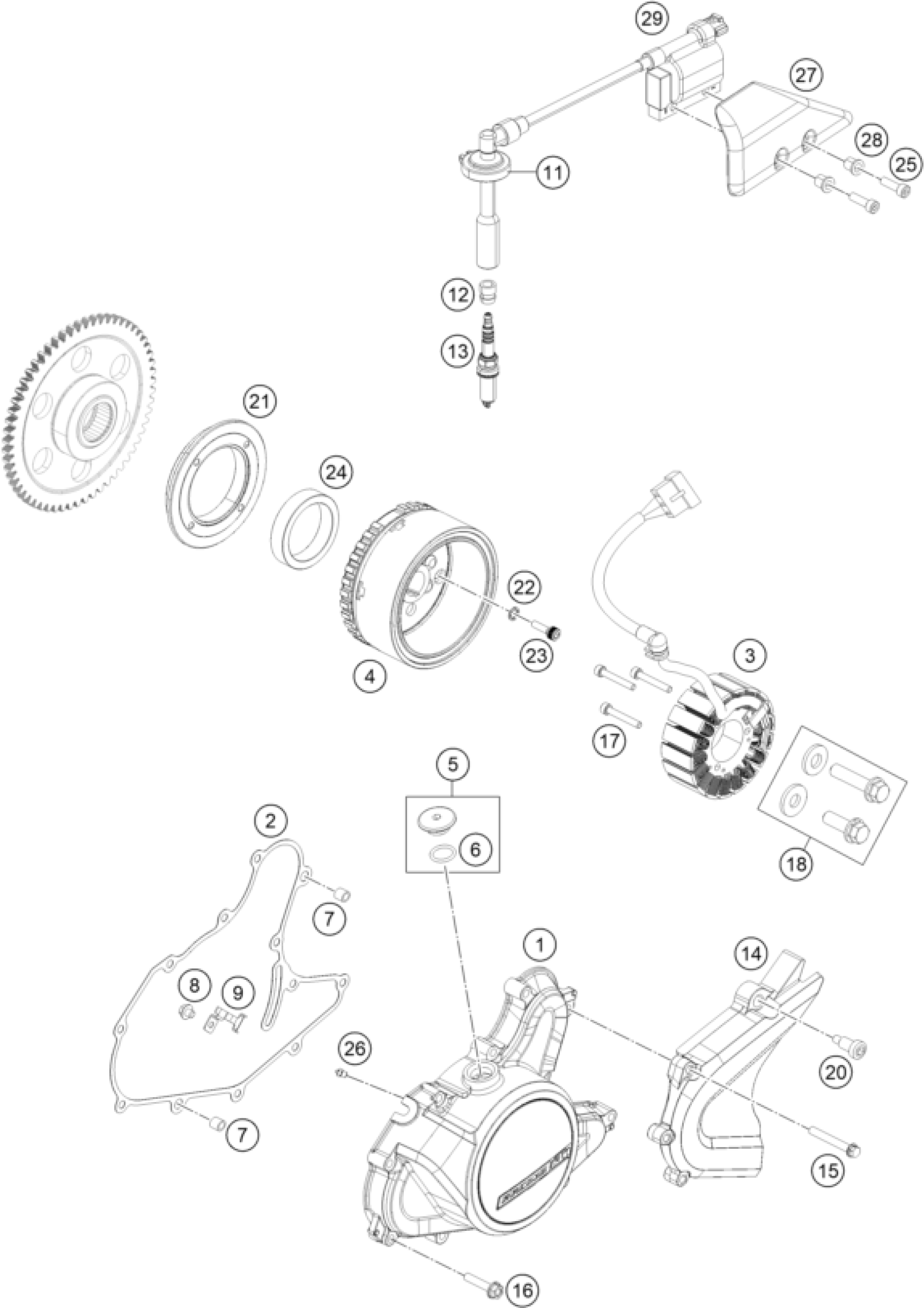

KTM 125 Duke, orange 2020 IGNITION SYSTEM Diagram

#

Description

Price

1

cover magneto-plug

93130102033

Unavailable

2

Ignition cover gasket

93530040100

Unavailable

3

STATOR ASSEMBLY

93139004000

Unavailable

4

Rotor, loose

93139005000

Unavailable

5

PLUG INCL. O-RING

90130002010

Unavailable

6

O-RING 15,8X2,4

J770015824

Unavailable

7

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

8

Hex collar screw M5X8

J025050081

Unavailable

9

BRACKET F. STATORCABLE

90139004002

Unavailable

11

GASKET SPARK PLUG CONNECT.

90139090001

Unavailable

12

Sealing boot spark plug

93839091000

Unavailable

13

SPARK PLUG M12X1,25

90239093000

Unavailable

14

CHAIN SPROCKET GUARD

90103096000

Unavailable

15

HH COLLAR SCREW M6X45

J025060451

Unavailable

16

HH COLLAR SCREW M6X30

J025060301

Unavailable

17

AH SCREW M5X35 SELF LOCKING

J912050353S

Unavailable

18

SCREW DRIVE GEAR KIT

90130018044

Unavailable

20

special screw M6x24 WS6

90104060010

Unavailable

21

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

22

TOOTHED WASHER M6

J797060003

Unavailable

23

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

24

FREEWHEEL CLUTCH

90140026000

Unavailable

25

Hexagon screw M6X35

J912060353

Unavailable

26

OIL NOZZLE

90130164000

Unavailable

27

cover ingition coil

93039010000

Unavailable

28

sleeve cover ignition coil

93039011000

Unavailable

29

coil assembly ignition

93039006033

Unavailable
