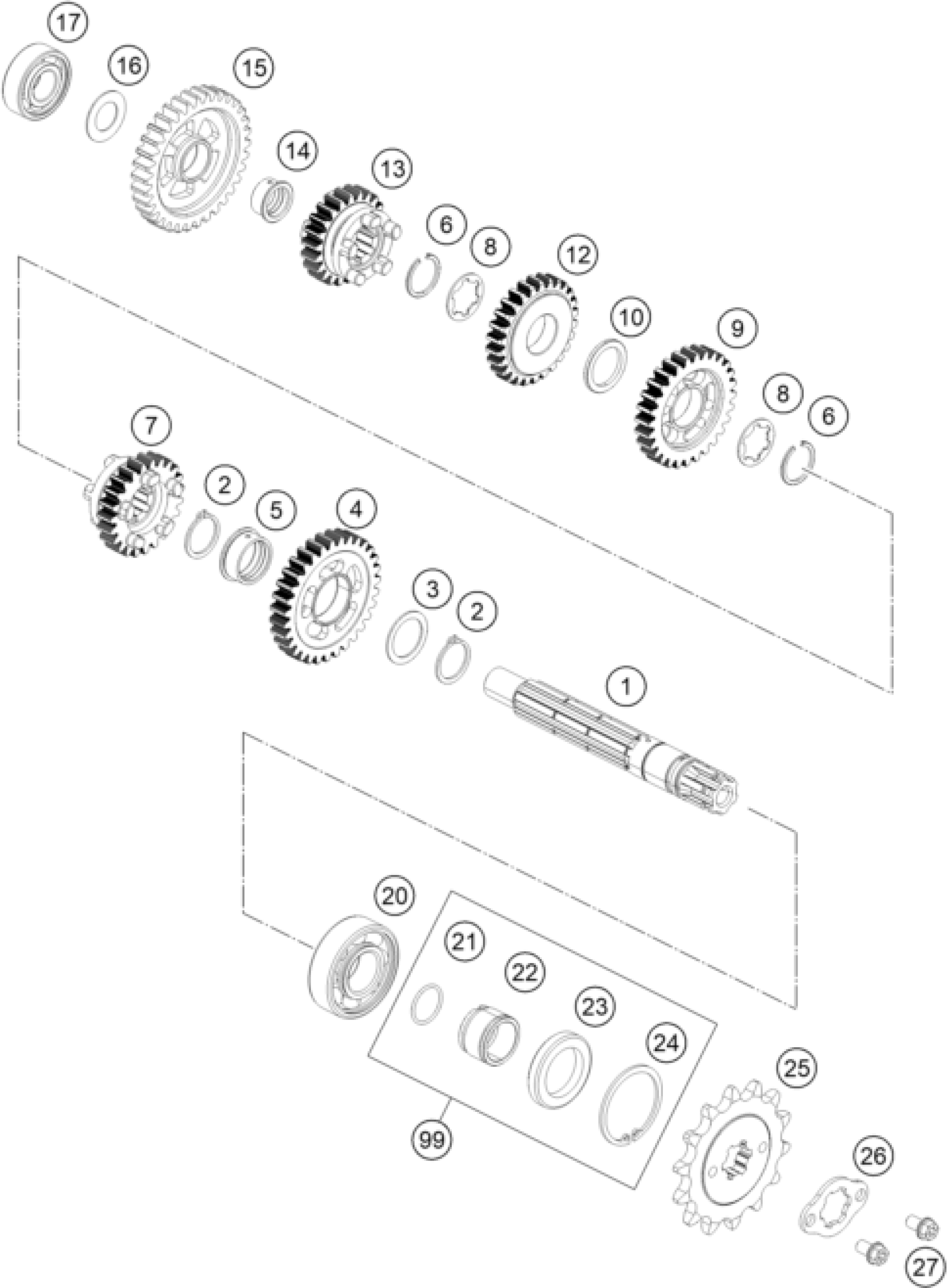

KTM 125 Duke, orange 2018 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Shaft Output-Plug

93533010000

$19.99

2

CIRCLIP 20X1,2

J471020121

$1.49

3

WASHER 20,2X27X1

90133034000

$1.49

4

gear driven second

90633012100

Unavailable

5

BUSHING

90133001003

$4.11

6

CIRCLIP 20X1,2

J471020122

$1.49

7

gear driven fifth

90133015100

Unavailable

8

WASHER

90633033000

$1.49

9

COUNTERWHEEL 3. GEAR

90133013000

Unavailable

10

THRUST WASHER

90633001007

Unavailable

12

COUNTERWHEEL 4. GEAR

90133014000

$18.50

13

COUNTERWHEEL 6. GEAR

90133016000

Unavailable

14

BUSHING

90133001009

$3.08

15

COUNTERWHEEL 1. GEAR

90133011000

$22.81

16

Washer 15X26X0,8

J125150006

$1.49

17

BALL BEARING 15X35X11

90130004003

$7.56

20

BALL BEARING 6204-Z/HN3

J625062041

$11.12

21

O-RING 17,5X1,5

J770017515

$1.49

22

COLLAR SPROCKET

90133030000

$5.23

23

OIL SEAL OUTPUT SHAFT

90230077000

$4.11

24

CIRCLIP 37X1,5

J472037150

$1.49

25

SPROCKET 14T.

90133029014

$11.87

26

BRACKET SPROCKET

90133029001

Unavailable

27

HH COLLAR SCREW M6X10 WS10

J025060106

Unavailable

99

COUNTER SHAFT REP.KIT125DUKE

00050000982

Unavailable
