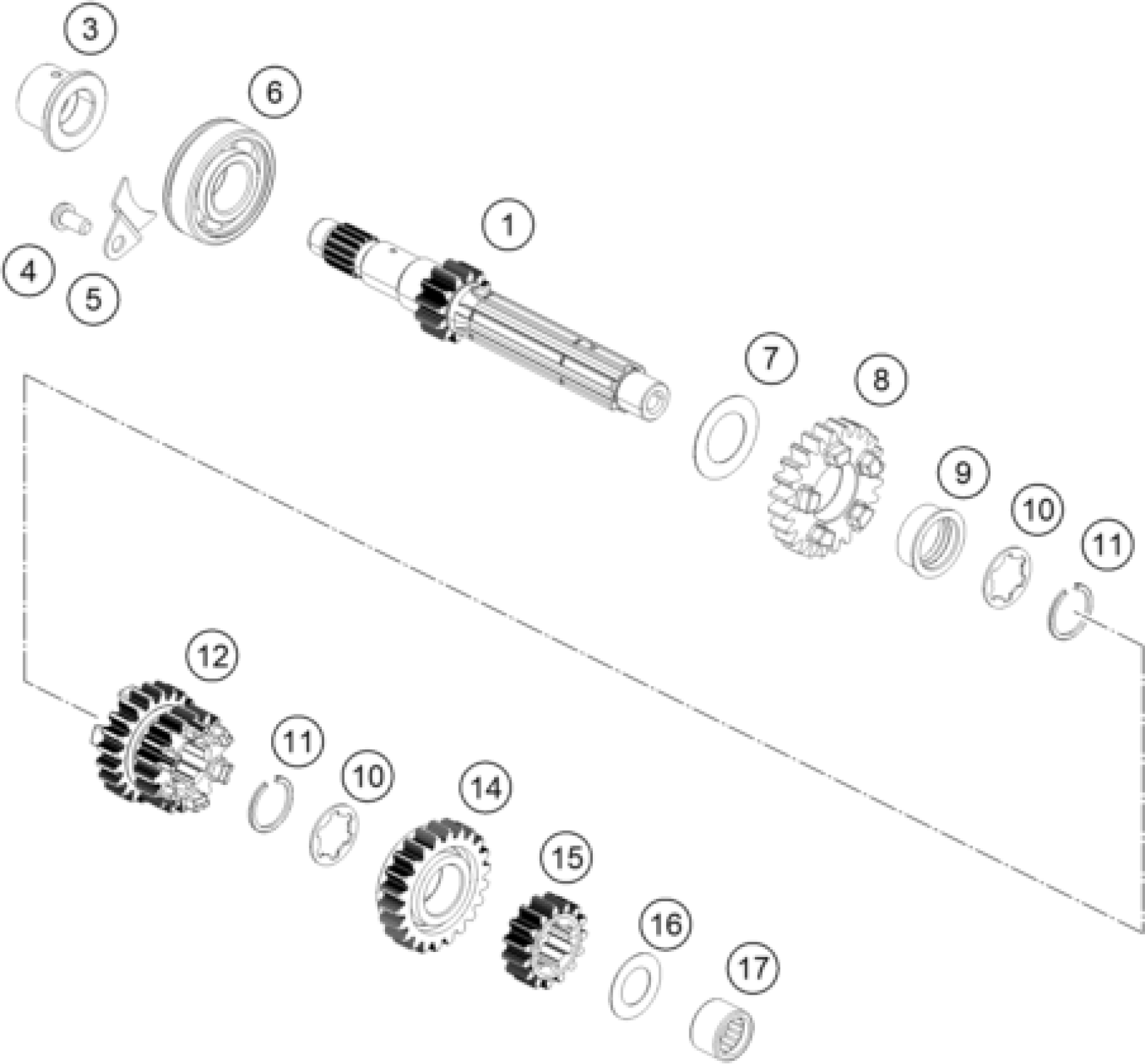

KTM 125 Duke, orange 2018 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT CPL.

90633001000

$38.14

4

SCREW PAN CROSS M6X12 PH SS

J005060123S

$1.49

5

LOCK WASHER F.BEARING DRIVE

90130004002

$1.49

6

GROOVED BALL BEARING 6204

J625062040

$10.56

7

WASHER 20X33X0,5

90133032000

$1.49

8

DRIVE WHEEL 6. GEAR

90133006000

$16.07

9

BUSHING

90133001003

$4.11

10

WASHER

90633033000

$1.49

11

CIRCLIP 20X1,2

J471020122

$1.49

12

DRIVE WHEEL 3. G./4.G.

90133003000

$32.72

14

DRIVE WHEEL 5. GEAR

90133005000

$22.06

15

DRIVE WHEEL 2. GEAR

90633002000

$9.72

16

THRUST WASHER

90633001004

$1.49

17

NEEDLE BEAR. HK1514RS 15X21X14

J618152114

$6.07

3

Collar

93533001011

$5.98
