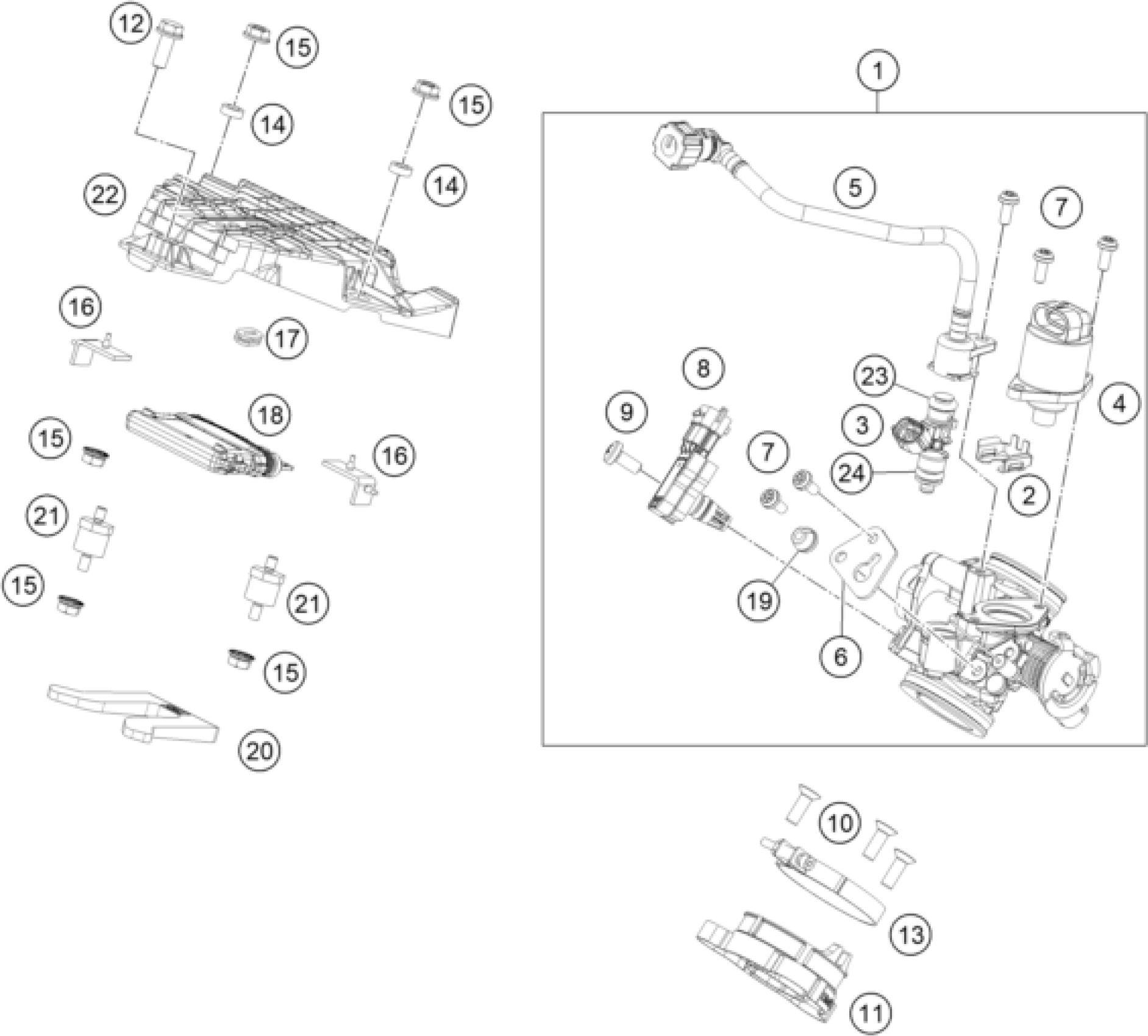

KTM 125 Duke, orange 2018 THROTTLE BODY Diagram

#

Description

Price

1

Throttle body

93041001000

Unavailable

2

INJECTOR CLIP

90141001001

Unavailable

3

Injector

93541023000

Unavailable

4

IDLE ADJUSTER

90641072000

Unavailable

5

Injector upper part with hose

93141013000

Unavailable

6

Cable bracket

93241023002

Unavailable

7

SPECIAL SCREW M5X12

90141023005

Unavailable

8

Pressure sensor

93041085000

Unavailable

9

SPECIAL SCREW M6X14

90141071001

Unavailable

10

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

11

CONN. FLANGE CYLINDER-THR.BODY

90141002000

Unavailable

13

CLAMP

90641002010

Unavailable

14

Sleeve

93041029020

Unavailable

15

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

16

rubber band, ECU

93841036000

Unavailable

17

DAMPER ECU

93541034000

Unavailable

18

Control unit

93041031000

Unavailable

20

Rubber cowl pad

93041030100

Unavailable

21

Bump rubber ECU support

93011038000

Unavailable

12

Hexagonal bolt M6x14

J933060146

Unavailable

22

Control unit bracket

93041029000

Unavailable

19

GROMMET

90141023003

Unavailable

23

O-ring

55641023020

Unavailable

24

O-ring

55641023010

Unavailable
