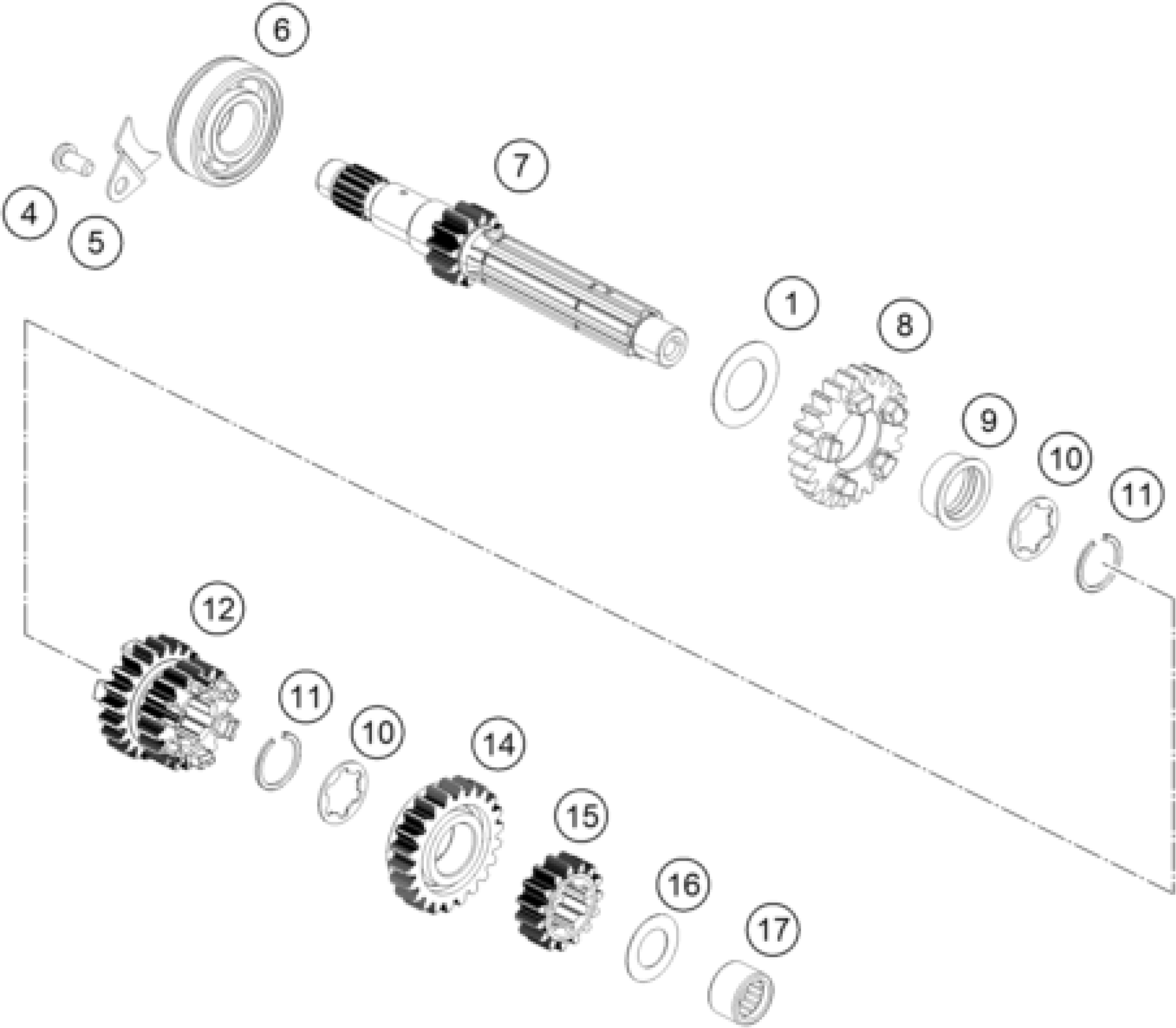

KTM 125 DUKE ORANGE 2017 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT CPL.

90633001000

Unavailable

4

FLAT HEAD SCREW M6X12 PH

J005060123

Unavailable

5

LOCK WASHER F.BEARING DRIVE

90130004002

Unavailable

6

GROOVED BALL BEARING 6204

J625062040

Unavailable

7

WASHER 20X33X0,5

90133032000

Unavailable

8

DRIVE WHEEL 6. GEAR

90133006000

Unavailable

9

BUSHING

90133001003

Unavailable

10

WASHER

90633033000

Unavailable

11

CIRCLIP 20X1,2

J471020122

Unavailable

12

DRIVE WHEEL 3. G./4.G.

90133003000

Unavailable

14

DRIVE WHEEL 5. GEAR

90133005000

Unavailable

15

DRIVE WHEEL 2. GEAR

90633002000

Unavailable

16

THRUST WASHER

90633001004

Unavailable

17

NEEDLE BEAR. HK1514RS 15X21X14

J618152114

Unavailable
