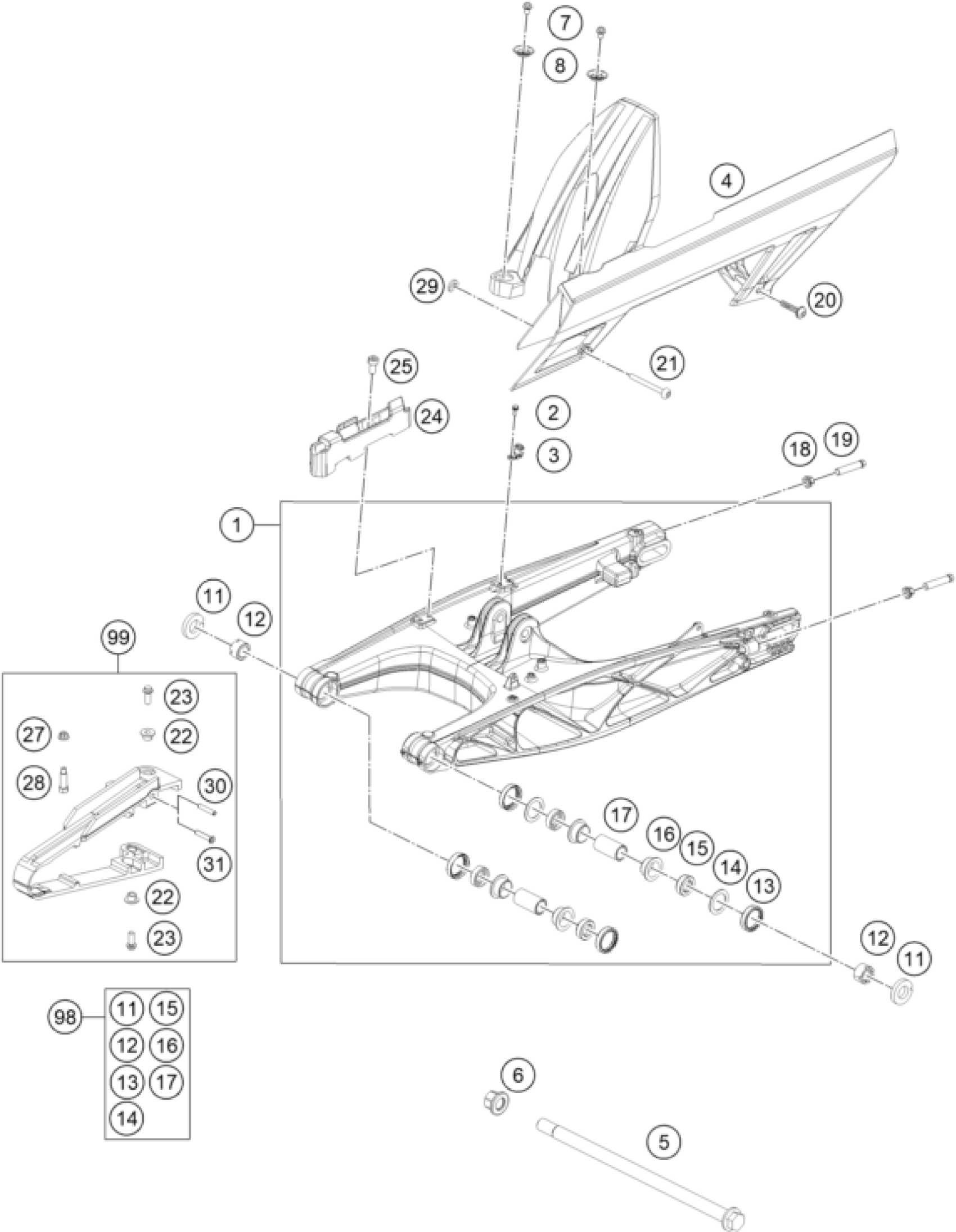

KTM 125 DUKE ORANGE 2017 SWING ARM Diagram

#

Description

Price

1

SWING ARM CPL.

90504030044

Unavailable

5

Shaft swing arm L=299mm

90104037000

Unavailable

6

FLANGED NUT M14X1.5

90104038000

Unavailable

7

HH COLLAR SCREW M6X8 SW8

J025060083

Unavailable

8

Supporting shell

93004051000

Unavailable

12

swingarm adjusting ring

90104046000

Unavailable

13

OIL SEAL RING 25X32X7

90104034001

Unavailable

14

Thrust washer 22.2x31.7x1

90104036000

Unavailable

15

cup for radial shaft seal

90104034000

Unavailable

16

Igus plain bearing

90104031000

Unavailable

17

sleeve bushing 15.1x20x38

90104032000

Unavailable

18

flanged hex nut M10x1.25 WS13

90104010002

Unavailable

19

BOLT HEX M10X1.25X50 WS10

90104040000

Unavailable

20

Plastic screw 6x30

93004064000

Unavailable

21

hexagon socket screw M5X0.8X55

93004065000

Unavailable

22

chain slider bushing

90604062000

Unavailable

23

HH COLLAR SCREW M6X16 SW8

J025060169

Unavailable

25

AH SCREW M5X10

J912050101

Unavailable

27

HH COLLAR NUT

90204060001

Unavailable

29

WASHER CHAIN SLIDING GUARD

90504067000

Unavailable

30

SLEEVE CHAIN GUARD

90104070020

Unavailable

31

SLEEVE CHAIN GUARD

90904070020

Unavailable

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

99

CHAIN GUARD KIT 125/200

90104066310

Unavailable

11

Special wahser

93004042000

Unavailable

24

Support

93013047000

Unavailable

4

Chain cover

93004060100

Unavailable

28

screw M5x0.8x30

90104040100

Unavailable

3

brake hose guide

90113047000

Unavailable

2

HH COLLAR SCREW M5X13 SW8

J011050133

Unavailable
