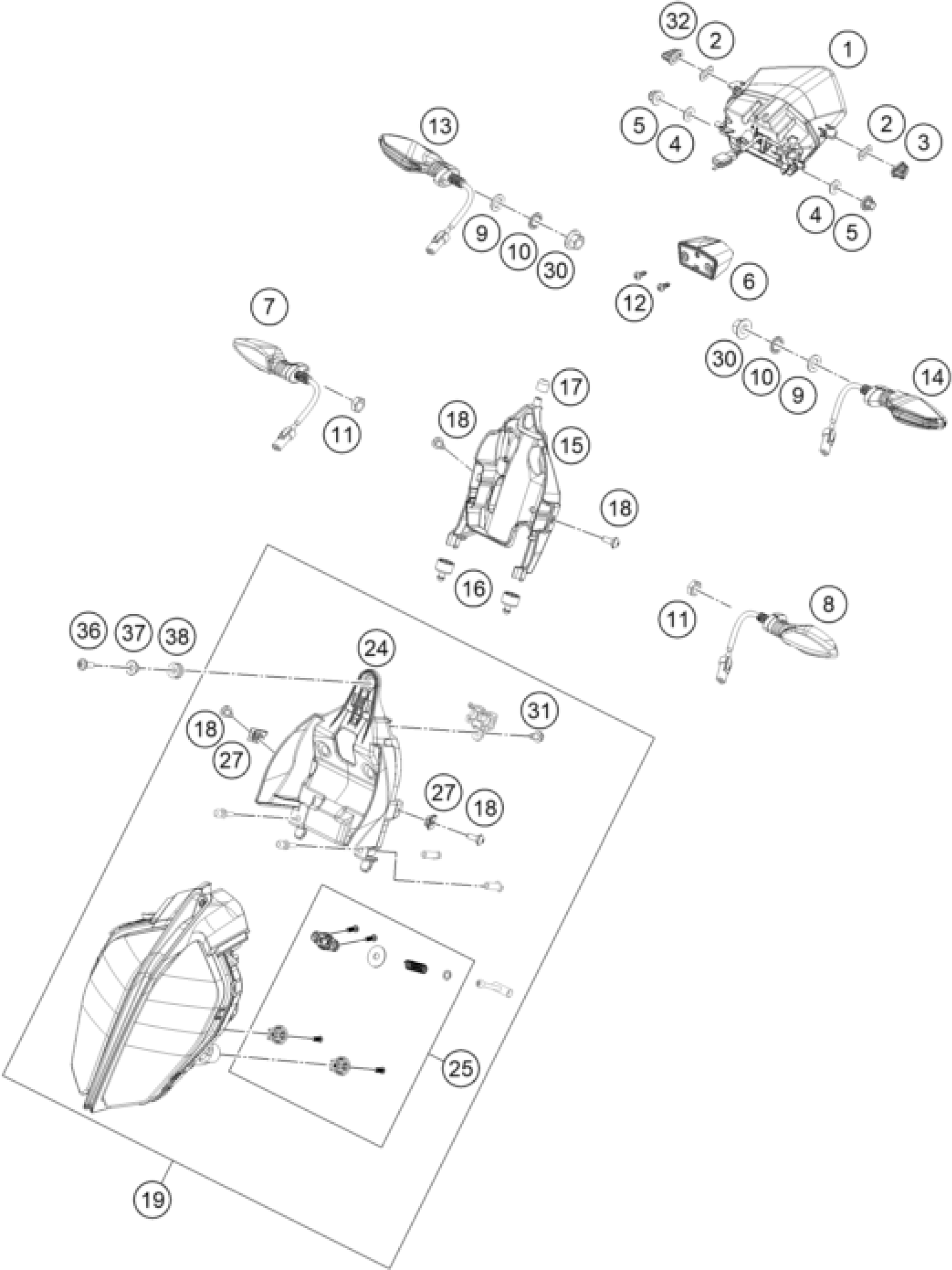

KTM 125 DUKE ORANGE 2017 LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp tail MY17

93014040100

$118.36

2

Washer

93014040040

$1.49

3

Rubber grommet tail light left

93014040020

$1.49

4

Washer

93014040030

$1.49

5

Rubber bushing

93014040010

$1.49

6

LICENSE PLATE ILLUMINATION

90114047000

$26.55

7

Indicator front rh

93014026000

$37.39

8

Indicator front lh

93014025000

Unavailable

9

WASHER PLAIN 10,5

J125100003

$1.49

10

TOOTHED WASHER M10

J797100003

$1.49

11

Nut hex thin-M10x1.25

J934100006

$1.49

12

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

$1.49

16

Rubber bushing

93014015000

$1.49

17

Rubber bushing

93014014000

$1.49

19

LED head lamp assly duke MY17

93014001044

Unavailable

13

FLASHER REAR R/S

90514036100

$43.47

14

FLASHER REAR L/S

90514035100

$46.74

38

Rubber bushing

93014017000

$1.49

27

Range change metal nut M6

93008084010

$1.49

15

Support

93014013000

$8.78

24

Holder headlamp LED

93014019100

$19.53

31

Screw M6X1X9

93008020060

$2.05

18

Screw M6X1X13

93008040000

$1.49

36

AH SCREW M6X1X20

90508006003

$4.11

37

Collar head lamp holder MTG

93014018100

$1.49

25

Kit LED lamp Bush

93014099000

$5.23

30

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

32

Rubber grommet tail light righ

93014049000

$1.49
